YR05159 Medical Ecg Machine 12 derivations 6 Channel
YR05159 Medical Ecg Machine 12 derivations 6 Channel — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The YR05159 Medical ECG Machine 12 Lead 6 Channel is an advanced diagnostic tool designed to simultaneously capture 12-lead ECG signals and print ECG waveforms using a state-of-the-art thermal printing system. This 6-channel ECG machine is essential in detecting abnormal heart rhythms and investigating the causes of chest pain. The heart’s electrical activities, which lead to muscle contractions, are meticulously recorded by this device, providing critical insights into cardiovascular health.
Market Price Overview
The YR05159 ECG Machine is competitively priced in the market, with an average price range of $1,500 to $2,500, depending on the supplier and additional features. Prices may vary slightly based on region and warranty options, but investing in this machine ensures reliable performance and accuracy.
Frequently Asked Questions
What makes the YR05159 different from other ECG machines? The YR05159 offers simultaneous 12-lead acquisition and features a user-friendly 7-inch graphic touchscreen.
Is the ECG analysis software included? Yes, the machine supports ECG analysis capabilities, enhancing diagnostic efficiency.
Pros and Cons
Pros: The device offers excellent signal quality with low patient current leakage and automatic baseline drift correction. It is compact, portable, and equipped with a high-resolution touchscreen.
Cons: Some users may find the learning curve for the software a bit steep without prior ECG experience.
Field Application
The YR05159 is used in hospitals, clinics, and emergency settings where rapid and accurate ECG readings are essential. This machine is particularly beneficial in cardiac units and during medical emergencies, aiding in prompt diagnosis and treatment planning.
Recommendations
For optimal performance, ensure regular calibration and maintenance checks. It’s recommended to use authorized thermal paper and adhere to the power specifications to prevent operational issues. Sign up for Kalstein Plus for streamlined ordering and support.
Features
- Large 7” touchscreen display
- Supports detailed ECG analysis
- Thermal printing system for fast results
- Automatic baseline drift correction
- High signal quality with low noise levels
- Defibrillator protection circuit
Technical Specifications
| Model | YR05159 |
| Elements | Specification |
| Characteristics | 7 ″ screen, touch screen Supports Ecg analysis capabilities |
| Guide | 12 standard conductors |
| Prospect acquisition | Synchronously 12 leads |
| Input circuit | Floating; Defibrillator protection circuit |
| Input impedance | ≥50MΩ |
| Input circuit current | ≤0.0.05μA |
| Record mode | Automatic: 3CH × 4 + 1R, 3CH × 4, 3CHx2 + 2CHx3,3CHx2 + 2CHx3 + 1R, 6CHX2; Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R; Rhythm: any selectable lead. |
| Filter | EMG filter: 25Hz / 30Hz / 40Hz / 75Hz / 100Hz / 150Hz DFT filter: 0.05Hz / 0.15Hz AC filter: 50Hz / 60Hz |
| CMRR | > 100dB |
| Patient current leak | <10μA |
| Input circuit current | <0.05 µA |
| Frequent response | 0.05Hz ~ 150Hz (-3dB) |
| Sensitivity | 2.5mm / mV, 5mm / mV, 10mm / mV, 20mm / mV |
| Anti-baseline drift | Automatic |
| Constant time | ≥3.2s |
| Noise level | <15μVp-p |
| Paper speed | 12.5mm / s, 25mm / s, 50mm / s |
| Recording mode | Thermal printing system |
| Paper specification | Sun-7031: 80mm x 20m paper roll Sun-7062: 120mm x 20m paper roll |
| LCD screen | 7 ″ graphic LCD |
| Safety rating | IEC60601-1 class I, type CF |
| Power supply | AC: 100 ~ 240V, 50 / 60Hz, 30VA ~ 100VA |
| Fuse | AC220V ± 10% 2 * Φ5 × 20mm, T2A / 250V AC time delay |
Technical specifications
| Dimensions | L 31 × W 27 × H 17 cm |
|---|---|
| Weight | 3 kg |
| Manufacturer | Kalstein |

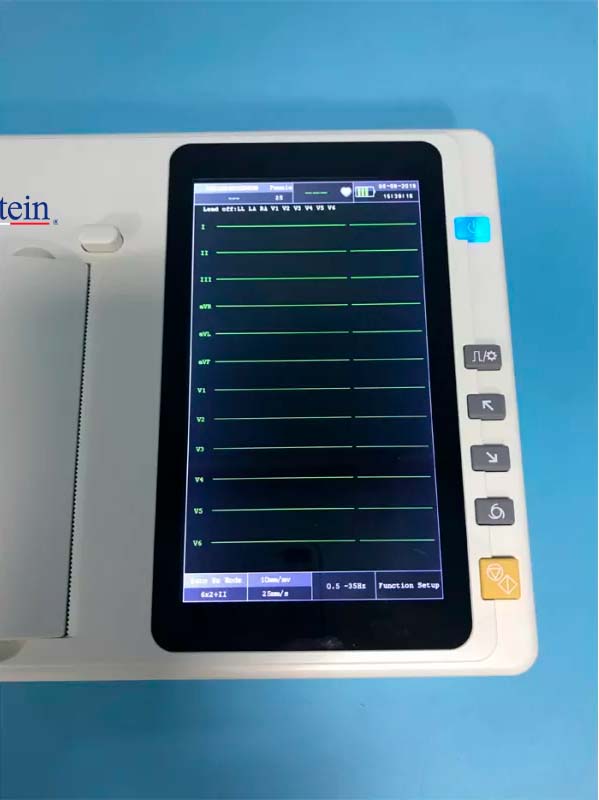

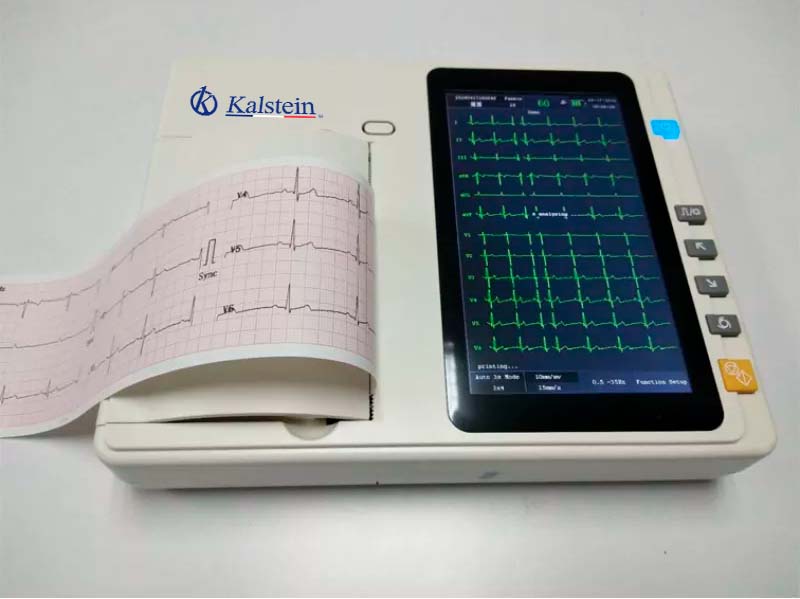

Image gallery
Frequently asked questions
How to know the prices of YR05159 Medical Ecg Machine 12 derivations 6 Channel?
To know the price of YR05159 Medical Ecg Machine 12 derivations 6 Channel, please send us an email with your request through the contact form AQUI.
What are the delivery times for YR05159 Medical Ecg Machine 12 derivations 6 Channel?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of YR05159 Medical Ecg Machine 12 derivations 6 Channel?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for YR05159 Medical Ecg Machine 12 derivations 6 Channel?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for YR05159 Medical Ecg Machine 12 derivations 6 Channel?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
