Description

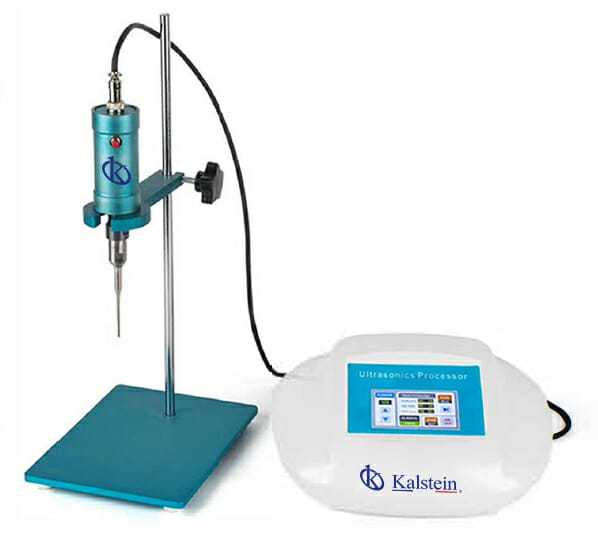

The Ultrasonic Homogenizer Processor Sonicator for Liquid Processing YR05829 // YR05831 is an innovative and multifaceted instrument meticulously designed for laboratories that demand efficient processing of both solid and liquid samples. This advanced ultrasonic processor features an intelligent and fully digital ultrasonic generator that induces cavitation in liquids, making it optimal for applications such as emulsification, separation, homogenization, and the extraction of animal, plant, and viral cells. With a compact design coupled with modern functionalities like a 3.5-inch touch screen and options for manual or automatic operation, this sonicator is a valuable asset in fields including biochemistry, microbiology, and medicinal chemistry.
Market Price
The Ultrasonic Processor Homogenizer YR05829 // YR05831 is positioned in the market with a price ranging between $190 and $600 USD, based on the chosen configuration and optional accessories like varying probe sizes and temperature controllers. This makes it an economically viable and effective solution for laboratories demanding high-quality equipment for sample processing.
Frequently Asked Questions
- What applications is this ultrasonic processor best suited for?
Ideal for emulsification, cell extraction, nanoparticle dispersion, and accelerating chemical reactions. - Is it safe for sensitive samples?
Yes, precise temperature and ultrasonic power control ensures that delicate samples are not exposed to thermal or mechanical damage.
Advantages and Disadvantages
The primary advantages of the YR05829 // YR05831 include its capability to handle small to medium sample sizes, space-saving compact design, and the stability provided by its intelligent ultrasonic generator. Furthermore, its ability to function in both continuous and intermittent modes enhances its versatility. However, laboratories with large-volume processing demands may find the capacity of the smaller model insufficient.
Field Use
This ultrasonic homogenizer finds practical applications in biotechnological research for cell disruption and protein extraction, as well as in material chemistry labs for nanoparticle dispersion. With the ability to process volumes from 0.1 ml to 300 ml, it is an excellent choice for quality control laboratories and water analysis, where meticulous sample pretreatment is essential for ensuring accurate results.
Recommendations
To maximize performance and longevity of the YR05829 // YR05831, regular maintenance is recommended, including cleansing the ultrasonic probe and monitoring the temperature control system. Should you be interested in acquiring this equipment or need more information about its features, we invite you to request a quote or automatically generate one through our Kalstein Plus platform. Elevate your processing quality with this sophisticated liquid processing sonicator.
Features
- Automatic and manual operating modes.
- Equipped with a 3.5-inch high-definition touch screen.
- Ultrasonic power adjustable from 5W to 400W.
- Frequency range: 19-25 KHz.
- Duty ratio adjustable from 1% to 99%.
- Capacity to handle 0.1 ml to 300 ml sample volumes.
- Optional temperature control probe available.
Technical Specifications
| Models | YR05829 | YR05830 | YR05831 |
| Operating mode | Automatic, Manual | ||
| Screen size | 3.5 inch high definition large touch screen control | ||
| Ultrasonic power(W) | 5-150 | 5-250 | 5-400 |
| Frequency(KHz) | 19-25 | ||
| Duty ratio(%) | 1~99% | ||
| Handling capacity(ml) | 0.1-50 | 0.5-100 | 0.5-300 |
| Ultrasonic time(s/min) | 1s-99m-99h | ||
| Random horn(Φ mm) | 2 | 3 | 6 |
| Temperature control | Temperature probe(Optional) | ||
| Power source | 220V/ 50Hz(110V Can be customized) | ||
| Optional horn(Φ mm) | 2,3 | 2,3,6 | 3,6,8 |
| Mainframe Weight(kg) | 4.2 | 4.5 | |
| Total package weight(kg) | 5.8 | 6.2 | 6.5 |
