Description

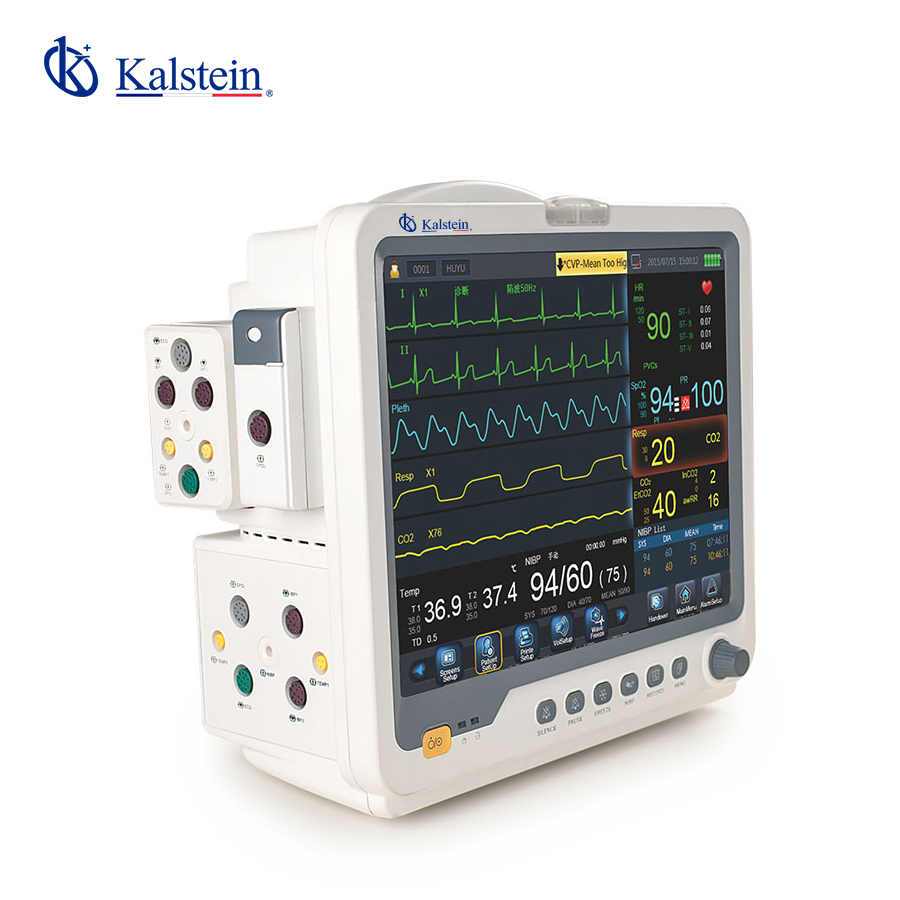

The Multi-parameter patient monitor YR02178 // YR02179 offers critical healthcare environments like Operating Theatres (OT) and Intensive Care Units (ICU) precise monitoring solutions. With its semi-modular parameter capabilities and optional touch screen interfaces and parameter expansions, including Masimo/Nellcor SpO2, this monitor is designed for versatility and ease of use. It includes standard parameters like ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, combined with a high-resolution LCD screen, making it a reliable choice for medical professionals. Optional features, such as a thermal recorder and wall mount, further enhance its adaptability, ensuring effective and efficient monitoring.
Market Price
The market price for multi-parameter patient monitors can vary widely. For a high-quality model like the YR02178 // YR02179, the average price range typically falls between $2,600 and $3,400. This price reflects the advanced technology and precision offered by the monitoring system, making it a smart investment for healthcare facilities seeking excellence in patient care. To get an exact pricing and personalized quote, potential buyers are encouraged to use the Kalstein Plus platform for automatic quote generation.
Frequently Asked Questions
Q: Is the monitor suitable for pediatric patients?
A: Yes, the YR02178 // YR02179 is designed to accommodate neonatal and pediatric patients, with adjusted HR and respiration rate ranges to meet diverse patient needs.
Q: What optional features are available?
A: Options include touch screen, Dual-IBP, AG, C.O., BIS, and enhanced connectivity options like Masimo/Nellcor SpO2.
Advantages and Disadvantages
The YR02178 // YR02179 excels in versatility, supporting a broad range of parameters and optional features for customized configurations tailored to specific medical needs. Its robust design and intuitive interface are notable advantages. However, some users may find the initial setup complex if unfamiliar with advanced medical equipment.
Product Use in the Field
In practical use, the YR02178 // YR02179 stands out in high-pressure environments like ICUs, where its reliable monitoring and alarm systems play a crucial role in patient safety. Mobility options such as trolleys and wall mounts make it adaptable to emergency response scenarios, offering continuous monitoring across various settings.
Recommendations
To ensure optimal performance and longevity, regular maintenance checks and software updates are recommended. Following operational guidelines and user manuals will maximize the benefits, ensuring rigorous patient monitoring standards are upheld.
Features
- High-resolution LCD screen
- 5-lead ECG, RESP, Dual-Temp, SpO2, and NIBP standard configuration
- Optional features for enhanced functionality
- Versatile mounting options
- Precision alarm systems
Technical Specifications
| Model | YR02178 | YR02179 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) | |
| Connection method | I, II, III,AVR,AVL,AVF,V | ||
| Lead Mode | 3 Leads (RA,LA,LL) | ||
| Connection method | I, II,III | ||
| Waveform | 1ch | ||
| Gain | x250, x500, x1000, x2000 | ||
| HR Range | Adult: 15~300bpm | ||
| Neo/Ped | 15~350bpm | ||
| Accuracy | ±1% or ±1bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200(uVp-p) | ||
| Differential input impedance | ≥5MΩ | ||
| ST segment Monitoring Range | |||
| Measure Range | -2.0~+2.0mV | ||
| Measure Accuracy | -0.8mV~+0.8mV | ||
|
Heart Rate
|
Measuring range | 40~240bpm | |
| Accuracy | ±3bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200UVp-p | ||
|
Respiration
|
Method | Impedance between R-F(RA-LL) | |
| Differential Input Impedance | >2.5MΩ | ||
| Measuring Impedance Range | 0.3~3.0 MΩ | ||
| Base line Impedance Range | 200~4000Ω | ||
| Bandwidth | 0.1~2.5Hz | ||
| Respiration Rate | Adult: 7~120BrPM | ||
| Neo/Ped | 7~150BrPM | ||
| Resolution | 1 BrPM | ||
| Accuracy | ±2 BrPM | ||
| Alarm | 10~40S | ||
|
NIBP
|
Method | Oscillometric | |
| Mode | Manual/Auto/STAT | ||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | ||
| Measuring Period in STAT Mode | 5 Min | ||
| Pulse Rate Range | 40~240bpm | ||
| Alarm Type | SYS, DIA, MEAN | ||
| Resolution | |||
| Pressure | 1mmHg | ||
| Accuracy | Maximum Mean error: 5mmHg | ||
| Maximum Standard deviation | 8mmHg | ||
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse | |
| Measuring range | 0~100% | ||
| Resolution | 1% | ||
| Accuracy | 70~99% (±2%) | ||
| Alarm system | Audio-video alarm | ||
| Pulse rate range | 0~300bpm | ||
|
TEMP
|
Channel | 2 | |
| Measuring and Alarm Range | 0~50ºC | ||
| Resolution | 0.1ºC | ||
| Accuracy | 0.1ºC | ||
| Actualization interval | about 1 Second. | ||
| Average Time Constant | <10 Second. | ||
