Grating Spectrophotometer YR05495
Grating Spectrophotometer YR05495 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The YR05495 Grating Spectrophotometer from Kalstein is an indispensable tool for industries where precise color measurement is essential. With cutting-edge 1000-line precision grating technology and a silicon photodiode array sensor, it provides stable readings within the visible spectrum (400-700 nm). This ensures superior accuracy across various applications, including electronics, textiles, and automotive industries. Designed to adapt to diverse sample sizes, it features three measurement apertures (φ8 mm, φ4 mm, 1×3 mm) and supports both SCI and SCE measurements, thus catering to detailed color analysis demands.
Market Price
The market price for a spectrophotometer of this caliber ranges between $4,700 and $5,500 USD. This competitive price makes the YR05495 an attractive option for companies aiming to enhance color control processes efficiently. For precise pricing tailored to your needs, we encourage you to request a personalized quote or generate one instantly through Kalstein Plus, ensuring a seamless purchasing experience.
Frequently Asked Questions
- What are the ideal applications for the YR05495?
The YR05495 spectrophotometer is perfect for sectors such as plastics, textiles, and ceramics, and excels in measuring fluorescent samples. - Can it connect to a PC?
Yes, it provides full compatibility with color management software on PCs for detailed data analysis. - How many samples can it store?
It can store up to 1,000 standards and 20,000 samples for extensive data tracking.
Advantages and Disadvantages
The YR05495 boasts high precision with a standard deviation of ΔE*ab 0.03, adaptability in different measurement modes, and user-friendly USB connectivity for data transfer. However, its measurement scope is limited to the visible spectrum (400-700 nm), which may restrict use in applications requiring broader wavelength analysis.
Product Use in the Field
This spectrophotometer is widely employed for quality assurance in industries demanding precise color fidelity, such as coatings and paints. Its versatile apertures and SCI/SCE capabilities support comprehensive color evaluations, helping maintain consistent product quality. It is also utilized for color assessment in traffic signals and safety equipment.
Recommendations
Ensure optimal functionality of the YR05495 by performing frequent calibrations and maintaining it in clean conditions. Its long-lasting lithium-ion battery supports up to 6,000 measurements over 8 hours, so regular recharging is advisable. Explore your options by requesting a tailored quote through Kalstein Plus and see how the YR05495 can enhance your color management strategy.
Features
- Advanced grating technology for highly accurate color measurement.
- Adaptable measurement apertures for various sample sizes.
- Dual optical structure supporting SCI/SCE modes.

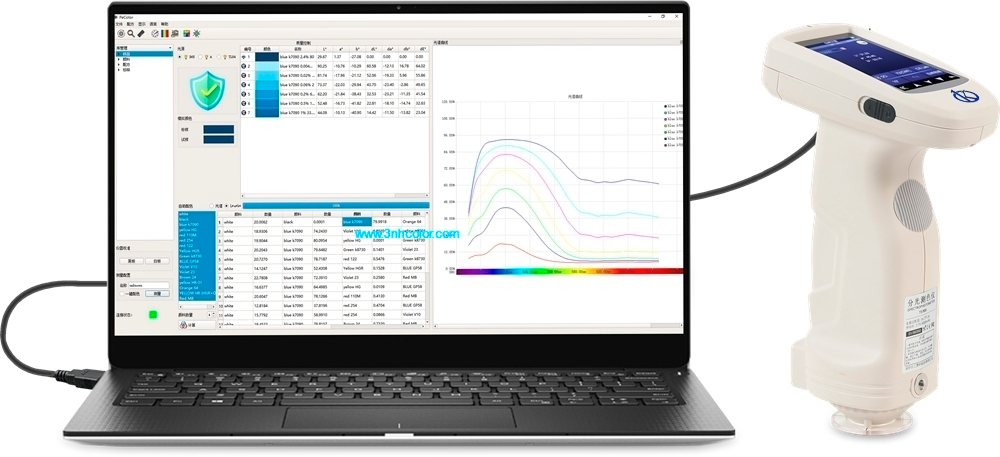

- PC compatibility for comprehensive data analysis.
Technical Specifications
| Models | YR05495 |
| Optical Geometry | Reflect: di:8°, de:8°(diffuse illumination, 8 degree viewing angle) |
| SCI (mirror component included)/SCE (mirror component excluded) ; UV light source excluded | |
| Complies with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | A custom aperture, it is used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for the measurement of fluorescent samples . |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat grid |
| Sensor | Silicon photodiode array (dual row 40 groups) |
| Wave Range | 400~700nm |
| Wavelength Range | 10nm |
| Semi-Bandwidth | 10nm |
| Medium Reflectance Range | 0-200% |
| Measurement Aperture | A customized aperture: MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Munsell (C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
| Other Color Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925，ASTM 313), | |
| Stain fastness, color fastness, color intensity , opacity, | |
| 8th Brightness, | |
| Observer Angle | 2°/10° |
| Illuminator | D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) |
| Data Displayed | Spectrogram/Values, Sample Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Compensation |
| Measuring Time | About 1.5s (measure SCI and SCE about 3.2s) |
| Repeatability | Spectral Reflectance: MAV/SCI, Standard Deviation within 0.1% (400nm to 700nm: within 0.2%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.04 (when a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Error Between Instruments | AVM/SCI, Within ΔE*ab 0.2 |
| (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single measurement, average measurement (2-99 times) |
| Location Method | Camera location, stabilizer cross position |
| Dimension | L*An*Al=129X76X217mm |
| Weight | about 600g |
| Power Supply | Li-ion battery, 3.7 V, 5,000 mAh, 6,000 measurements in 8 hours |
| Illuminant Lifespan | 5 years, more than 3 million times detected |
| Data Displayed | 3.5-inch TFT color LCD, capacitive touch screen |
| Data Port | USB, |
| Data Storage | 1000 standard pieces, sample 20000 pieces |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensation), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensation) |
| Standard Accessory | Power adapter, user guide, PC software (download from office website), USB cable, black and white calibration well, protective cover, wrist strap, one aperture (8mm or 4mm) |
| Optional Accessory | Micro printer, dust proof box |
| Notes | Specifications are subject to change without notice. |
Technical specifications
| Dimensions | L 28 × W 13 × H 30 cm |
|---|---|
| Weight | 2 kg |
| Manufacturer | Kalstein |
