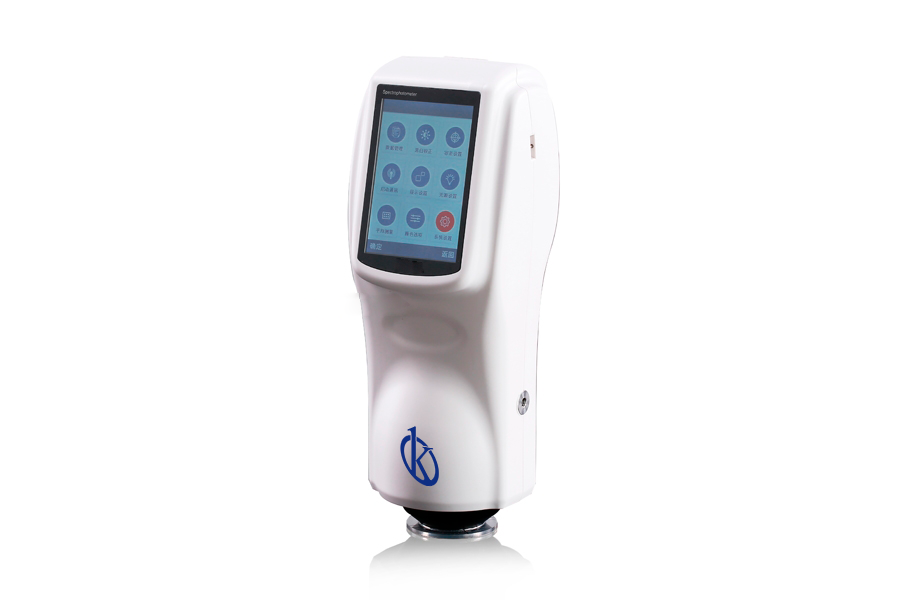

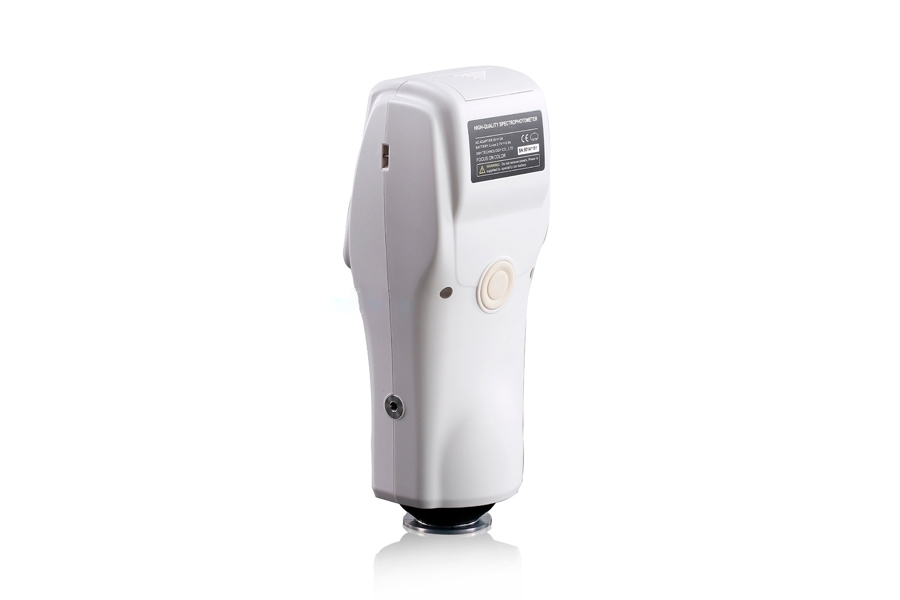

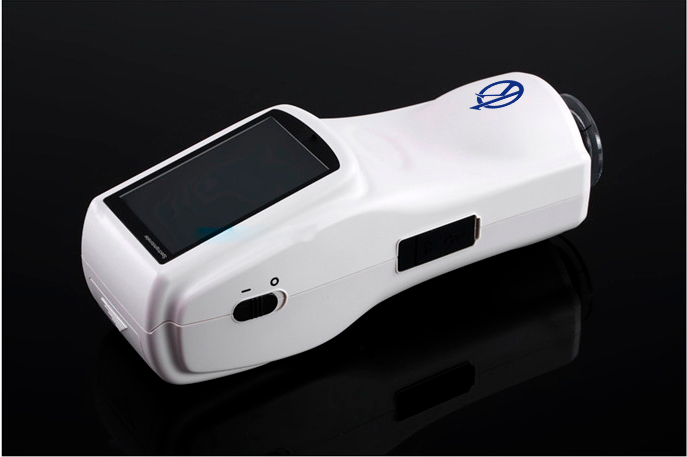

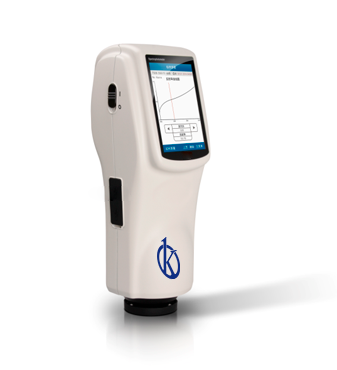

Handheld Color Spectrophotometer YR05497
Handheld Color Spectrophotometer YR05497 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Handheld Color Spectrophotometer YR05497 is the optimal tool for precise color management in diverse industries such as plastics, paints, textiles, food, and cosmetics. Featuring a 45/0 geometric optical structure and compliant with CIE and GB/T standards, this device guarantees accurate and consistent measurements. With a lightweight design of just 600 grams and a user-friendly 3.5-inch touchscreen, it's ideal for both laboratory and field use. The device has a remarkable precision of ΔE*ab 0.04 and can store up to 15,000 samples, making it indispensable for thorough color analysis and quality control.
Market Price
The YR05497 is priced competitively, typically ranging from $5,500 to $5,900 USD, a wise investment for companies eager to enhance their color quality control processes. Request a personalized quote through Kalstein Plus or generate one automatically for a seamless and efficient purchase experience.
Frequently Asked Questions
- What industries benefit most from the YR05497?
This device serves crucial roles in sectors like plastics, paints, inks, textiles, and is effective in analyzing fluorescent sample colors. - Does it offer PC connectivity?
Yes, the YR05497 comes with advanced software that integrates with a PC, expanding its functionalities and simplifying data management. - How extensive is its data storage?
The spectrophotometer accommodates 1,000 standards and 15,000 samples, ensuring organized data management for efficient analysis.
Advantages and Disadvantages
The YR05497 excels in precision with a color analysis deviation of just ΔE*ab 0.04, and its ergonomic design enhances portability. However, its wavelength range of 400-700 nm restricts use to the visible spectrum, which might not suit applications needing broader measurement bands.
Field Applications
Widely used in quality control, particularly in plastics, paints, and textiles, the YR05497 ensures color consistency throughout production and laboratory environments. Its precision and advanced software allow for real-time color management adjustments, ensuring superior end-product quality.
Recommendations
To ensure optimal performance, regular calibrations and maintenance in clean environments are advised. Its lithium-ion battery supports up to 5,000 measurements over 8 hours, necessitating consistent charging. For tailored insight into improving your color control efficiency, request a personalized quote or create one instantly via Kalstein Plus.
Features
- Geometric Optical Structure: 45/0 for precision
- Wavelength Range: 400 to 700 nm
- High Storage Capacity: 15,000 samples
- USB and RS232 Connectivity
- Portable and lightweight: 600 g
- Intuitive Design: 3.5-inch touchscreen
- International Standards Compliance: CIE, GB/T
Technical Specifications
| Model | YR05497 |
| Illuminating/Viewing Method | 45°/0 (45° ring illuminating, 0° viewing) Comply to standard CIE No. 15, GB/T3978, GB2893, GB/T18833 |
| Integrating Sphere Size | Φ58mm |

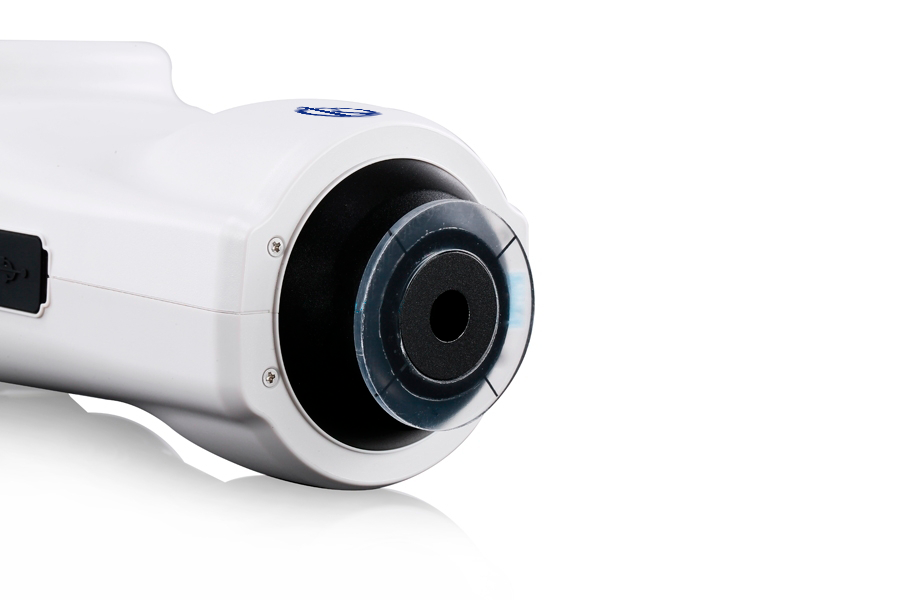

| Measuring Aperture | Φ8mm |
| Observer | 2°/10° |
| Repetitive Error | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.) |
| Inter-Instrument Error | ΔE*ab≤0.2 (Average value of measuring the 12 tint plates of BCRA series II) |
| Wavelength Range | 400∽700nm |
| Wavelength Pitch | 10nm |
| Reflectance Range | 0∽200% |
| Light Source Type | D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12 |
| Light Source Device | Combined LED Light |
| Light Source Life | 5 years, more than 1.6 million measurements |
| Sensor | Silicon Photoelectric Diode Array |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
| Display Data | Spectral Graph/Data, Sample Chromatic Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Other Chromaticity Data | Whiteness – WI(ASTM E313，CIE/ISO,AATCC,Hunter)， |
| Yellowness-YI(ASTM D1925，ASTM 313), | |
| TI(ASTM E313，CIE/ISO), | |
| Metamerism Index (Mt) | |
| Colour Stain, Color Fastness, Color Strength, Opacity | |
| Measuring Time | 1.5s |
| Data Storage | 1000 standards, 15000 samples |
| Data Port | USD&RS232 |
| Dimension | 90*77*230mm |
| Weight | 600g |
| Battery | Li-ion Battery, 5000 measurements in 8 hours. |
| Operation Temperature | 0∽40℃(32∽104℉) |
| Storage Temperature | -20∽50℃(-4∽122℉) |

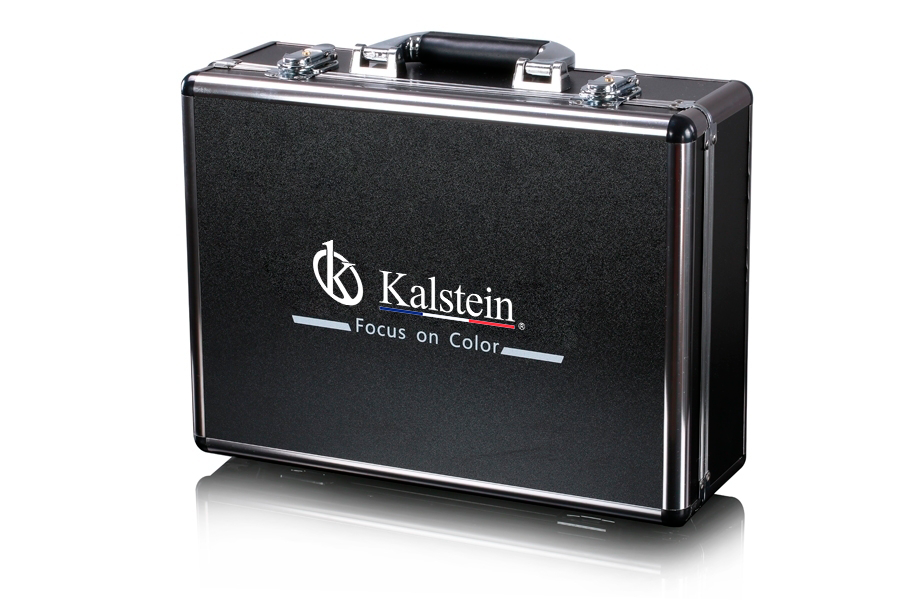

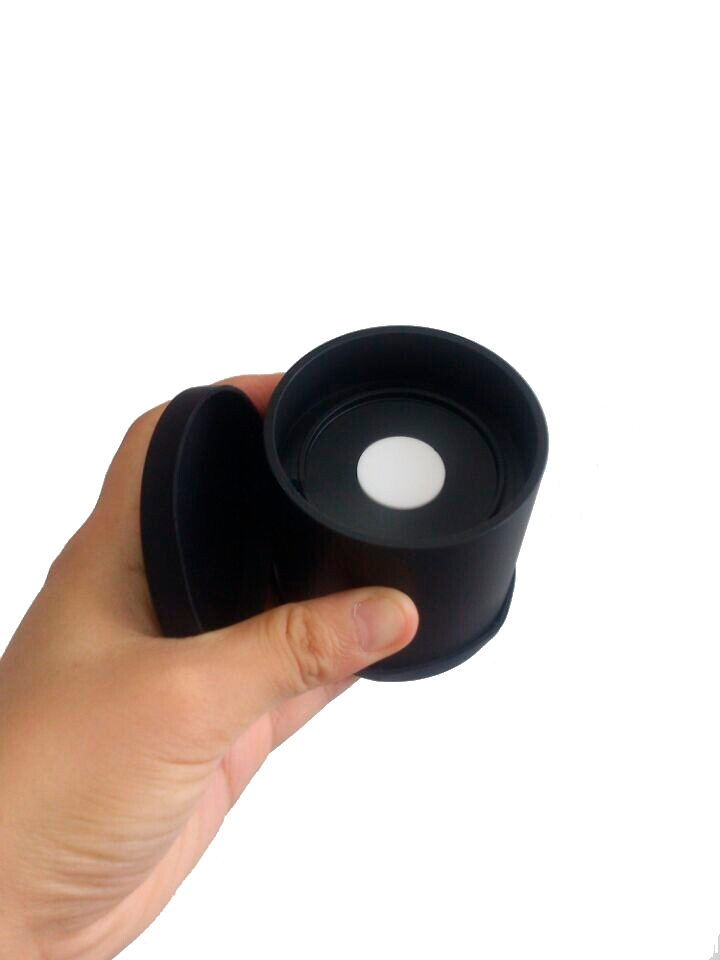

| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap. |
| Optional Accessory | Universal Test Components, Micro Printer, Powder Test Box |
Technical specifications
| Dimensions | L 34 × W 13 × H 29 cm |
|---|---|
| Weight | 3 kg |
| Manufacturer | Kalstein |
