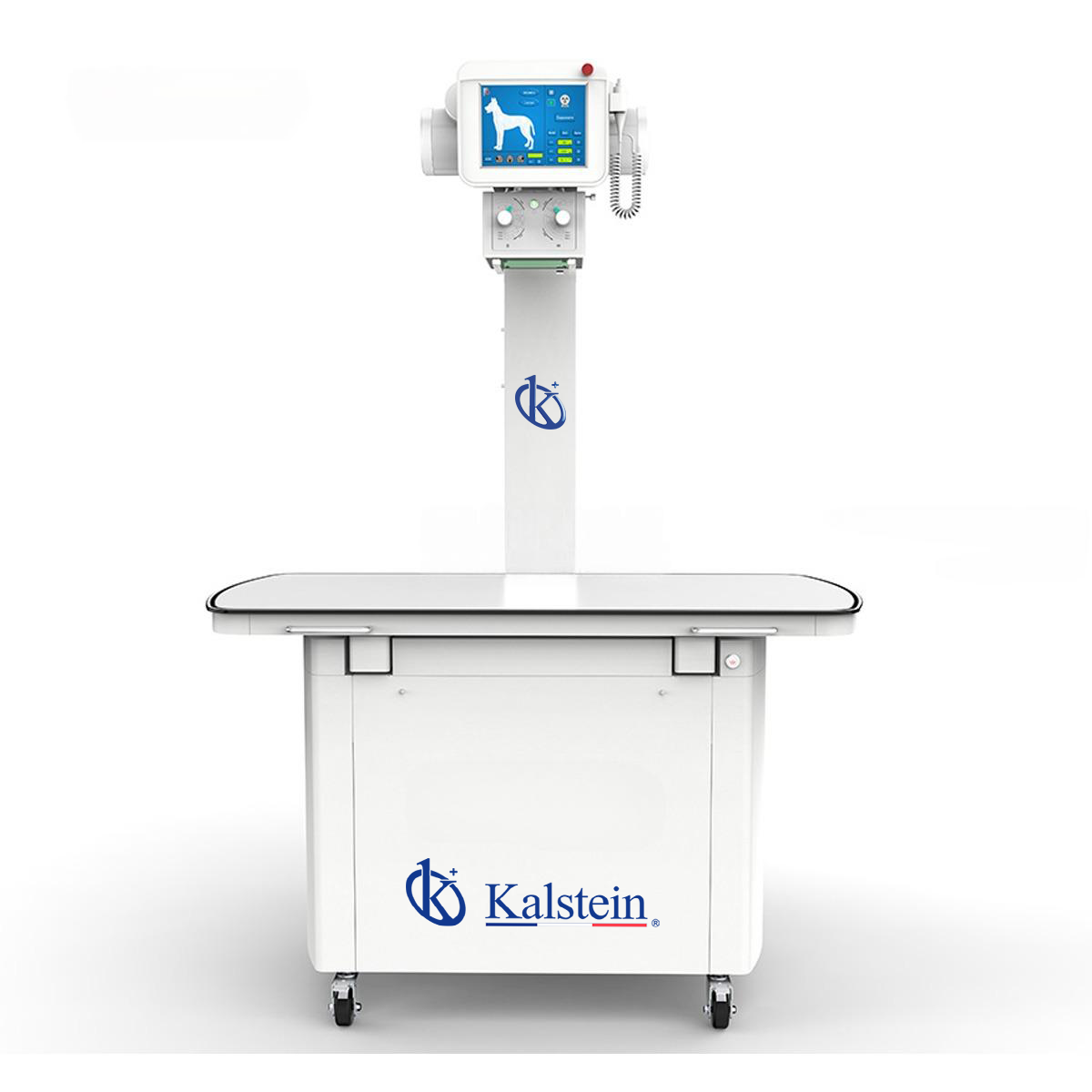

Digital Stationary Veterinary X-rays YR06163: A Comprehensive Overview
The Digital Stationary Veterinary X-rays YR06163 is a remarkable device tailored for veterinary applications, providing efficient and high-quality imaging solutions. With its innovative design and advanced features, this equipment stands out in the veterinary imaging market.
Product Description
This model features a user-friendly soft-touch control panel, allowing for easy manipulation during radiographic procedures. It provides digital visualization of kV, mAs, and time, which enhances the accuracy of the imaging process. Equipped with a high-frequency inverter generator, the YR06163 ensures stable and reliable output, making it a preferred choice for veterinary professionals.
One of the key safety features of this device is its overload protection, which safeguards against excessive kV, mA, time, and temperature. Additionally, the auto-management APR function with memory keys simplifies the radiography process, allowing for more consistent results.
| Specification | Details |
|---|---|
| Model | YR06163 |
| Maximum Output Power | 20 kW |
| Range of Tube Current | 32~320 mA |
| Tube Voltage Range | 40 kV~120 kV |
| Exposure Time Range | 10 ms~5000 ms |
| mAs Range | 0.32 mAs~320 mAs |
| Input Voltage Range | AC 220V±22V |
| Communication Interface | RS-232 |
| Additional Features | Automatic capacity lock, automatic fault diagnosis, self-protection |
| Max. Tube Voltage | 120 kV |
| Focus | Small focus: 1.0 mm; Large focus: 2.0 mm |
| Anode Input Power | Small focus: 20 kW; Large focus: 40 kW |
| Anode Speed | 2800 R/M |
| Target Angle | 17.5° |
| Anode Heat Content | 100 kJ (140 kHU) |
Market Price
The current market price for the Digital Stationary Veterinary X-rays YR06163 is approximately $16,100. This investment reflects the advanced technology and features that enhance veterinary imaging capabilities, providing excellent value for veterinary clinics and hospitals.
Frequently Asked Questions
What are the key features of the YR06163?
The YR06163 features a soft-touch control panel, digital visualization of kV, mAs, and time, high-frequency inverter generator, overload protection, and an auto-management APR function.
How does the overload protection work?
The overload protection system monitors kV, mA, time, and temperature to prevent any damage to the device or injury to patients, ensuring safe operation during radiographic procedures.
What is the maximum tube voltage?
The maximum tube voltage for the YR06163 is 120 kV, which allows for a wide range of imaging possibilities in veterinary practice.
Can the device automatically lock settings?
Yes, the YR06163 has an automatic capacity lock feature that secures the chosen settings, preventing accidental adjustments during use.
What is the warranty period for the YR06163?
The warranty period may vary by supplier; however, it is advisable to check with the vendor for specific warranty details upon purchase.
Is training required to operate this equipment?
While the user-friendly design minimizes complexity, training is recommended to ensure safe and effective use of the equipment in veterinary procedures.
How can I request a quote for the YR06163?
You can request a quote through various channels to find the best pricing and options available for the YR06163.
Pros and Cons
Pros:
- High-quality imaging capabilities.
- User-friendly interface with soft-touch controls.
- Advanced safety features, including overload protection.
- Wide range of exposure settings for versatile applications.
- Automatic features enhance usability and efficiency.
Cons:
- High initial investment cost.
- Requires regular maintenance to ensure optimal performance.
- Training may be necessary for effective operation.
Field Usage
The Digital Stationary Veterinary X-rays YR06163 is primarily used in veterinary clinics, animal hospitals, and research facilities. Its ability to provide precise imaging makes it indispensable for diagnosing various animal health issues, conducting orthopedic evaluations, and performing dental assessments. The versatility in exposure settings allows it to cater to different animal sizes and types, making it a valuable asset in veterinary practices.
Recommendations
For veterinary professionals considering the YR06163, it is advisable to evaluate your specific practice needs, including the types of animals you treat and the common conditions you diagnose. Assess the potential return on investment by considering the frequency of use and the impact on patient care quality. Additionally, ensure proper training and regular maintenance to maximize the effectiveness of the equipment.
