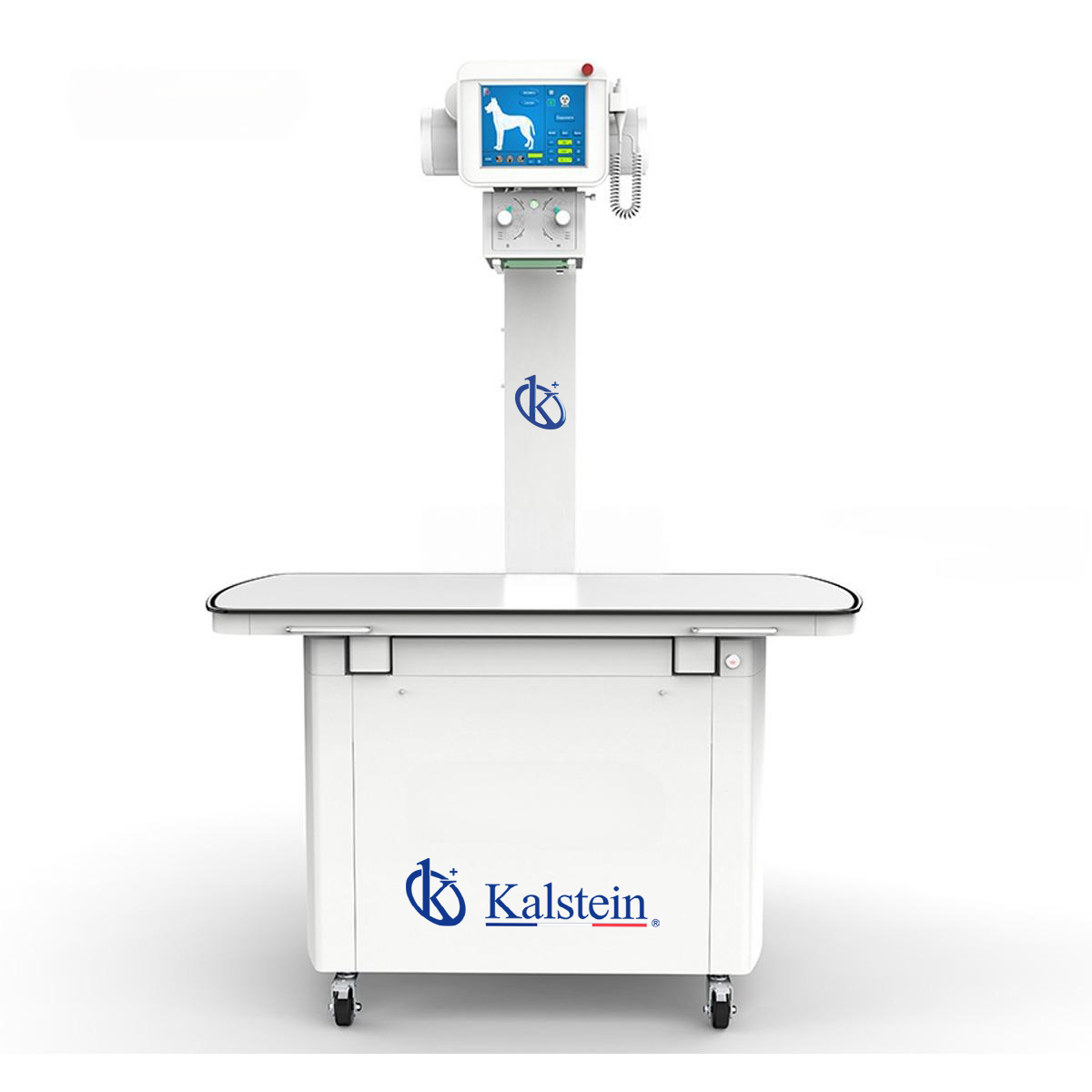

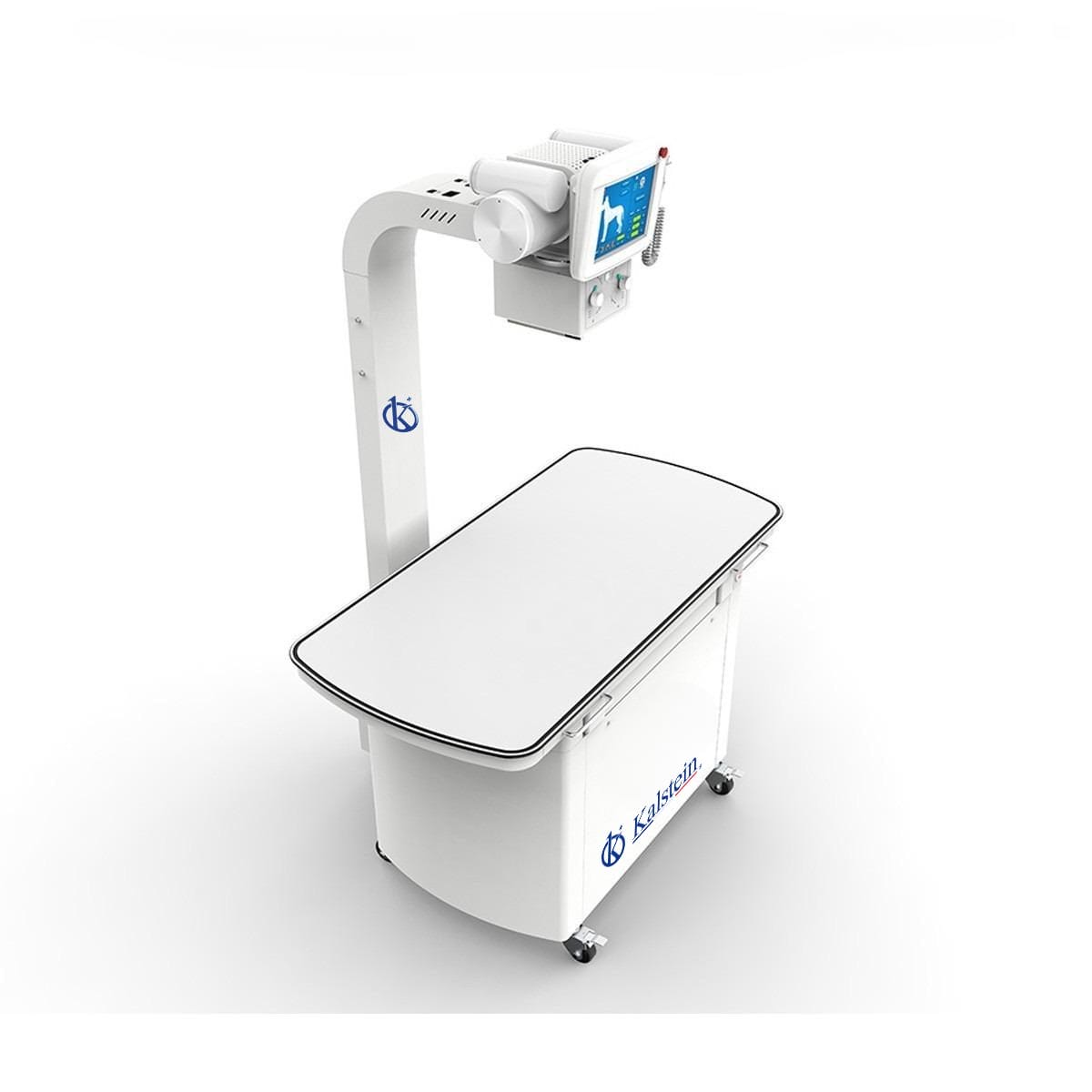

320mA Stationary Veterinary Digital X-Ray (DR) YR06163
320mA Stationary Veterinary Digital X-Ray (DR) YR06163 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The 320mA Stationary Veterinary Digital X-Ray (DR) YR06163 is a state-of-the-art imaging solution designed specifically for veterinary practices. This digital radiography system offers a soft touch user panel and digital displays of kV, mAs, and time for precise operation and data visualization. Equipped with a high frequency inverter type generator, it ensures efficient power usage, while features like overload protection and a self-manageable APR function with memory keys make it both safe and user-friendly. This model is perfect for varied veterinary diagnostic needs, from simple X-rays to more complex examinations.
Market Price
In the competitive market of veterinary X-ray machines, the 320mA Stationary Veterinary Digital X-Ray (DR) YR06163 stands out not only for its advanced features but also for its affordable pricing. The average market price for such sophisticated equipment ranges from $33,000 to $34,200, making it an excellent investment for clinics looking to upgrade their diagnostic capabilities.
Frequently Asked Questions
What is the maximum power output of this X-ray machine? The maximum output power is 20kW, sufficient for demanding veterinary applications.
What kind of patients can be diagnosed with this machine? This X-ray system is versatile enough to handle a range of veterinary patients, from small domestic animals to larger livestock.
Pros and Cons
The 320mA Stationary Veterinary Digital X-Ray (DR) YR06163 offers numerous advantages, including precise control panels, advanced protection mechanisms, and automated functions that enhance user experience and safety. A potential downside could be the initial investment; however, the long-term benefits and improved diagnostic capabilities offer significant returns.
Product Usage in the Field
Designed with veterinary professionals in mind, the YR06163 serves well in busy clinical settings. It allows for quick and efficient examination processes, reducing the need for repeat scans with its high precision imaging. This ensures higher patient throughput and improved diagnostic accuracy, vital for both small and larger veterinary practices.
Recommendations
To maximize the utility of the 320mA Stationary Veterinary Digital X-Ray (DR) YR06163, it is recommended to perform regular maintenance checks and ensure all updates are applied as needed. Utilizing the full range of its digital capabilities can streamline operations and improve patient care effectiveness.
Features
- Soft touch user panel for easy operation
- Digital displays for real-time monitoring
- High frequency inverter type generator
- Comprehensive protection features against overloads
- APR function with memory for consistent operations
- Self-protection and automatic fault diagnosis
Technical Specifications
| Model | YR06163 |
| Maximum output power | 20kW |
| Range of tube current | 32~320mA |
| Tube voltage range of radiography | 40kv~120kv |
| Range of exposure time | 10ms~5000ms |
| mAs range | 0.32mAs~320mAs |
| Input voltage range | AC 220V±22V |
| Communication interface | RS-232 |
| Other | Capacity lock automatically, fault diagnosis automatically, self-protection |
| Max. Tube voltage | 120kV |
| Focus | Small focus:1.0mm Large focus:2.0mm |
| Anode input power | Small focus:20KW Large focus:40KW |
| Anode speed | 2800 R/M |
| Target angle | 17.5° |
| Anode heat content | 100kJ(140kHU) |
Technical specifications
| Dimensions | L 55 × W 48 × H 80 cm |
|---|---|
| Weight | 105 kg |
| Manufacturer | Kalstein |
Image gallery
Video 320mA Stationary Veterinary Digital X-Ray (DR) YR06163
Frequently asked questions
How to know the prices of 320mA Stationary Veterinary Digital X-Ray (DR) YR06163?
To know the price of 320mA Stationary Veterinary Digital X-Ray (DR) YR06163, please send us an email with your request through the contact form AQUI.
What are the delivery times for 320mA Stationary Veterinary Digital X-Ray (DR) YR06163?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of 320mA Stationary Veterinary Digital X-Ray (DR) YR06163?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for 320mA Stationary Veterinary Digital X-Ray (DR) YR06163?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for 320mA Stationary Veterinary Digital X-Ray (DR) YR06163?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
