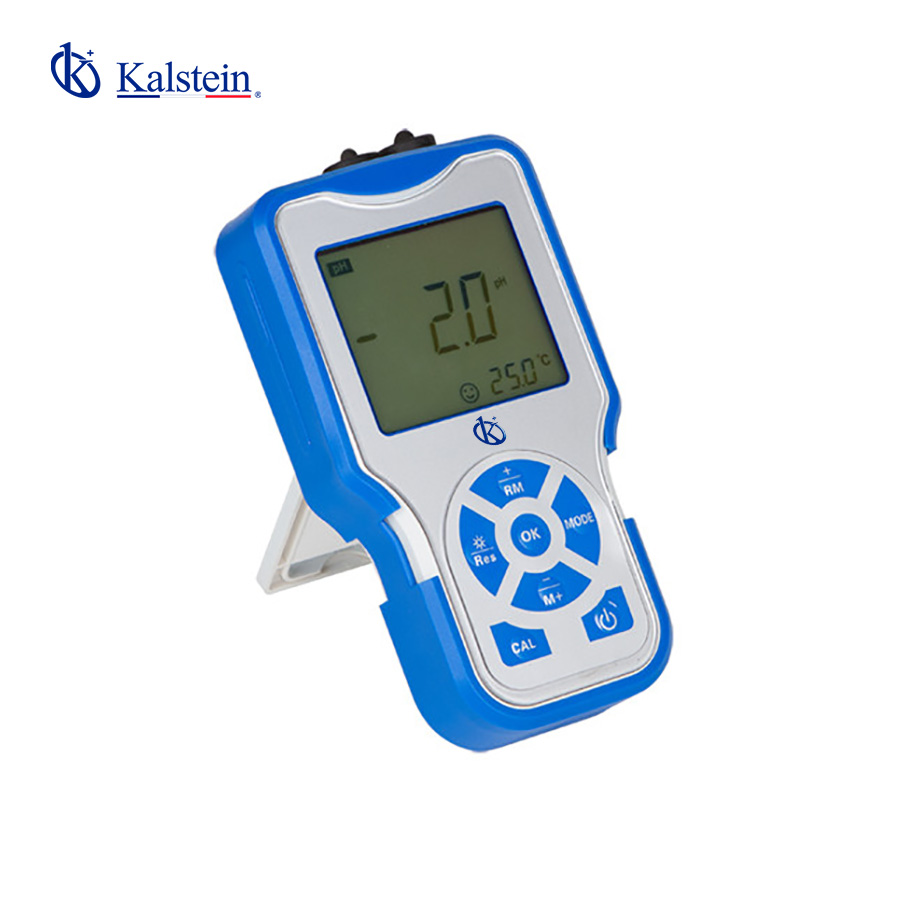

Technical Performance and Safety of Portable pH/Ion Meter YR01816
The Portable pH/Ion Meter YR01816 is an advanced multiparameter device designed for precise measurements of pH, ion concentration, and ORP (Oxidation-Reduction Potential). With its compact design and exceptional technical performance, this meter is ideal for various applications in laboratories and field testing environments.
Product Description
The YR01816 model features an LCD display with backlighting, making it easy to read in various lighting conditions. This portable ion meter provides selectable calibration points from 2 to 5, allowing users to tailor the device to their specific requirements. The automatic electrode diagnosis displays calibration points and slopes, ensuring accurate readings.
In ion mode, the device allows users to directly read ion concentration, simplifying the measurement process. The selectable units for ion concentration include PPM, mg/L, and mol/L. The device also supports various ionic valences, enhancing its versatility.
pH Mode
- Calibration can be performed from 1 to 5 points with automatic recognition for US, NIST, and DIN buffers.
- Automatic electrode diagnostics show pH slope and offset, providing insights into the sensor's condition.
ORP Mode
- It allows one-point offset calibration, which adjusts displayed values to a known standard.
- The relative and absolute millivolt modes ensure reliable ORP measurements.
Other Features
- Automatic temperature compensation guarantees accurate readings across the range.
- Automatic reading function detects and locks the endpoint of the measurement.
- Calibration due alarm prompts the user to regularly calibrate the meter.
- Auto shut-off feature saves battery life effectively.
- The configuration menu allows setting the number of calibration points, stability criteria, temperature unit, date, and time.
- The reset function restores all settings to factory defaults.
- Expanded memory stores up to 500 data sets.
- The USB communication interface facilitates easy data transfer to a PC.
- The multimode power scheme (batteries, power adapter, and USB port) ensures hassle-free operation.
Market Price
The Portable pH/Ion Meter YR01816 is competitively priced to cater to a wide range of users from various sectors, including academic, industrial, and environmental applications. The current market price for the YR01816 model is $94.00 USD. Users can expect to receive a high-quality device that combines innovative technology with reliability at this price point.
| Feature | YR01816 | YR01816-1 |
|---|---|---|
| pH Range | -2.000 to 20.000 pH | -2.000 to 20.000 pH |
| Resolution | 0.001, 0.01, 0.1 pH | 0.001, 0.01, 0.1 pH |
| Accuracy | ± 0.002 pH | ± 0.002 pH |
| Calibration Points | 1 to 5 points | 1 to 5 points |
| Ion Concentration Range | 0.001 to 19999 | 0.001 to 19999 |
| Temperature Range | 0 to 105 °C | 0 to 105 °C |
| Battery Life | Approximately 150 hours | Approximately 150 hours |
Frequently Asked Questions
What is the accuracy of the Portable pH/Ion Meter YR01816?
The YR01816 offers an impressive accuracy of ± 0.002 pH for pH measurements and ± 0.5% FS for ion concentration, making it a reliable tool for precise measurements.
How does the automatic temperature compensation work?
The automatic temperature compensation adjusts the readings based on the temperature of the sample, ensuring accurate results throughout the specified temperature range of 0 to 105 °C.
Can the YR01816 be used for field testing?
Yes, the portable design and battery-operated functionality make the YR01816 suitable for field testing in various environmental conditions.
What types of ionic concentrations can be measured?
The meter can measure ionic concentrations in units such as PPM, mg/L, mol/L, and mmol/L, providing flexibility for different applications.
How does the device ensure data integrity?
The device features automatic reading detection, calibration due alarms, and an extensive memory capability that stores up to 500 datasets, ensuring reliable data collection and integrity.
What accessories come with the YR01816?
The YR01816 package includes a pH electrode, temperature probe, pH buffer solutions, and a carrying case for easy transportation and use.
Pros and Cons
Pros
- High accuracy and reliable performance.
- Portable design with long battery life.
- Multiple calibration points for enhanced measurement precision.
- Automatic temperature compensation for accurate readings.
- Comprehensive memory storage for data tracking.
Cons
- Calibration may require regular attention to maintain accuracy.
- Not waterproof, which limits use in certain environments.
- Initial setup may take time for new users.
Field Usage
The Portable pH/Ion Meter YR01816 is ideal for various applications including environmental monitoring, laboratory analysis, and industrial processes. Its user-friendly interface and reliable measurements make it suitable for both novice and experienced technicians. For instance, in environmental testing, the device can be used to analyze water quality by measuring pH and ion concentrations in natural water bodies. In laboratories, it can assist in chemical analysis and research purposes. Additionally, industries that require regular monitoring of ion concentrations, such as agriculture and food production, benefit significantly from this portable meter.
Recommendations
For optimal use of the Portable pH/Ion Meter YR01816, it is recommended to regularly calibrate the device according to the specific requirements of the application. Users should familiarize themselves with the calibration process and take note of the automatic calibration alarm feature to maintain accuracy. Moreover, to protect the device and ensure longevity, avoid using it in extreme environmental conditions, and handle it with care during transport.
For those interested in acquiring the YR01816 portable meter, it is advisable to request a quote to explore the best pricing options available. You can easily reach out to our team for detailed information on pricing and availability.
