Rotary Evaporator YR02306: A Comprehensive Overview

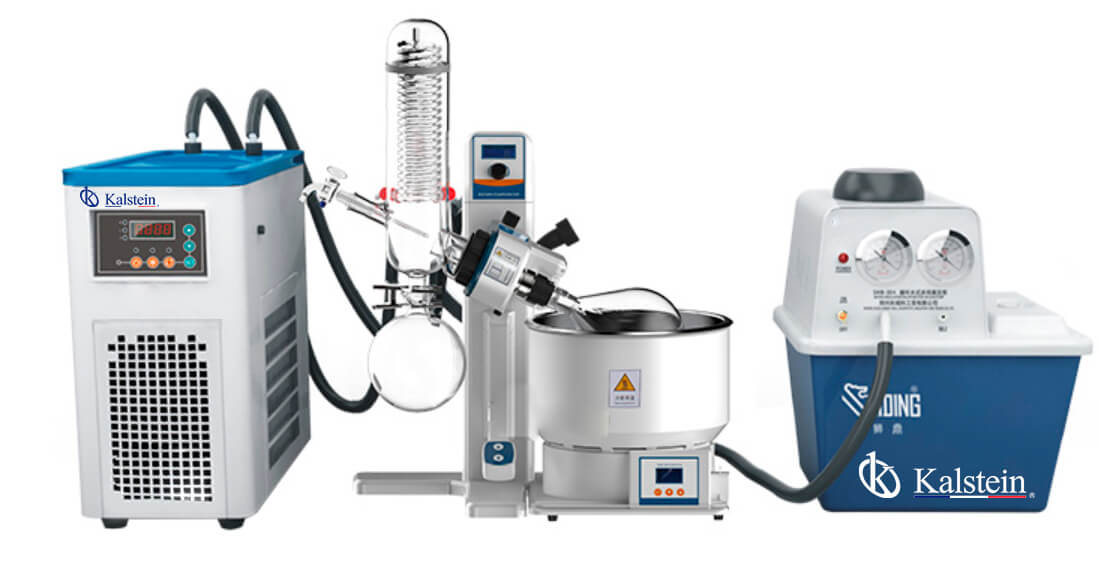

The Rotary Evaporator YR02306 is designed for superior performance in evaporation, distillation, or chemical separation experiments. This device integrates seamlessly with a vacuum circulation pump and a recirculating chiller as a complete system, meeting the diverse needs of both production and experimental applications.
Product Description
The YR02306 model features advanced technology that makes it a valuable addition to any laboratory. It employs a patented double-sealing design using PTFE and FV rubber to ensure negative pressure levels are maintained effectively. The machine operates on a wide voltage range of 100V to 240V and is compatible with 50/60Hz power supplies.
Key features include a PID controller for precise temperature regulation, an adjustable inclination angle for the evaporating flask, a quick-lock button for the rotary axis, and a motorized lift for smoother elevation. The synchronous belt drive mechanism allows for low-noise operation during the rotation process, and the individual design of the main machine and water bath facilitates future upgrades.
Market Price
The current market price for the Rotary Evaporator YR02306 is approximately $1468.00 USD. This competitive price reflects the quality and technological advancements integrated into the device.
| Feature | Details |
|---|---|
| Model | YR02306 |
| Rotation Speed | 10~280 rpm |
| Vacuum Pressure Rise Rate | <=0.33 kPa/min |
| Temperature Range | RT+5~95℃ |
| Temperature Stability | ±1℃ |
| Heating Power | 1300W |
| Cooling Area | 0.126m² |
| Evaporating Flask Volume | 500 ml, 1000 ml |
| Receiving Flask Volume | 1000 ml |
| Dimensions (W*D*H) | 595W*390D*680Hmm |
Frequently Asked Questions
What is a Rotary Evaporator used for?
A Rotary Evaporator is primarily used for the evaporation of solvents in laboratory settings, allowing for the efficient separation of compounds and purification processes.
How does the Rotary Evaporator YR02306 ensure safety?
It utilizes a double-sealing mechanism that prevents leaks and maintains pressure, alongside a PID controller for precise temperature control, ensuring safe operation during experiments.
What is the maximum temperature the YR02306 can reach?
The maximum temperature the YR02306 can achieve is 95℃, making it suitable for various evaporation tasks.
Can the Rotary Evaporator YR02306 be used for different solvents?
Yes, the YR02306 is capable of evaporating various solvents, including water and ethanol, with specific evaporation rates for each.
Is the YR02306 easy to operate?
Yes, it is designed with user-friendly controls, including a digital display for temperature and speed adjustments, making operation straightforward.
What additional equipment is needed with the YR02306?
The YR02306 does not include a vacuum pump or recirculator; these can be purchased separately to create a complete system for optimal performance.
Pros and Cons
Pros
- Advanced double-seal technology for better vacuum maintenance.
- Wide voltage compatibility for international use.
- Precise temperature control with PID system.
- Adjustable angle for the evaporating flask enhances versatility.
- Low noise operation due to a synchronous belt drive.
Cons
- Additional equipment required, which may increase overall costs.
- Initial setup may require some technical knowledge.
Field Usage
The Rotary Evaporator YR02306 is widely used in chemical laboratories, pharmaceutical production, food and beverage industries, and educational institutions for experiments requiring efficient separation and purification of compounds. Its adaptability to various solvents makes it a favored choice among researchers and professionals in diverse fields.
Recommendations
For optimal performance, it is recommended to pair the YR02306 with a high-quality vacuum pump and recirculator. This combination will enhance its efficiency and extend its applicability in more complex laboratory tasks. Regular maintenance and calibration are also advised to ensure longevity and precision in operations.
