The
Water Purification System YR06627 is an advanced option to ensure high-quality water for various industrial and scientific applications. With a purification capacity of
150 liters per hour, this system is ideal for environments that require a constant and reliable supply of ultra-pure water. Thanks to its advanced filtration technology and RO membranes, it provides water with a conductivity of 1-5 µS/cm in its RO (ASTM Type III) format and a resistivity of over 10 MΩ·cm in its DI (ASTM Type II) format, ensuring the highest purity water for your needs.

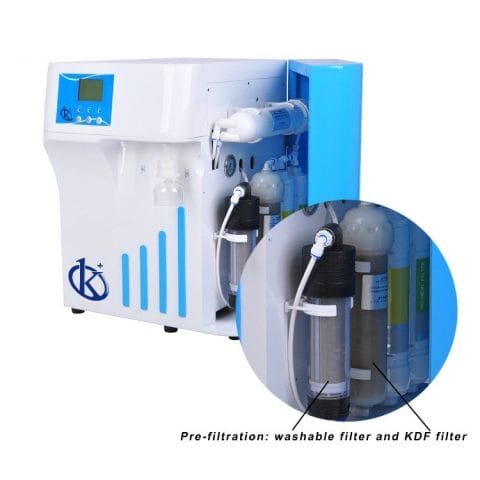

Design and Technology of the YR06627 System
This system consists of a
main unit, a
150-liter water tank, and a
TDS meter, all designed to provide a continuous flow of filtered water. Key components include a
12" PP filter, a
12" activated carbon filter, and a
600 GPD RO membrane, which require regular replacements to maintain optimal performance. Additionally, the
UV lamp with dual wavelengths (185 and 254 nm) ensures the elimination of harmful microorganisms, guaranteeing completely safe water. The system is compatible with
municipal tap water, with an input pressure range of 0.15–0.5 MPa and water temperatures up to 40°C, adapting to most water conditions.
Frequently Asked Questions
- What is the lifespan of the components in the YR06627 System?
The PP and activated carbon filters should be replaced every 4–6 months, while the RO membrane lasts 1–2 years. The UV lamp can last up to 9,000 hours.
- Is this system suitable for all types of water?
This system is designed to work with municipal tap water, providing efficient purification for various uses in laboratories, pharmaceutical industries, and more.
- Is it easy to maintain?
Yes, the system is easy to maintain with clearly defined replacement cycles for the filters and membrane, as well as TDS level monitoring.
Advantages and Disadvantages
Advantages:
- High purification capacity of 150 liters per hour.
- Advanced filtration technology with RO membranes and UV lamps.
- Low energy consumption, with electrical requirements of 100-240V, 50/60Hz, and only 48-72W of power.
- Easy maintenance with clearly defined component replacement cycles.
Disadvantages:
- Requires regular maintenance of the filters and UV lamp to maintain efficiency.
- The initial price may be higher compared to basic purification systems.
Product Use in the Field
The YR06627 Water Purification System is ideal for
research laboratories,
pharmaceutical industries, and
water quality laboratories, where ultra-pure water is required for experiments, reagent production, or stability testing. Additionally, it is perfect for
biochemical,
electrochemical, and
electroplating applications, where water purity is crucial to avoid contamination.
Recommendations for Use and Maintenance
To get the best results with the YR06627 system, it is essential to follow the maintenance recommendations for the filters and UV lamp. Be sure to replace the PP and activated carbon filters every
4–6 months and the RO membrane every
1–2 years. It is also recommended to periodically check the TDS meter to ensure the system is providing water within the ideal parameters.
Furthermore, it is suggested to continuously monitor the input pressure and water temperature, ensuring they stay within the recommended range to avoid damage to the system.
Technical Specifications
| Model |
YR06627 |
| Water Rate |
150 Liters per hour |
| Water Requirements |
Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ |
| RO Water Parameter (ASTM TYPE III) |
Conductivity: 1-5 µS/cm |
| Application (RO Water) |
Front system of ultra-pure water machine, buffer configuration, photosensitive film washing, water supply for stability experiment box, meteorological experiment equipment, hydrogen generator, battery adding liquid, electroplating and other instruments |
| DI Water Parameter (ASTM TYPE II) |
Resistivity (25℃): 10-16 MΩ.cm @ 25℃, Conductivity: <0.07 µS/cm, TOC value: <30ppb |
| Application (DI Water) |
Preposition unit of ultra-pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical & biochemical reagent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber |
| Electrical Requirements |
100-240V, 50/60Hz, 48-72W |
| System Configuration |
Host machine (including 1 set of purification column) + 150L water tank + TDS pen + accessory bag |
| Filter Elements |
| 1. 12" PP filter |
Replace cycle: About 4-6 months, Quantity: 1 pc |
| 2. 12" Activated carbon filter |
Replace cycle: About 4-6 months, Quantity: 2 pcs |
| 3. 600 GPD RO membrane |
Replace cycle: About 1-2 years, Quantity: 3 pcs |
| 4. EDI Module |
1 set |
| 5. Dual wavelength UV lamp (185 & 254 nm) |
Replace cycle: About 9000 hours, Quantity: 1 pc |
