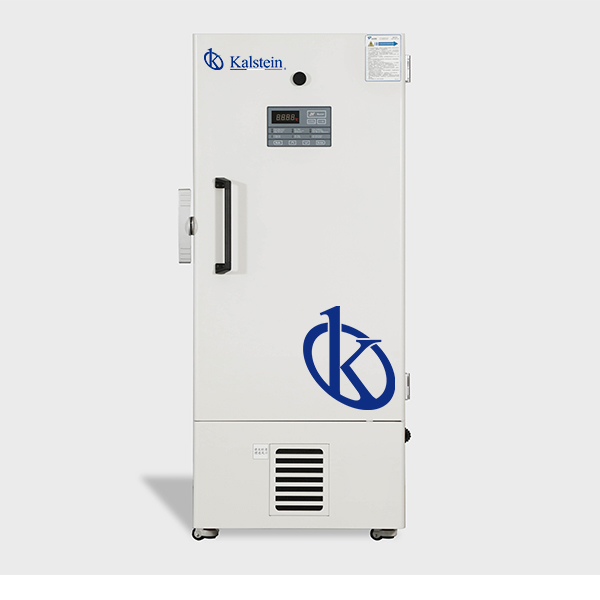

Vertical 408L Ultra Low Temperature Freezer Manual Defrost

Ultra low temperature upright freezer -86℃ Digital display for Lab/Hospital 408L

Key Features

• Microprocessor-controlled system designed for controlled rage of -40ºC to -86ºC for cabinet space with 1ºC increment.
• Settable high temperature and low temperature alarms.
• Automatic clean-filter alarm and sensor error alert.
• Adjustable storage shelf height.
• Optional temperature recorder. storage racks and storage box
• Installation and Application
• Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition.
• Suitable for 10ºC to 32ºCambient temperature

Reliability

• Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
• Specialized control system design for a well-balanced operation of cascade refrigeration system.
• Positive filed proven reliability record.

Safety

• Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient.
• Capable of producing two types of alarm outputs: audible buzzer and visible flashing light.
• Door open feature standard and USB port for temperature date downloading standard on upright models.
• Remote alarm contacts.

Energy saving

• Unique door seal design for the minimum loss of cold temperature during a door opening.
• High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.

	Model	YR05108
Specificaitons	Shelf/drawer QTY	Stainless steel shelf/3
	Cooling	Direct cooling
	Defrost	Manual
	Refrigerant	Mixed-gas
	Power Consumption(kWh/24h)	12
	Noise(db)	50
	Ambient temperature(℃)	10~32℃
	Temperature range(℃)	-40~-86℃
Cooling system	Compressor brand/QTY	SECOP/1
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	890W
	Current(A)	4.6A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	408/14.40
	NT./GT.(kg)	234/291
	Exterior size(W*D*H)(mm)	890*930*1945
	Interior size(W*D*H)(mm)	606*575*1180
	Package size(W*D*H)(mm)	955*955*2100
	CBM	1.92
	20GP/40GP/40HQ	12/24/24
Frozen Racks	Racks	16(5X4,4X4)
	Boxes (2 Inches)	288
	Samples(2ml)	28800
Alarm	High/low temperature	Y
	Power failure	Y
	Abnormal voltage	Y
	Sensor error	Y
	Filter screen check	Y
	Thermostat failure	Y
	Low battery	Y
	Condenser clean	Y
	High ambient temperature	Y
	Door ajar	Y
	Power failure backup system(alarm)	72h
Accessories	Castor	Y
	Inside door	2
	Test hole QTY/diameter	1/25MM
	USB port	Y
	Chart recorder	/
	Data logger	Optional
	Remote alarm port	Y
Optional	CO2 back up system	Optional
	LN2 back up system	Optional
Other	Certification	ISO.CE
