Description

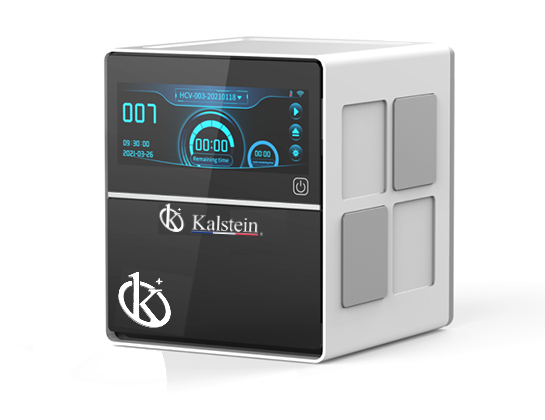

The Automatic Nucleic Acid Extractor YR01869-2 is a state-of-the-art device that enhances laboratory efficiency through its innovative design and advanced functionalities. Equipped with Rotary Mixing Technology (RMT), it enables simultaneous extraction of multiple samples, ensuring no cross-interference and achieving excellent yields. This extractor’s user-friendly interface, highlighted by its 6.86-inch touch screen and remote control capabilities, provides seamless operation. Recognized with the prestigious Red Dot Design Award 2021, its compact and versatile design is ideal for diverse laboratory applications, making it indispensable for those engaged in nucleic acid extraction tasks.
Market Price
The market price for such advanced nucleic acid extractors generally ranges between $8,880 to $9,680 USD. Although it represents a significant investment, the Automatic Nucleic Acid Extractor YR01869-2 offers unparalleled value through its high throughput, precision, and technological advancements. For those interested in exploring financial options or taking advantage of special offers, generating an automatic quote via the Kalstein Plus platform is highly recommended. This service provides tailored quotes and exclusive access to benefits such as technical support and customer care.
Frequently Asked Questions
- What sample types can the YR01869-2 process? The device is optimized for a wide range of samples that require precise DNA and RNA extraction.
- Is the device user-friendly? Absolutely, with its intuitive touch screen interface and smartphone/tablet remote control, the device ensures an easy and efficient operation.
- How can I maintain the equipment? Regular cleaning and prompt software updates are crucial for maintaining the extractor’s optimal performance.
Advantages and Disadvantages
Advantages:
- High Flexibility: Capable of handling multiple projects with varying demands.
- Automated Workflow: Features such as automatic reagent identification and remote updates increase operational efficiency.
- Advanced Safety Features: Includes UV lamps and HEPA filtration to reduce contamination risks.
- Portable Design: Its compact nature makes it easy to transport and set up in different environments.
Disadvantages:
- High Price Point: The cost may be prohibitive for smaller laboratories.
- Specialized Maintenance Required: The device demands trained personnel for upkeep and updates.
Product Use in the Field
The Automatic Nucleic Acid Extractor YR01869-2 primarily serves in genetic research, clinical diagnostics, and biotechnology laboratories. Its portable design allows seamless use in hospitals, forensic labs, and research facilities, making it vital for PCR projects and biological analyses where adaptability and rapid processing are crucial.
Recommendations
To utilize the YR01869-2 to its fullest, adhere to manufacturer’s maintenance instructions, including periodic cleaning and PT software updates. Maximize its multitasking ability by running parallel assays to boost lab productivity. Implement the UV disinfection and HEPA filtration systems to maintain result accuracy by preventing cross-contamination.
Technical Specifications
| Model | YR01869-2 |
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing |
| Rotary Speed | 100~3000rpm |
| Temperature Control Range | Temperature control separately for lysis and elution. |
| Temperature range from 30°C to 120°C. | |
| Temperature Control Accuracy | Heating speed: 4.0±0.2°C/s. |
| Temperature accuracy: ±1.0°C. | |
| Temperature uniformity:≤1.0°C. | |
| Languages | Chinese/English |
| Protocol Management | Flexible to create, edit and delete protocols |
| Operation Mode | Mode 1: Android systems in smartphones/tablets |
| Mode 2: 6.86 inch full-color LCD screen | |
| Automatic Control | Automatic opening and closing of the experiment cabin |
| Reagent Identification | Automatic identification of reagent information and running the assays |
| Mixing Sleeve Monitoring | Real-time monitoring of the mixing sleeves status in experiment |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Disinfection | Ozone + UV disinfection |
| Auto Power-off | Auto power-off after UV disinfection |
| Negative-Pressure Filtration | Negative pressure HEPA filtration module |
| Connection Port Type | USB port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
