T Type Vertical Lab Freeze Dryer YR05193-1

Manufacturer: Kalstein

Description

The T Type Vertical Lab Freeze Dryer YR05193-1 is an advanced laboratory equipment innovation that uses cutting-edge vacuum freeze-drying technology to efficiently preserve materials. Ideal for industries such as pharmaceuticals, biotechnology, chemical processing, and food production, this freeze dryer offers a condenser capacity of 3 kg/24 hours. It also features eco-friendly CFC-free refrigeration, a durable stainless-steel construction, and a user-friendly LCD display with drying curves. These technical advantages make it the perfect choice for professionals looking to maintain the integrity and structure of biological samples through sublimation drying under vacuum conditions.

Market Price

The T Type Vertical Lab Freeze Dryer is generally priced within the $5800 to $6600 USD range in the market. However, this may vary depending on specific features and suppliers. If you’re considering investing in this high-quality equipment, you can easily request a quote or even generate an automatic estimate through our Kalstein Plus platform. Don’t miss the opportunity to enhance your laboratory’s efficiency with this advanced freeze dryer.

Frequently Asked Questions

What industries can benefit from the T Type Vertical Lab Freeze Dryer?
This freeze dryer is perfect for sectors like pharmaceuticals, biotechnology, chemical processing, and food production.

What is the capacity of this freeze dryer?
The device features a condenser capacity of 3 kg/24 hours, ensuring efficient sample processing.

Advantages and Disadvantages

Advantages:
– Eco-friendly CFC-free technology.
– Durable stainless-steel construction.
– Customizable tray spacing for different sample sizes.

Disadvantages:
– Functions optimally in environments with ambient temperatures ≤25℃.
– Optional features like cascade refrigeration may increase the overall cost.

Product Use in the Field

In practical applications, the T Type Vertical Lab Freeze Dryer YR05193-1 is employed to maintain the integrity of biological samples, drugs, and food items through long-term storage. By freezing samples and reducing pressure to enable sublimation, it preserves the materials’ original properties and extends their shelf life, ensuring superior quality upon recovery.

Recommendations

For optimal performance, maintain an ambient temperature of 25℃ or below during operation. Regular maintenance of the vacuum pump and careful handling of the stainless steel trays will enhance the equipment’s longevity. Consider the optional cascade refrigeration system for operations requiring extremely low temperatures.

Features

  • CFC Free refrigeration

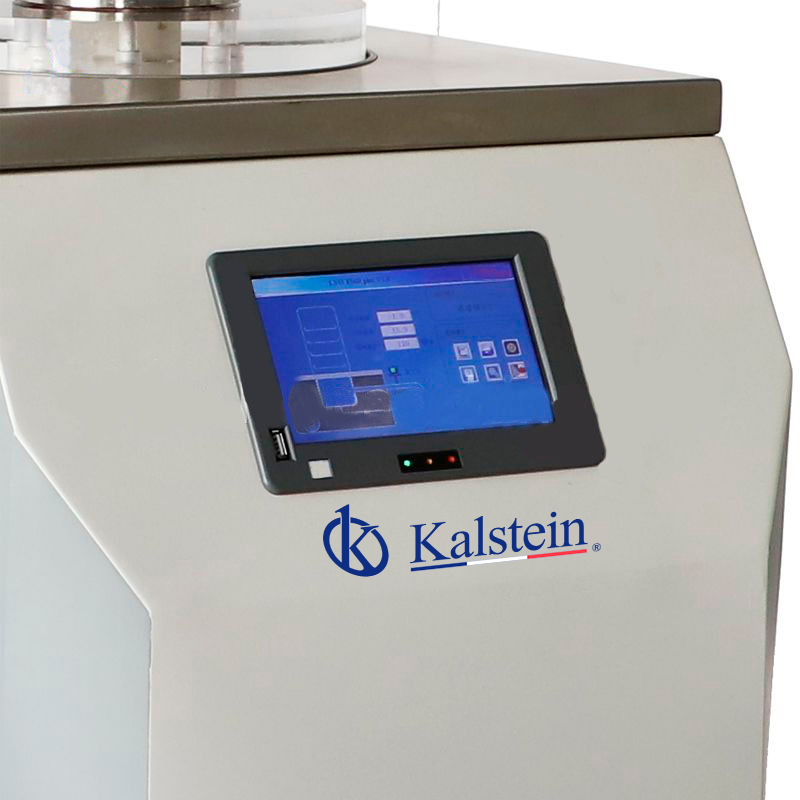

  • LCD display with English interface and drying curves
  • Condenser with pre-freezing function
  • Low noise and efficient compressor
  • Durable stainless steel condenser and operation panel
  • Visible drying chamber made of organic glass
  • Customizable stainless steel trays
  • Easy operation and small footprint
  • Optional nitrogen valve, eutectic point test device, and communication interface
  • Optional cascade refrigeration for -80℃ applications

Technical Specifications

Model YR05193-1
Condenser capacity 3 kg /24h
Condenser temperature -55℃ (-80 ℃ optional )
 Vacuum degree < 10 Pa

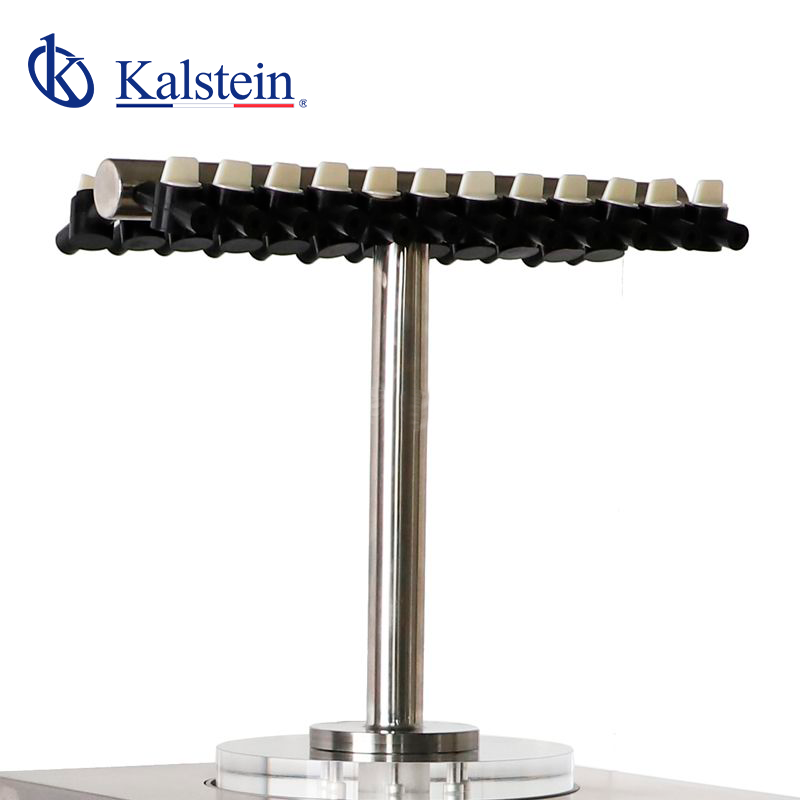

Rubber sealed valve 24 pcs, for 24 ampule
special requirement customized
Cooling  Air,draughty, ambient temperature≤25℃
Vacuum pump flow rate 2 L/S, 7.2 m3/h
Voltage  220V ,50 Hz
Power 750  W
Host dimension 560×460×(720+440) mm
Host Weight 62 kg

Additional information

Weight 201 kg
Dimensions 120 × 69 × 77 cm
