Rotary Evaporator YR02306
Rotary Evaporator YR02306 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

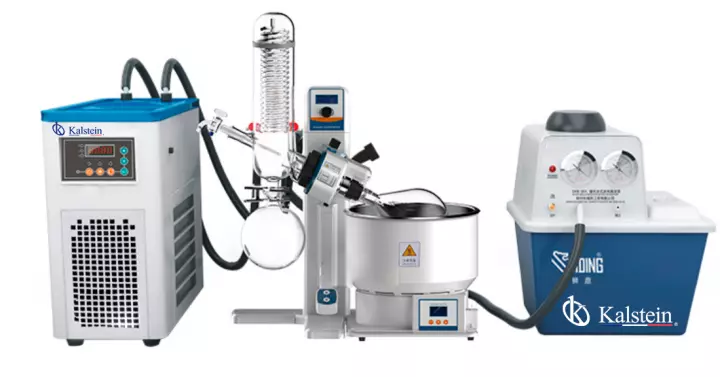

The Rotary Evaporator YR02306 is an essential piece of laboratory equipment tailored for evaporation, distillation, and chemical separation experiments. Designed to be a key component within a complete system alongside a water circulating vacuum pump and recirculating chiller, this model ensures efficient performance in diverse experimental and production settings. Its innovative features such as the patented double sealing technology using PTFE and FV rubber, and an adaptable tilt angle for the evaporating flask, highlight its outstanding design and operational precision.
Market Price
Rotary evaporators like the YR02306 are known for their reliability and advanced technology. Prices for similar models typically range from approximately $29,500 to $30,000 USD, reflecting their sophistication and the precision engineering involved. This range provides a good benchmark for laboratories seeking to add high-quality evaporation systems to their setups.
Frequently Asked Questions
What is the capacity of the evaporating flask for the YR02306? The evaporating flask has capacities of 500ml and 1000ml, providing versatility for different experimental needs.
Does the YR02306 include a vacuum pump and recirculator? No, the vacuum pump and recirculator are not included. However, compatible models YR02301 (Recirculator) and YR05158 (Vacuum Pump) can be included to complete the system if required.
Advantages and Disadvantages
The YR02306 offers several advantages, including precise temperature control via its PID controller, a motorized lift for smooth operation, and a quiet, synchronous belt drive. However, a potential drawback is the requirement to separately purchase the compatible vacuum pump and recirculating chiller to complete the setup.
Product Usage in the Field
In practical applications, the Rotary Evaporator YR02306 is used extensively in chemical laboratories for solvent evaporation and distillation processes. Its robust design and reliable performance make it ideal for both research and industrial labs aiming to achieve efficient and reproducible results.
Recommendations
To ensure the longevity and optimal performance of the YR02306, regular maintenance checks are recommended. Utilize compatible accessories such as the YR02301 and YR05158 for an efficient setup. Always adhere to the specified operational limits for temperature and pressure to maintain equipment safety and functionality. For a detailed quote or to explore our Kalstein Plus platform, reach out to us for assistance.
Specifications
| Model | YR02306 | |
| Rotation Speed | 10~280 rpm | |
| Pressure rise rate of vacuum system | <=0.33kPa/min | |
| Temperature Range | RT+5~95℃ | |
| Temperature Stability | ±1℃ | |
| Temperature Control | Keypad input, digital display | |
| Speed Control | Knob setting, digital display | |
| Lifting | Motorized lift | |
| Lifting Distance | 150mm | |
| Lifting Speed | 10mm/s | |
| Rotary Motor Power | 40W | |
| Heating Power | 1300W | |
| Condensing Area | 0.126m2 | |
| Evaporating Flask | 500ml, 1000ml | |
| Receiving Flask | 1000ml | |
| Vacuum Sealing | Double sealing rings made of Teflon+ Viton materials | |
| Water Bath size ·Capacity | 250×130mm·6.5L | |
Evaporating Speed | Water | 23ml/min |
| Ethanol | 26ml/min | |
Power Supply | Main Machine | 100V~240V, 50/60Hz |
| Water Bath | 110V~, 60Hz or 220-240V~, 50/60Hz | |
| Ambient temperature | 5~35℃ | |
| Environment Relative Humidity | <=70 | |
| Protection Class of Shell | IP20 | |
| Pollution Prevention Grade | Grade 2 | |
| Dimensions | 595W*390D*680Hmm | |
Net Weight | Main Machine | 10KG |
| Water Bath | 3.9KG | |
| The Rotary Evaporator model YR02306 does not include vacuum pump or recirculator, these can be included as required, the models would be YR02301 (Recirculator) + YR05158 (Vacuum Pump), for the complete set. | ||
Technical specifications
| Dimensions | L 58 × W 72 × H 61 cm |
|---|---|
| Weight | 31 kg |
| Manufacturer | Kalstein |
