Precision Colorimeter YR05510
Precision Colorimeter YR05510 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

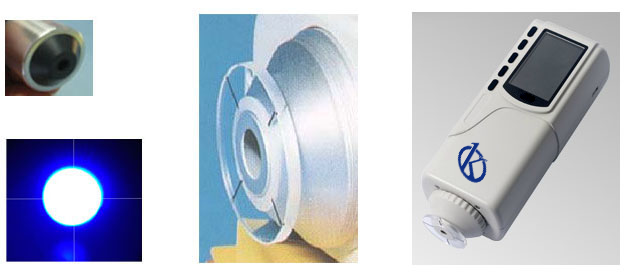

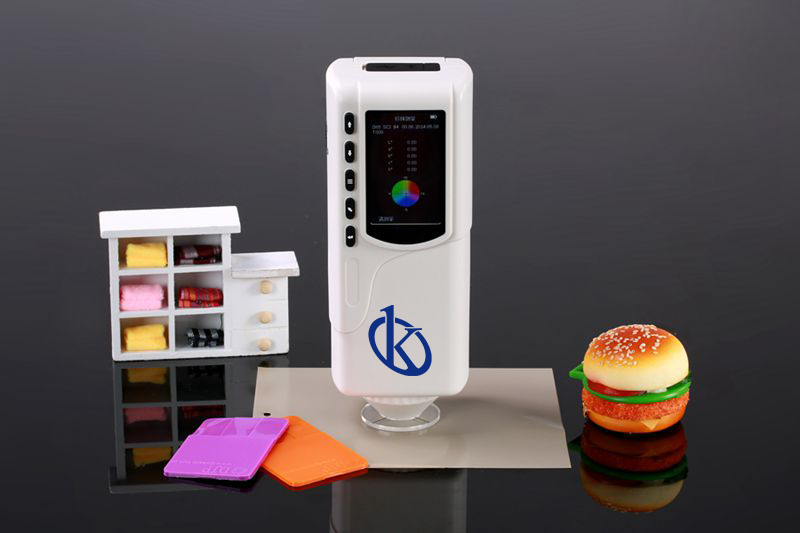

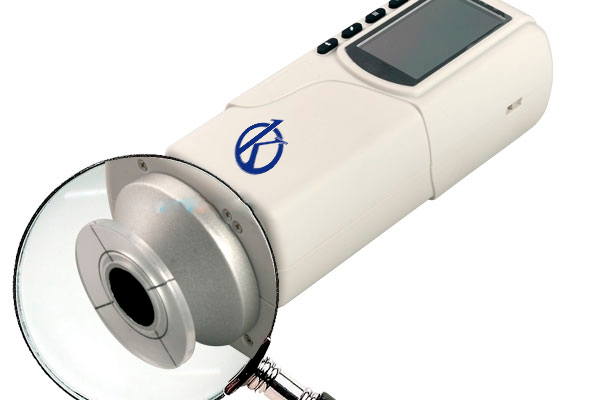

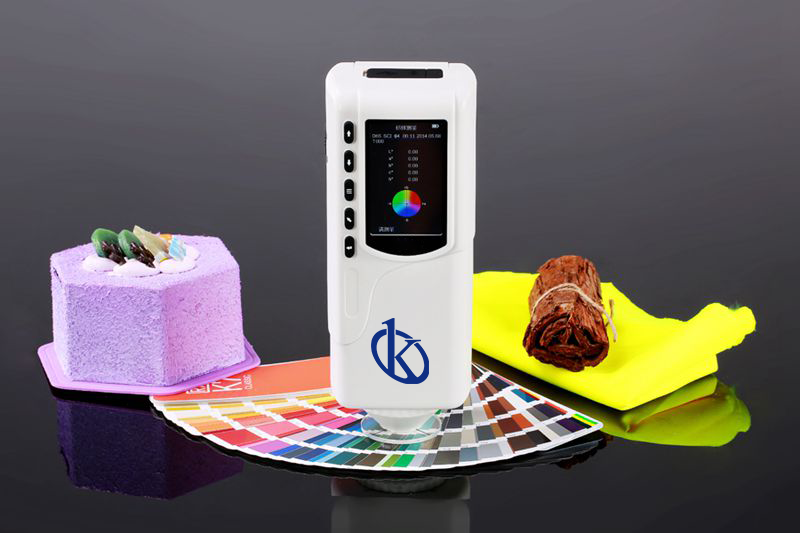

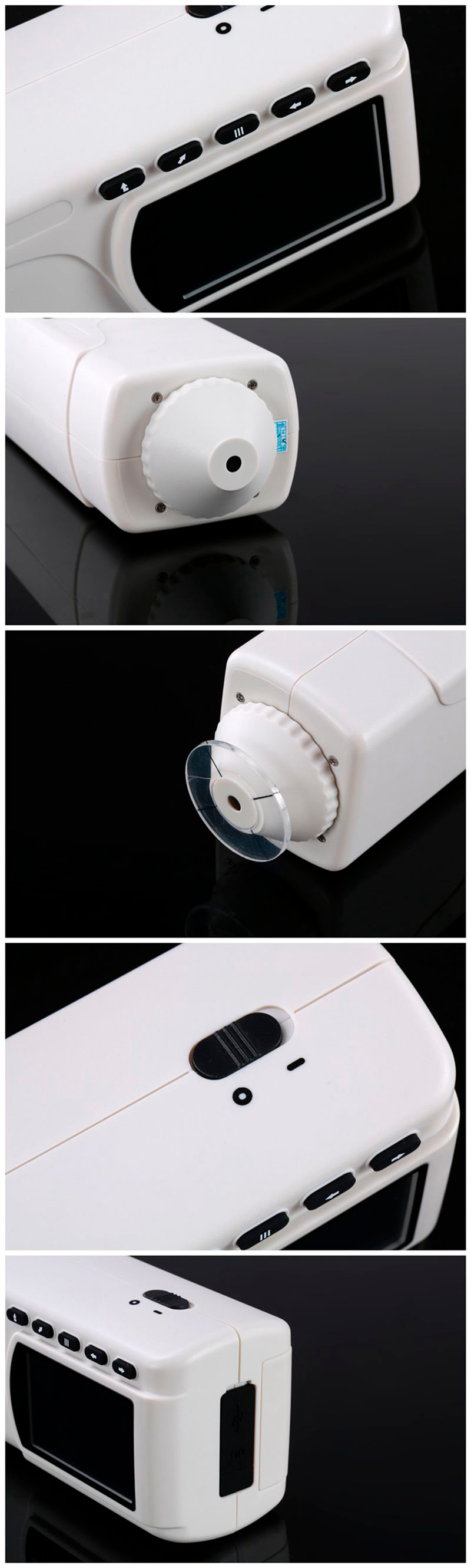

The Precision Colorimeter YR05510 is an advanced device designed to meet the needs of diverse industries such as plastics, electronics, textiles, and beyond. It features dual apertures – a Φ8mm flat and a Φ4mm tip – ideal for precise color measurement on various surfaces, including concave samples. This portable colorimeter, which utilizes the CIE LAB color space for Delta E measurement, enhances efficiency with its built-in white plate parameters, eliminating the need for repeated calibrations. With its stylish design and rechargeable lithium-ion battery, the YR05510 combines aesthetic appeal with functional performance, providing high-value solutions for scientific, industrial, and educational applications.
Market Price
The Precision Colorimeter YR05510 is competitively priced within the market, typically ranging from $1,000 to $1,800. It stands out not only for its affordability but also for its unmatched precision and ease of use, making it a smart investment for professionals who require reliable color measurement solutions.
Frequently Asked Questions
What industries can benefit from the Precision Colorimeter YR05510? This device is versatile and can be used across various fields, including plastic, electronic, paint, ink, textile, garment, food, and cosmetic industries.
Is the device easy to calibrate? Yes, thanks to its built-in white plate parameters, the YR05510 does not require calibration each time, allowing for rapid measurements.
Advantages and Disadvantages
The YR05510 offers numerous advantages, including high precision, a handheld design for portability, and a long-lasting rechargeable battery. Additionally, its dual apertures facilitate the measurement of different sample types. A potential drawback might be its initial cost compared to simpler devices, though the benefits often outweigh the price for those needing high accuracy and efficiency.
Product Use in the Field

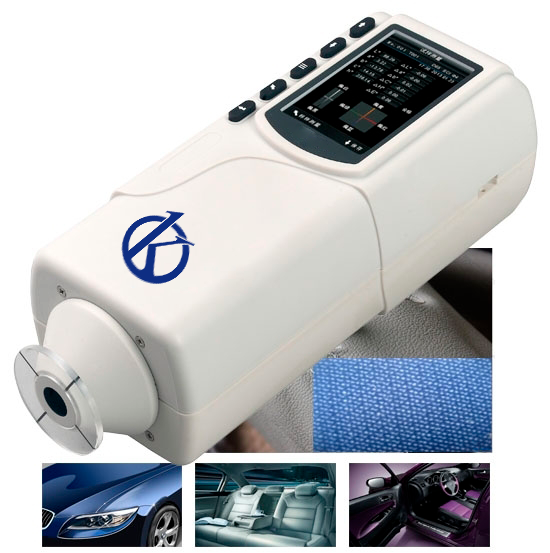

The YR05510 is extensively employed in quality control processes across multiple industries. For example, in the textile industry, it ensures the consistency of fabric colors, while in the food sector, it helps maintain the visual appeal of products by ensuring color quality and consistency, essential for brand integrity.
Recommendations
For optimal performance, it's recommended to store the device in a dry, dust-free environment when not in use. Regularly check the battery status to ensure it's charged, especially when preparing for extended measurement sessions.
Features
- Built-in white plate parameters for rapid measurement.
- Dual aperture options for diverse application needs.

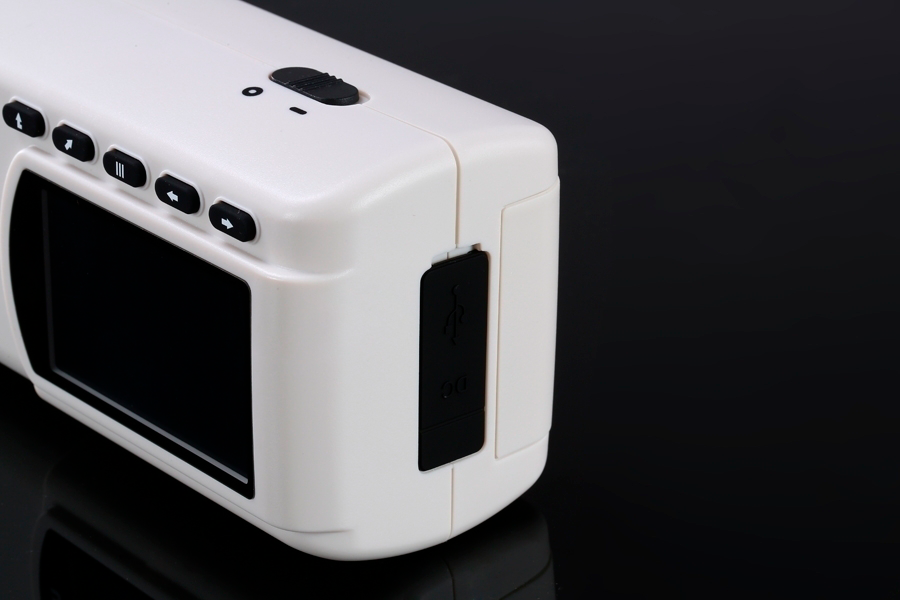

- Rechargeable Li-ion battery for convenience.
- Compact, handheld design for ease of use.
- Modern aesthetic that combines traditional design elements.
Technical Specifications
| Model | YR05510 |
| Illuminating/Viewing Geometry | 45°/0° |
| Measuring Aperture | Φ20mm |
| Special Function | Especially suitable for testing surface stripe and wet products |
| Locating | Illumination Locating/Cross Locating |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Color Space | CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ |
| Color Difference Formula | △E*ab; △L*a*b*; △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.50ΔE*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
| Weight | 500g |
| Dimension | 205×67×80 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | First charging time is 8 hours--100% electricity |
| PC Software | CQCS3 Software |
| Printer (optional) | Miniature thermal printer |
Technical specifications
| Dimensions | L 28 × W 15 × H 35 cm |
|---|---|
| Weight | 2 kg |
| Manufacturer | Kalstein |
