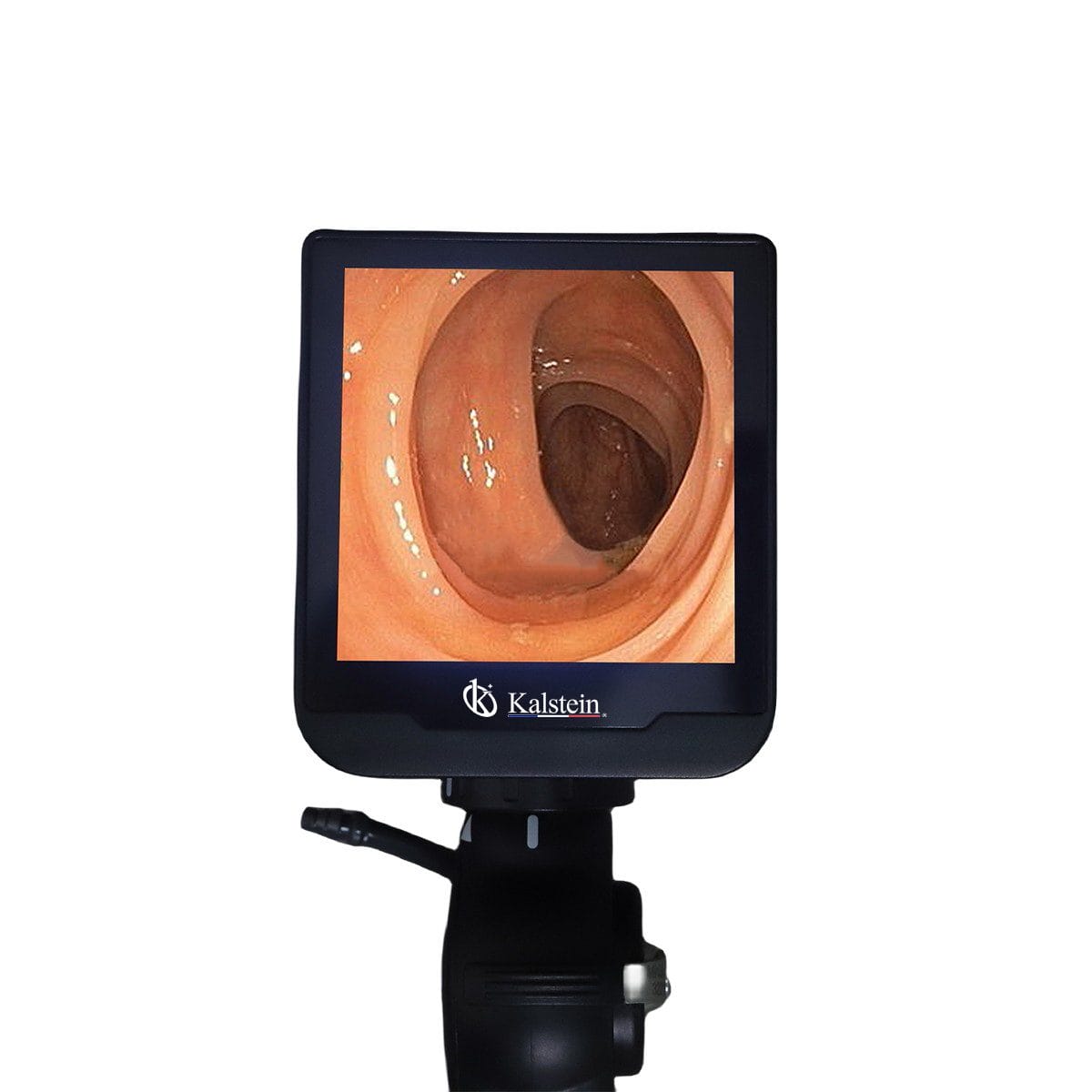

Portable Veterinary Video Endoscope YR06151//YR06155

ManufacturerKalstein

Description

The Portable Veterinary Video Endoscope YR06151//YR06155 stands out for its high-resolution CMOS sensor that delivers clear images in real-time without any delay, making it an essential tool for veterinarians. The durable LED light source assures optimal illumination during procedures, while the endoscope’s multi-function handle facilitates various operations, such as photography, videography, freezing, and zooming, all manageable single-handedly. Designed for comprehensive veterinary use, its capabilities include bronchoscopy, rhinoscopy, and examinations vital for bladder treatments and lung depth detection. Enhanced by four-directional observation, this endoscope truly caters to the precise needs of veterinarians.

Market Price

When considering the acquisition of a veterinary video endoscope, pricing is a key factor. The market offers a wide range of similar high-quality equipment with prices typically ranging between $10,000 and $10,800 USD. It’s important to assess not only the initial investment but also the value added to your practice through improved diagnostic capabilities and patient care.

Frequently Asked Questions

Q: How easy is it to operate the Portable Veterinary Video Endoscope?
A: The device is designed for user-friendliness, featuring a multi-function handle with intuitive controls that allows veterinarians to perform various operations single-handedly.

Q: Can this endoscope accommodate different applications?
A: Yes, it is versatile and can be used for a variety of applications, including bronchoscopy, lung depth detection, and urethral examinations.

Advantages and Disadvantages

Advantages: The endoscope offers a high-resolution CMOS sensor for sharp imaging, a robust LED light source for clarity in visibility, and intuitive controls for efficient use. Its ability to bend and rotate in multiple directions provides comprehensive examination capacity.

Disadvantages: Given its advanced features, the Portable Veterinary Video Endoscope YR06151//YR06155 is priced in the higher range, which may not be accessible to smaller practices or individual veterinarians just starting.

Product Use in the Field

In practical scenarios, this endoscope proves invaluable for small and large animal practices, providing real-time imaging that enhances diagnostic accuracy. The endoscope’s rotation and bending capabilities allow detailed exploration of otherwise hard-to-access areas, crucial for timely and precise veterinary interventions.

Recommendations

To maximize use and longevity, ensure regular maintenance and cleanliness of the endoscope. Familiarize yourself with its operational settings and practice with the device during non-critical times to improve proficiency. Consider investing in training or workshops for your team to enhance overall efficiency and patient care quality.

Features

  • High-resolution CMOS sensor for crisp imaging
  • Durable LED light source
  • Multi-directional bending and rotation
  • Intuitive multi-function handle
  • Wide range of applications in veterinary care
  • Rotatable video adapter cable

Technical Specifications

Model Diameter of Insertion Tube Working Channel Working Length View Angle View Depth Range of Bending Screen size
YR06151 2.8 mm 1.2 mm 610 mm 120° 3-200 mm 210° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06152 3.8 mm 1.5 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06153 4.8 mm 2.0 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06154 5.8 mm 2.8 mm 1500 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06155 5.8 mm 2.8 mm 1500 mm 120° 3-100 mm 180° (U), 130° (D)
120° (R), 120° (L)
4-inch

Additional information

Weight N/A
Dimensions 66 × 50 × 22 cm
Model

YR06151, YR06152, YR06153, YR06154, YR05155
