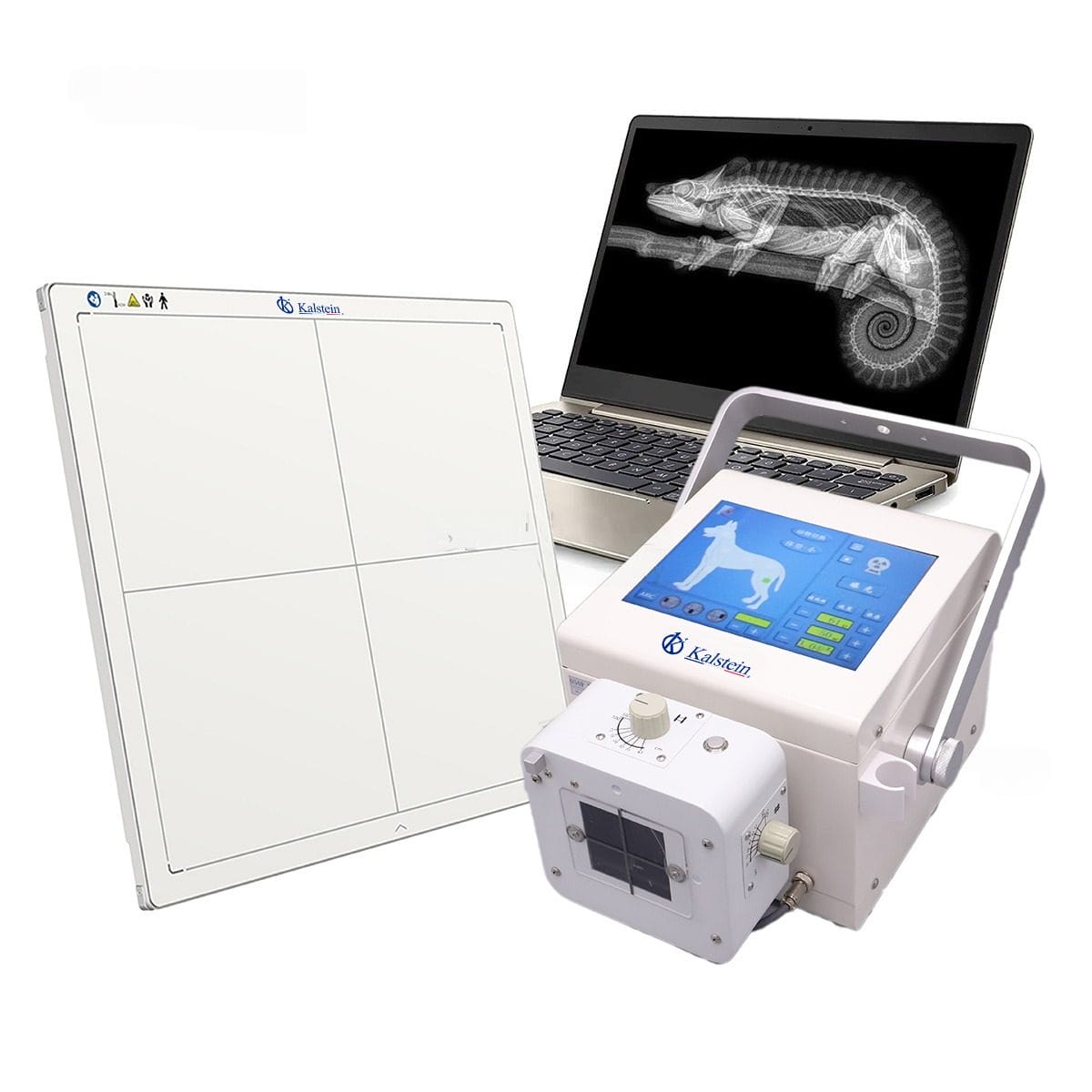

Portable Veterinary Digital X-Ray (DR) YR06160

SKU:YR06160 · By Kalstein

Category:Veterinary X-Ray

Portable Veterinary Digital X-Ray (DR) YR06160

Portable Veterinary Digital X-Ray (DR) YR06160 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

10.4-inch touch screen display Failure self-protection, self-diagnosis High precision control of tube voltage, tube current 48 kinds of presupposed anatomy memory pattern choice Accuracy control method of simulation and double digital loops X-ray tube complete surrender by lead for protect X-ray leaking Exposure by touch screen, hand switch or remote control
Technical Specifications
ModelYR06160
Generator
Power5kW
kV Range40~110kV
mA Range20~100mA
mAs Range0.8-200mAs
Working Frequency≥40kHz
Exposure time40ms~4000ms
X-ray tube
Anode heat storage56KHU
Focus1.8mm
Inherent filtration1mm Al/75Kv
Light sourceLED
Wireless flat panel detector
ScintillatorCSI
Active Area10*13 inch
Pixel Matrix2528*3318
Data InterfaceWiFi / Tethered
Trigger ModeAED (optional) / Software
Dimensions269mm*362mm*16mm
Weight2.2kg
Touch ScreenDimension10.4-inch
Main Unit
Weight19kg
Dimension290mm*265mm *230mm
Power SupplyVoltageAC 220V±10%, 50Hz±1Hz

Technical specifications

DimensionsL 73 × W 58 × H 48 cm
Weight37 kg
ManufacturerKalstein

Video Portable Veterinary Digital X-Ray (DR) YR06160

rayon X vetérinaire · YouTube · Kalstein
Sistema de Resonancia Magnética Veterinaria · YouTube · Kalstein
Rayos x Digital Veterinaria Portátil · YouTube · Kalstein
Generador de Imágenes Multifuncional · YouTube · Kalstein
Request a quoteContact salesView full catalog

Frequently asked questions

How to know the prices of Portable Veterinary Digital X-Ray (DR) YR06160?

To know the price of Portable Veterinary Digital X-Ray (DR) YR06160, please send us an email with your request through the contact form AQUI.

What are the delivery times for Portable Veterinary Digital X-Ray (DR) YR06160?

Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.

How to make a purchase of Portable Veterinary Digital X-Ray (DR) YR06160?

You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.

How does the warranty work for Portable Veterinary Digital X-Ray (DR) YR06160?

All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.

Can I request a quote online for Portable Veterinary Digital X-Ray (DR) YR06160?

Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
