Description

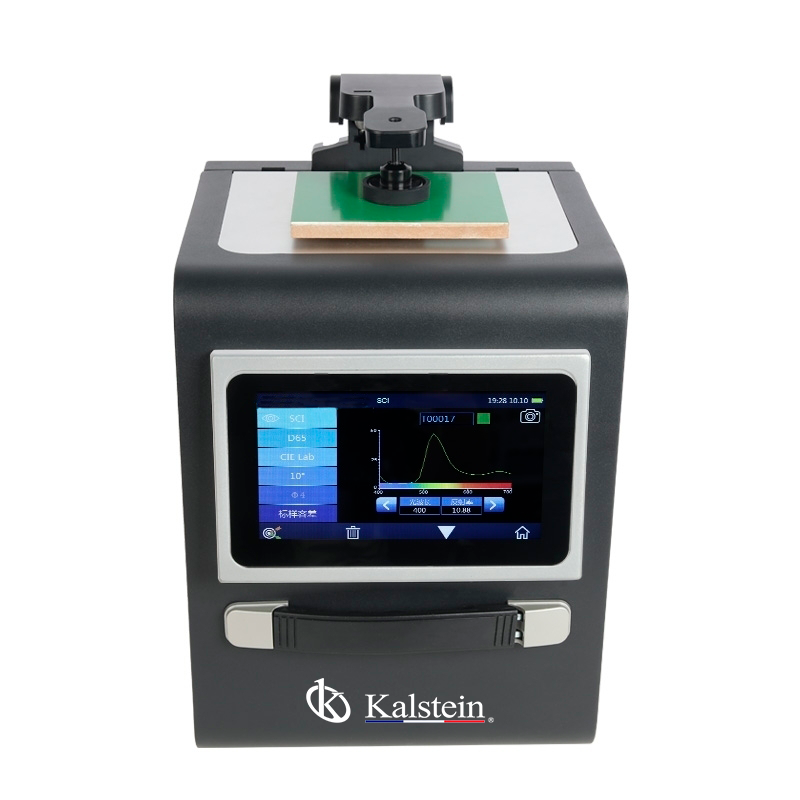

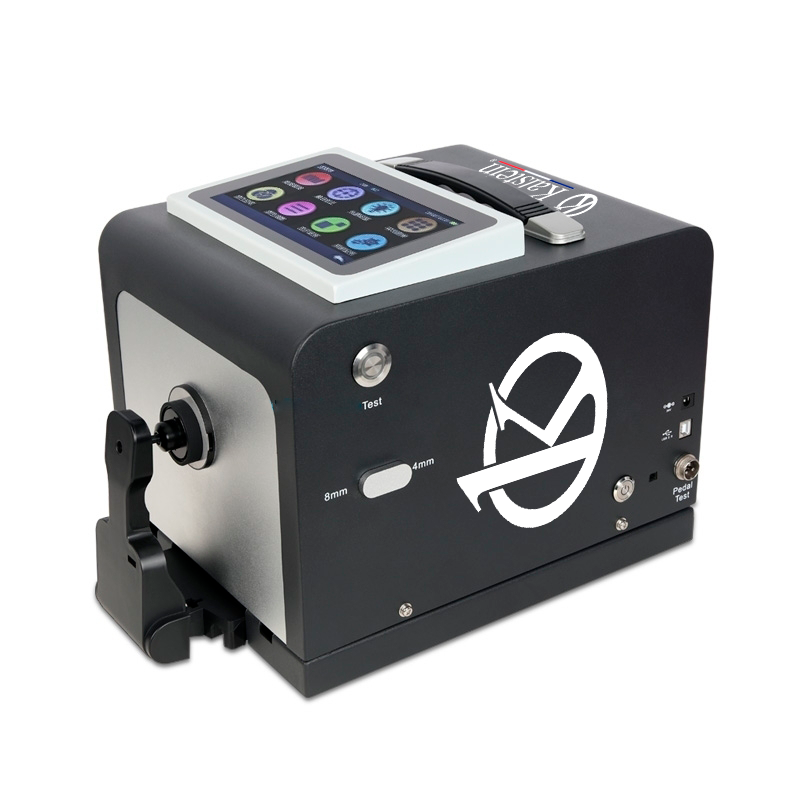

The Portable Desktop Spectrophotometer YR05484 from Kalstein is an advanced tool designed for precise color measurement in laboratories and various industrial applications, such as plastic electronics, the textile industry, ceramics, and printing. This spectrophotometer features 45/0 optical technology and a 256-pixel dual-matrix CMOS image sensor, ensuring repeatability of ΔEab within 0.02 and internal error control of ΔEab up to 0.15. Its versatility is reflected in three customizable measurement aperture options (Φ18 mm, Φ8 mm, and Φ4 mm), allowing for the evaluation of large and fluorescent samples as well as the measurement of gloss factors and color coordinates on traffic signs and reflective films. Its 7-inch touchscreen and integrated camera facilitate visual control of the measurement area, optimizing efficiency and precision with every reading.
Market Price
The YR05484 is available on the market at a competitive price range, between $9,870 and $9,880 USD, depending on selected configurations and additional accessories such as the optional micro printer or rotating stand. This investment is strategic for companies aiming to enhance precision in their color quality control processes. For a detailed and customized quote, you can quickly generate one through the Kalstein Plus platform, ensuring a secure and efficient purchasing experience.
Frequently Asked Questions
- What are the recommended applications for the YR05484?
This device is ideal for industries that require precise color control in sectors such as plastic electronics, textile printing, ceramics, and paint. It is also suitable for measuring gloss and color coordinates on traffic signs. - Is it PC-compatible?
Yes, the YR05484 includes color management software that allows PC connectivity, facilitating a detailed and comprehensive analysis of color quality data. - What is its storage capacity?
This model can store up to 1,000 standards and 30,000 samples, making it ideal for maintaining an organized and detailed color data record.
Advantages and Disadvantages
The YR05484 offers several advantages, such as high precision, portability, and the ability to work with a variety of apertures to accommodate different sample types, including fluorescent samples. Its USB and Bluetooth 5.0 connectivity ensures fast and secure data transfer. However, a possible limitation is that it is primarily designed for laboratory applications, which may restrict its use in smaller workspaces or tasks that do not require high-precision measurement.
Field Applications
The YR05484 is particularly effective in quality control laboratories, where precision in color analysis is essential. Its ability to adapt to different orientations and measure large areas makes it ideal for ensuring color consistency at each stage of the production process. Additionally, the SCI/SCE function enables quick and detailed measurement in approximately 3.2 seconds, improving efficiency in industrial environments and facilitating its implementation in various industries.
Recommendations
To maximize the performance of the YR05484, regular calibrations are recommended, and the device should be kept in a clean, dust-free environment. Its full-spectrum LED light source and ultraviolet light inclusion ensure precise measurement, even under special conditions. Request a personalized quote or quickly generate your estimate on Kalstein Plus, and discover how the Portable Desktop Spectrophotometer YR05484 can optimize color control in your industry, improving precision at every production stage and ensuring the visual quality of your products.
Technical Specifications
| Model | YR05484 |
| Optical Geometry | 45/0(45 ring-shaped illumination, 0 degree viewing angle) |
| Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | Enhanced version spectrophotometer, Customized single aperture Φ18/8/4 mm diameter aperture, used in laboratory accurate analysis and transmission; |
| Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be used for fluorescence sample measurement. | |
| It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensors | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0~200% |
| Measuring Aperture | Customized single aperture,LAV:Φ18mm/Φ20mm;MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
| Specular Component | 45/0 |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),
ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, Opacity | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,
F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Measuring Time | About 1.8s |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | / |
| Dimension | L*W*H=370X240X260mm |
| Weight | About 7.8kg |
| Battery | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth ®5.0, trigger switch interface |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture) |

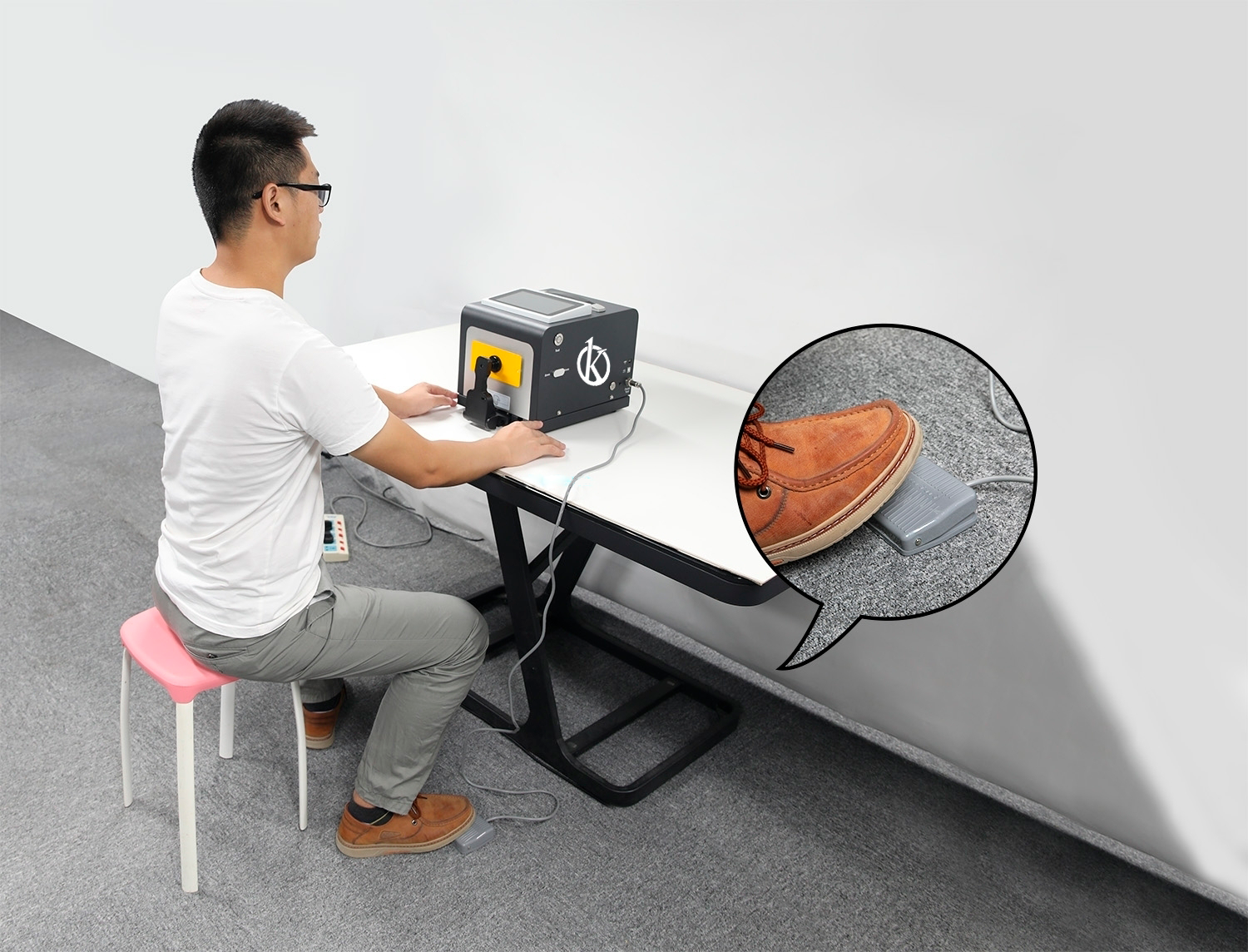

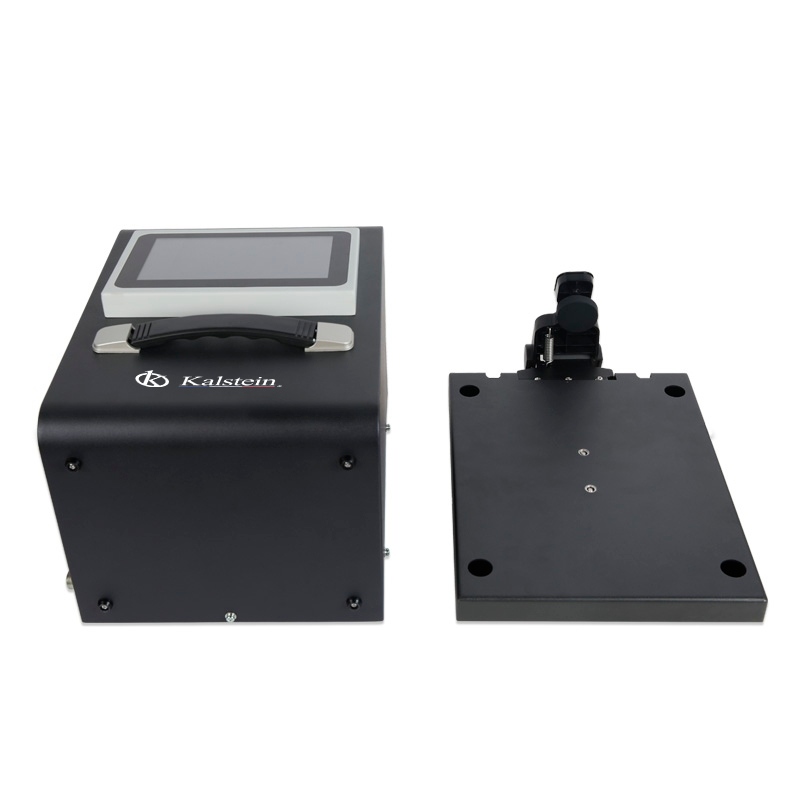

| Optional Accessory | Micro Printer, Foot Switch, Rotating Bracket |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
