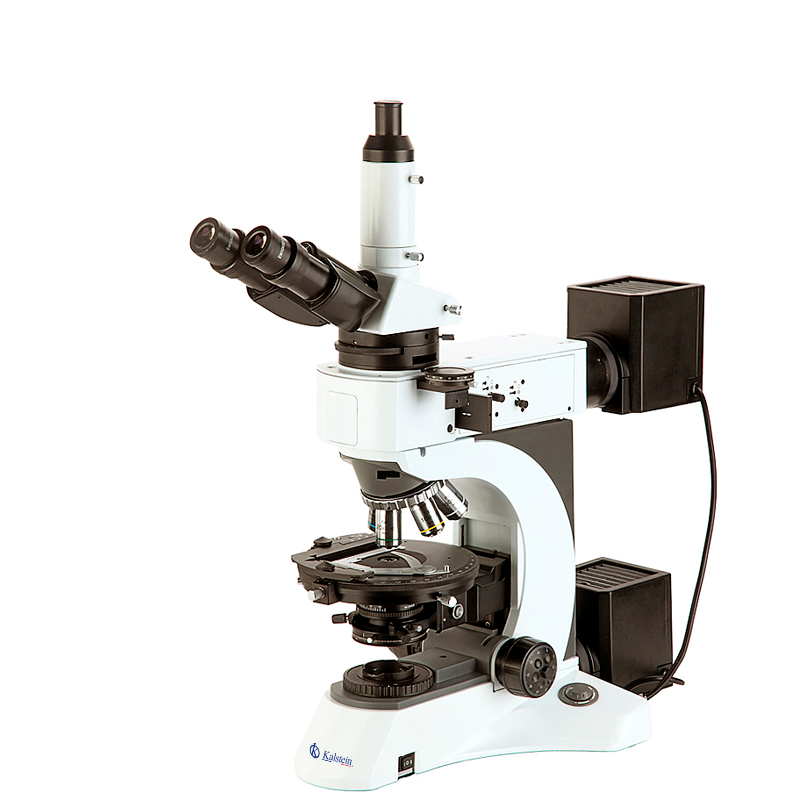

Polarizing Microscope YR0262 - YR0263
Polarizing Microscope YR0262 - YR0263 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
Polarizing Microscope YR0262 - YR0263 is an advanced tool designed for precision and versatility in polarized light microscopy, ideal for research and advanced laboratory use. It boasts a Seidentopf trinocular head offering comfortable observation with a 30° inclined viewing angle and customizable interpupillary distance. Its Infinity Optical System ensures superior image clarity. With a quintuple nosepiece centered for ease of use and an array of achromatic objectives, this microscope ensures detailed and strain-free visualization from 5x to 100x magnification. Additionally, its integrated brightness-adjustable halogen illumination system enhances visibility and contrasts whether you're using reflected or transmitted light.
Market Price
The Polarizing Microscope YR0262 - YR0263 provides cutting-edge features at a competitive price, usually ranging between $2,500 and $3,300 in today's market. This price range reflects the superior technology and precision that the equipment offers, making it an excellent investment for laboratories and research facilities seeking reliable and high-quality microscopy solutions.
Frequently Asked Questions
Q: Is the microscope compatible with camera adapters?
A: Yes, the microscope is compatible and comes with optional accessories like Photo Adapter and C-Mount options for 0.5x and 1.0x.
Q: Can I adjust the brightness of the light source?
A: Absolutely, the halogen lamps for both reflected and transmitted light are brightness adjustable for optimal observation.
Advantages and Disadvantages
Advantages: The microscope offers high versatility with its rotatable stage and multiple objective lenses, ensuring precise and adaptable imaging for various specimens. The build quality promises durability for rigorous lab settings.
Disadvantages: Its sophisticated features may require a learning curve for new users and a significant budget investment.
Product Use in the Field
The Polarizing Microscope YR0262 - YR0263 is ideal for fields like mineralogy, forensic science, and geology, where understanding the properties of crystals and materials under polarized light is crucial. It aids scientists and technicians in detecting optical variations and stress patterns in samples effectively.
Recommendations
For optimal performance, it is recommended to regularly calibrate the microscope, especially if frequently adjusting the objectives or components. Moreover, periodically clean the lenses and other optical components with appropriate solutions to maintain clarity. Consider using the Kalstein Plus platform to request a quote or generate one automatically to explore this product further.
Features

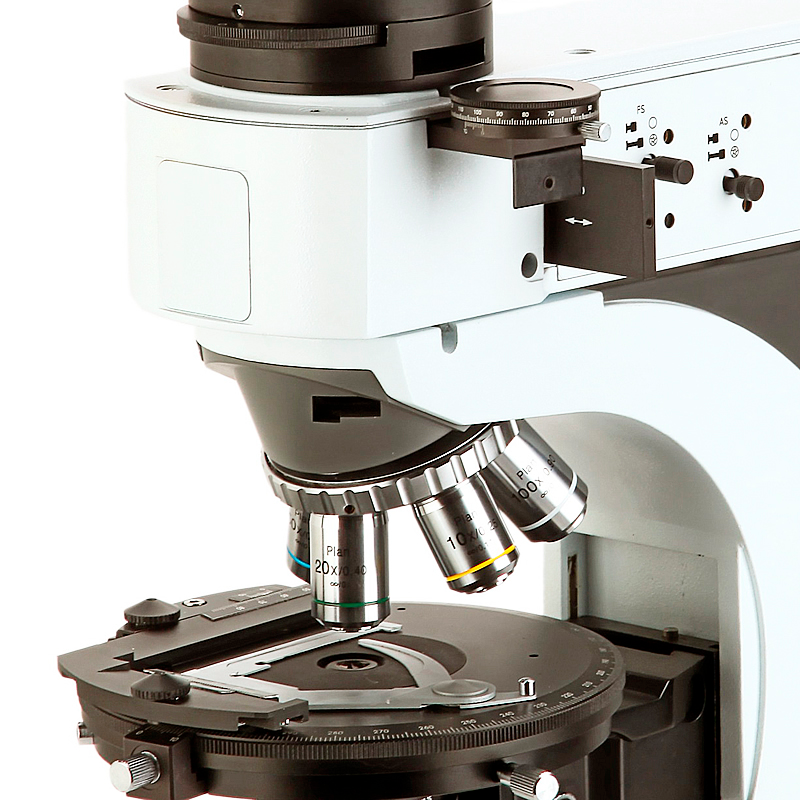

- Quintuple Nosepiece Center Adjustable
- LWD Strain-free Infinity Plan Objectives 5x10x40x100x
- Round Stage Dia.170mm Center Adjustable
- Analyzer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit & Reflect Halogen 24V100W Brightness Adjustable
Technical Specifications
| Model | YR0262 | YR0263 | ||||
| Optical System | Infinity Optical System | |||||

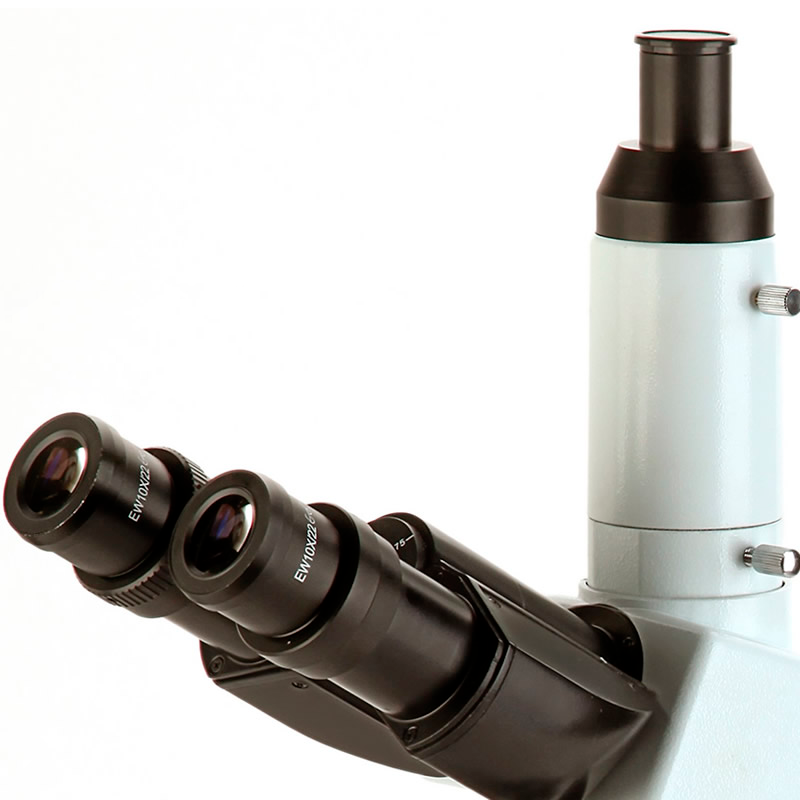

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |||||
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |||||
| Plan Eyepiece With Scale of Crosshair | ||||||
| Plan Eyepiece With Cross | ||||||
| Plan Eyepiece With Gridding | ||||||
| Nosepiece | Backward Quintuple Nosepiece | |||||
| Objective | Strainfree LWD Infinity Plan Achromatic Objective | 5x/0.12/∞/- W.D.15.5mm | ||||
| 10x/0.25/∞/- W.D.10mm | ||||||
| 20x/0.4/∞/0 W.D.4.3mm | ||||||
| 50x/0.75/∞/0 W.D.0.32mm | ||||||
| 100x/0.8/∞/0 W.D.2mm | ||||||
| Strainfree Infinity Plan Achromatic Objective | 40x/0.65/∞/0.17 W.D.0.54mm | - | o | |||
| 100x/1.25/∞/0.17 W.D.0.13mm | - | o | ||||
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |||||
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |||||
| --Switch Between Orthoscopic And Conoscopic Observation | ||||||
| --Bertrand Lens Postion Adjustable | ||||||
| --Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||||||
| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |||||
| 360° Scale, Minimum Division 1° | ||||||
| Minimum Reading 6' By Means of Vernial Scale | ||||||
| 45° Click Stop Knob | ||||||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |||||

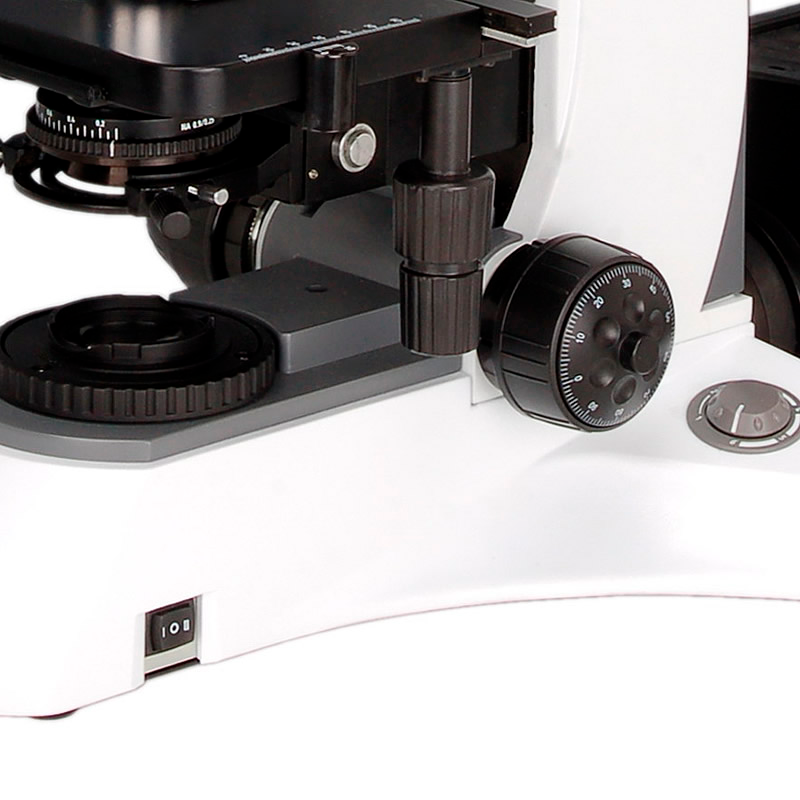

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |||||
| Polarizer | For Reflect: Fixed Polarizer | |||||
| For Transmit: 360° Rotatable Polarizer, 0° Position Adjustable | - | o | ||||
| Illumination | Reflect Light Halogen Lamp 24V100W, Brightness Adjustable | |||||
| Transmit Light Halogen Lamp 24V100W,Brightness Adjustable | - | o | ||||
| Blue Filter, Dia.45mm | ||||||
| Reflect, Reflect & Transmit Polarizing Microscope Optional Accessories | ||||||
| Stage | Attachable Stage, Moving Range 30*40mm | YR0263-op1 | ||||
| Filter | For | Netural Filter ND25, Dia.45mm | YR0263-op2 | |||
| Transmit Light: | Netural Filter ND6, Dia.45mm | YR0263-op3 | ||||
| For | Blue Filter, Dia.25mm | YR0263-op4 | ||||
| Reflect Light: | Netural Filter ND25, Dia.25mm | YR0263-op5 | ||||
| Netural Filter ND6, Dia.25mm | YR0263-op6 | |||||
| Adapter | Photo Adapter | YR0263-op7 | ||||
| C-Mount 1.0x | YR0263-op8 | |||||
| C-Mount 0.5x | YR0263-op9 | |||||
Technical specifications

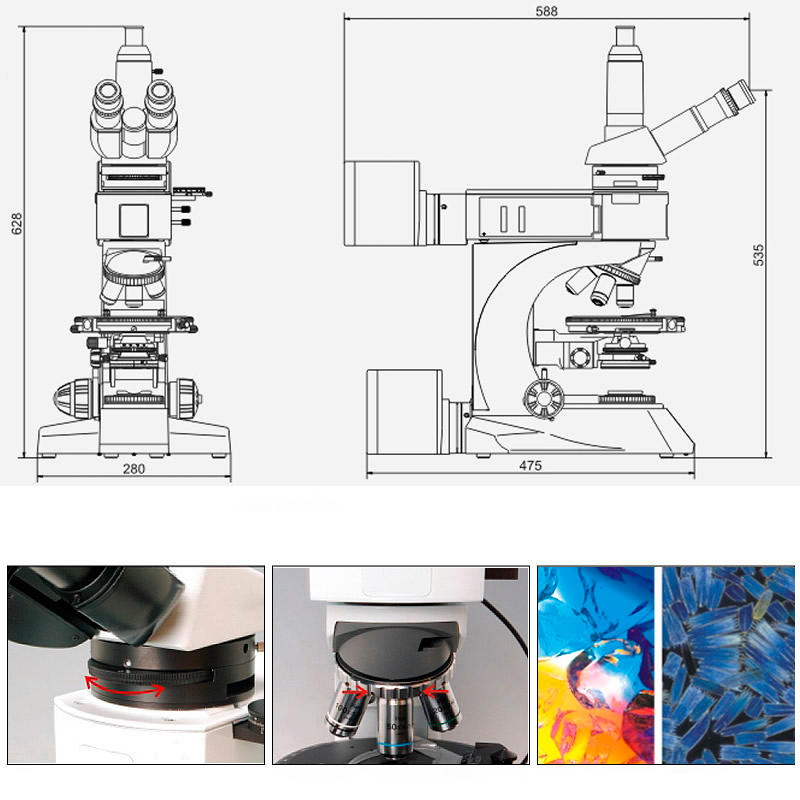

| Dimensions | L 46.3 × W 38.4 × H 83 cm |
|---|---|
| Weight | 16.5 kg |
| Manufacturer | Kalstein |
