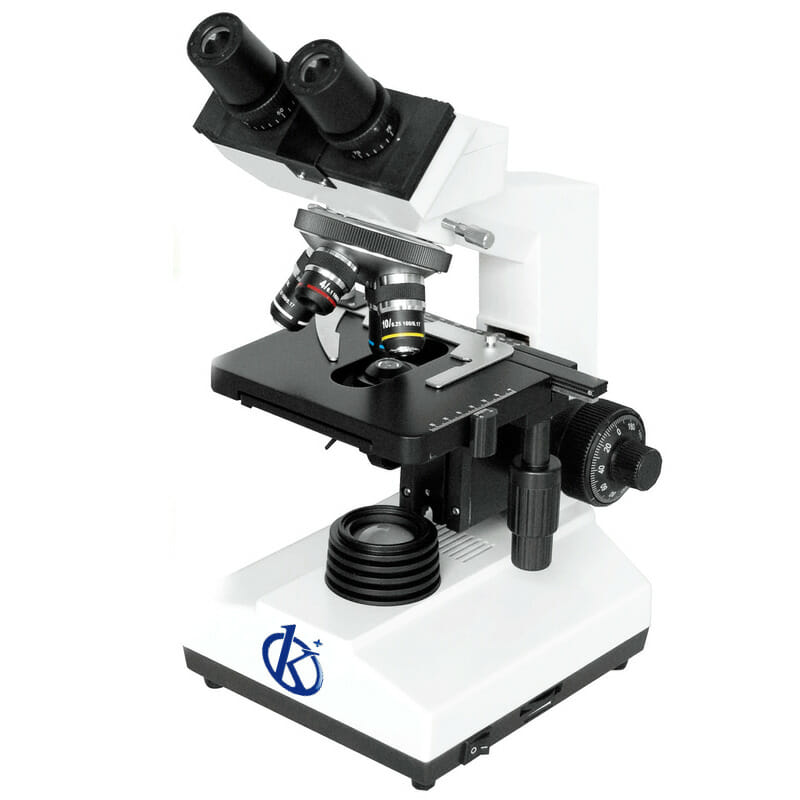

Phase contrast microscope YR05792-1
Phase contrast microscope YR05792-1 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Phase Contrast Microscope YR05792-1 offers superior imaging capabilities with its classic 107BN biological phase contrast version. Equipped with a phase contrast objective of 40x and a phase contrast condenser optimized for the same magnification, this microscope ensures exceptional clarity and detail in your observations. It comes with a 10x centering telescope and a useful green filter, with optional enhancements available for 40x and 100x magnifications. The large mechanical stage measures 140x140 mm with a movable range of 50x75 mm, providing ample space for specimen examination. Additionally, the adjustable 3W LED light source guarantees high brightness for your optimal viewing experience.
Market Price
The Phase Contrast Microscope YR05792-1 typically falls within a competitive price range for high-quality laboratory equipment. Depending on the supplier, prices can range from $500 to $1,200, providing an excellent investment for laboratories, educational institutions, and research facilities seeking reliable imaging solutions.
Frequently Asked Questions
What type of power supply does this microscope require? It operates on an AC power supply ranging from 110V to 240V.
Is the LED light source interchangeable with halogen? Yes, this model supports both halogen (6V20W) and LED light sources.
Advantages and Disadvantages
Advantages: The primary advantages include exceptional imaging quality due to the phase contrast technology and high versatility with adjustable light intensity. The large mechanical stage with precise adjustments enhances usability for detailed study.
Disadvantages: Depending on usage preferences, some users might find the initial setup slightly complex, and additional accessories like optional objectives may increase the overall cost.
Field Usage
This phase contrast microscope is ideal for observing live cells and tissues, biological samples, and other transparent specimens. Its design facilitates easy adjustments during extended research, making it a preferred choice for laboratory settings and advanced research applications.
Recommendations
To maximize the benefits of your Phase Contrast Microscope YR05792-1, regularly clean the lenses and light source, adjust the mechanical stage precisely, and consider acquiring optional lenses for expanded functionality. To explore pricing options or generate a quotation, we invite you to contact us or use our Kalstein Plus platform for an automatic quotation.
Feature Highlights
- Classic 107BN biological microscope phase contrast version
- Phase contrast objective 40x, with optional PH 40x, 100x enhancements
- Includes a 10x centering telescope and green filter
- Comes with an expansive 140x140 mm large mechanical stage
- Equipped with a high-brightness adjustable 3W LED light source
Technical Specifications
| Model | YR05792-1 |
| Phase contrast | 40x phase-contrast objective, Abbe NA1.25 condenser, 40x phase-contrast diaphragm, 10x telescope, green filter |
| Type of power supply | AC 110V-240V |
| Transmitting Light | Halogen 6V20W or LED |
| Type of light source | halogen |
| Capacitor NA | Mirror |
| Capacitor type | 1.25 |
| Capacitor characteristics | Abbe + Iris diaphragm |
| Focusing scale | Filter holder |
| Focus range | Iris diaphragm |
| Type of approach | Rack and pinionↆ↑. |
| Focusing functions | 0.002 mm |
| Working in motion stage | 37.7 mm |
| Size of the working stage | Coaxial Coarse and Fine |
| Type of work stage | Adjustable tension |
| Target | Safety stop locking ring |
| Type of target | 50x75mm, Accuracy 0.1mm |
| Nozzle holes | 140x140mm |
| Nozzle characteristics | 2 mechanical layers |
| Ocular | Achromatic 4x/0,10, 10x/0,25, 100xs/1,25 (oil) |
| Eyepiece diameter | Achromatic |
| diopter of the head | 4 holes |
| interpupillary head | Exterior |
| Head rotation | WF10x/18 mm, 2 pcs. WF16x/11 mm, 2 pcs. |
| Head tilt | 23.2 mm |
| Head type | Both tubes adjustable |
| Standard extension | 55~75mm |
| Optical system | 360° head rotation |
| Standard function | 45° |
Technical specifications
| Dimensions | L 35 × W 30 × H 53 cm |
|---|---|
| Weight | 6.5 kg |
| Manufacturer | Kalstein |
Video Phase contrast microscope YR05792-1
Frequently asked questions
How to know the prices of Phase contrast microscope YR05792-1?
To know the price of Phase contrast microscope YR05792-1, please send us an email with your request through the contact form AQUI.
What are the delivery times for Phase contrast microscope YR05792-1?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Phase contrast microscope YR05792-1?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Phase contrast microscope YR05792-1?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Phase contrast microscope YR05792-1?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
