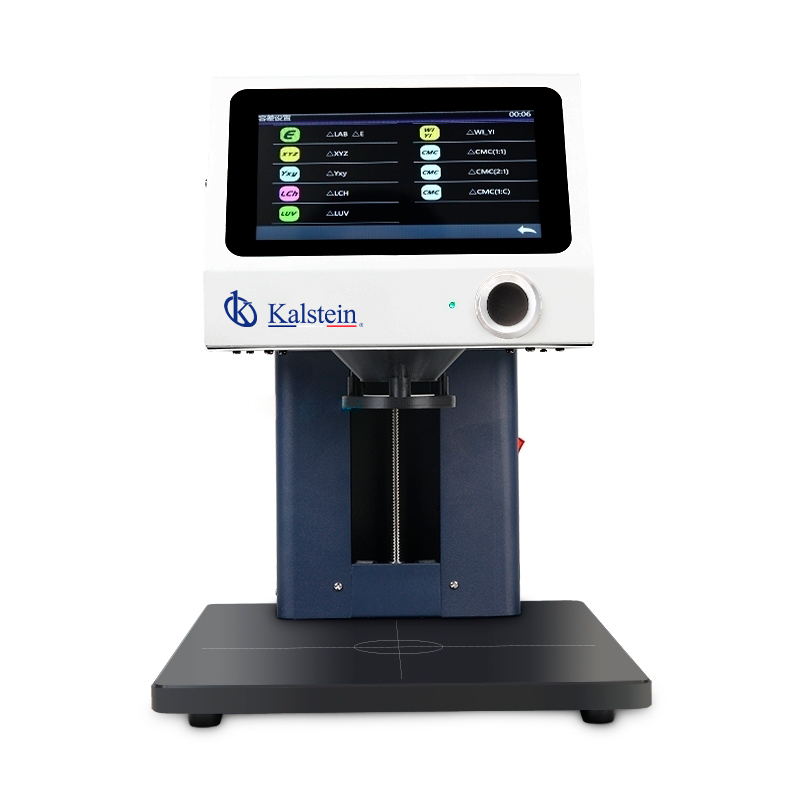

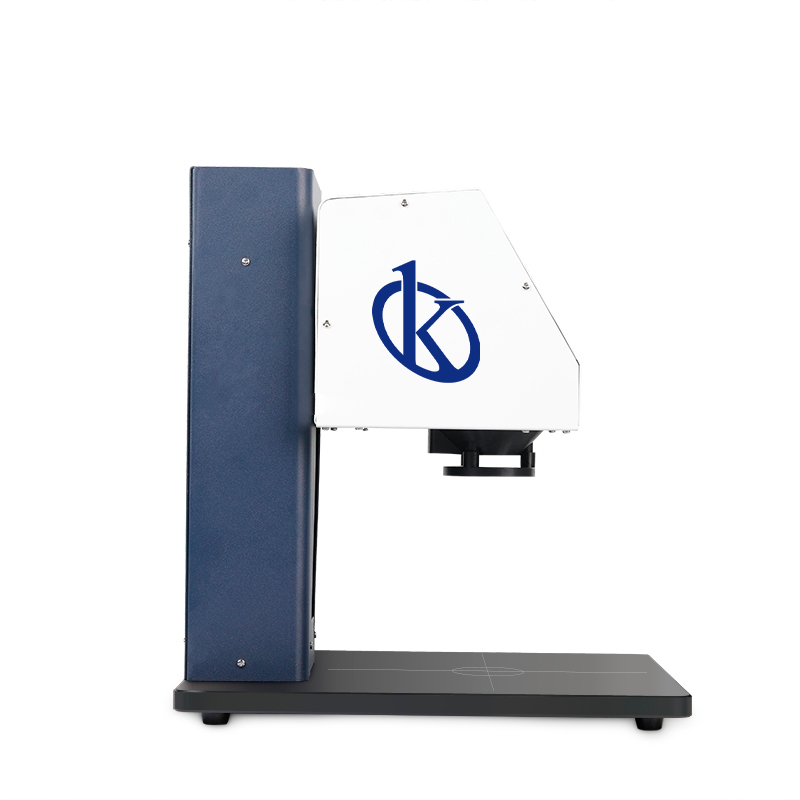

Non-contact Benchtop Spectrophotometer YR05482

The YR05482 non-contact desktop spectrophotometer is an advanced tool developed by Kalstein to perform precise color measurements using 45/0 optical geometry (45° ring illumination and vertical viewing). This device is designed for non-contact analysis on a wide range of samples, including liquids, sauces, powders, and sensitive materials, which helps to prevent damage and cross-contamination. With a full-spectrum LED and ultraviolet light source, the YR05482 offers excellent precision and stability in each measurement. Additionally, its dual-array 256-pixel CMOS sensor and concave grating technology ensure superior optical resolution and detailed, reliable color data.

Market Price

The YR05482 is priced in the range of $10,320 to $10,350 USD, a competitive value considering its precision and advanced technology. This spectrophotometer is an ideal investment for industries such as cosmetics, food, plastics, ceramics, and many more, where quality control and color analysis are essential. You can get a personalized quote with no obligation through the Kalstein Plus platform, where you can adjust the specifications to your needs and receive a detailed budget.

Frequently Asked Questions

• Is it suitable for measuring fluorescent samples? Yes, the YR05482 is designed to measure color in fluorescent samples, ensuring high precision.
• How much data can the device store? It can store up to 50,000 records, including 40,000 in sample mode and 10,000 in continuous statistics mode.
• Is the sample height adjustable? Yes, the measurement head can automatically move according to the sample height, and the height configuration can be stored.

Advantages and Disadvantages

This spectrophotometer has multiple advantages, such as its non-contact design that prevents contamination and damage to samples, and its ability to work with different light sources and color spaces. Additionally, its 7-inch touch screen interface facilitates real-time operation. As a drawback, this model may require periodic calibrations to maintain its precision in high-use environments.

Field Use

The YR05482 is ideal for applications in research and development laboratories, as well as in automated production lines that need to measure color accurately in products such as cosmetics, food, inks, and electronic materials. Its ability to measure color in moving samples and fluorescent materials allows it to optimize quality control across a variety of industries.

Recommendations

To maximize the performance of the YR05482, periodic calibrations are recommended, and the device should be kept in a clean and controlled environment. Correctly adjusting the height and measurement mode according to the sample type ensures precise and consistent results. Request your personalized quote through Kalstein Plus and discover how the YR05482 non-contact desktop spectrophotometer can transform your quality control processes, ensuring high-precision measurements in every application.

Technical Specifications

Model	YR05482
Illumination system	45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features	45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries, and also for fluorescence sample measurement.
Light Source	Full spectrum LED light,UV light
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400~700nm/10nm output
Reflectance Range	0~200%
Measuring Aperture	Φ20mm(can be customized <20mm)
Non-contact Distance	7.5mm
Sample Height	0~150mm
Distance Adjustment Method	Manual adjustment and automatic adjustment (test height can be stored)
Measuring mode	Sample mode/QC Mode/Continuous statistics mode
Locating Method	Camera Locating
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula	ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),TI(ASTM E313,CIE/ISO),
	Metamerism Index MI, Staining Fastness,Color Fastness,Color Strength,Opacity
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
Measuring Time	About 1.5s
Data Storage	Sample mode + QC mode: 40,000; Continuous statistics mode: 10,000
Repeatability	Spectral reflectance: Standard deviation within 0.08%
	Chromaticity value: Within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	Within ΔE*ab 0.2（Average for 12 BCRA Series II color tiles)
Measurement Mode	Single Measurement, Average Measurement(2 ~ 99 times)
Dimension	330*250*370mm
Weight	About 10 kg
PowerSupply	DC 24V, 3A Power Adapter
Illuminant Life Span	5 years, more than 3 million times measurements
Display Screen	7″ TFT Capacitive Screen-touch Display
Data Port	USB/RS-232, Bluetooth®4.0
Language	Simplified Chinese,Traditional Chinese,English
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory	Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity,
Notes	The specifications are subject to change without notice.
