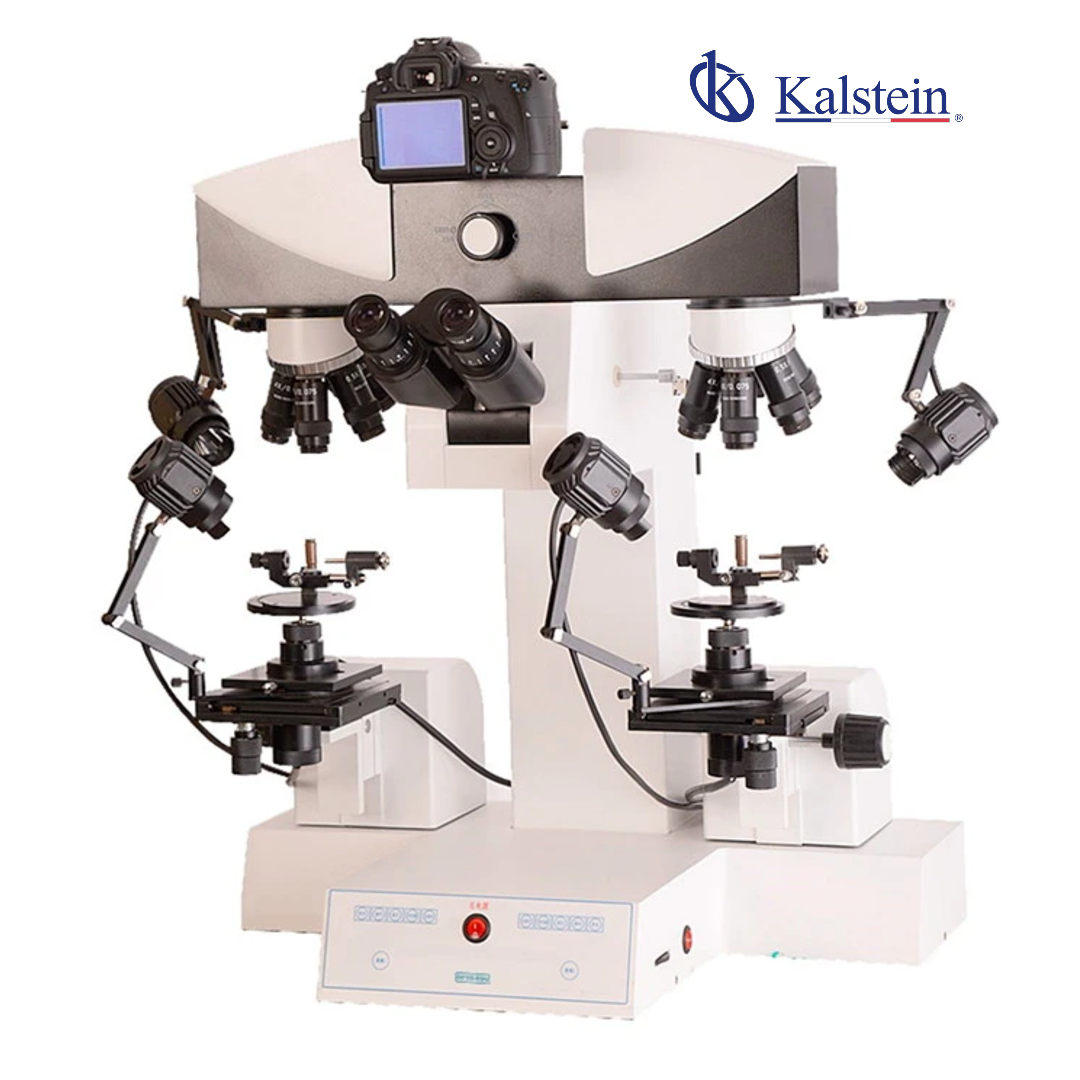

    Motorized Forensic Comparison Microscope YR06681

    Manufacturer: Kalstein

    Manufacturer: Kalstein

    1
    Certified warranty
    International shipping
    CE Certification
    Technical support

    Description

    The YR06681 Motorized Digital Forensic Comparison Microscope, newly developed in 2013, is a state-of-the-art instrument designed specifically for research work in forensic science laboratories. It is the ultimate tool for comparing all types of bullets, cartridge cases, sharp objects, and paper documents. This system can be fully controlled either manually or via professional computer software. With its built-in high-resolution color digital camera, it provides real-time image and video output to a computer. When paired with professional crime image analysis software, it becomes an ideal workstation for forensic scientists. Offering a full range of comparison system functions and consistent quality at a very competitive price, it is the premier choice for modern forensic investigation.

    Design and Technology (or Functionality)

    The YR06681 integrates advanced mechanical and optical engineering to provide a seamless comparison experience. Its core technology includes:
    • Motorized Control System: Effortless control over X/Y/Z 3D movement of the working stages, as well as the rotation of the round stage, all manageable through a touch panel or software.
    • Optical Excellence: Features a 6-hole click-stop nosepiece with LWD Infinity Plan Achromatic objectives (0.5x to 6x) and a magnification correction system to ensure precise matching.
    • Advanced Comparison Modes: Motorized switching between full left image, full right image, split-image comparison, or overlapping (superimposed) image comparison.
    • Comprehensive Illumination: A versatile lighting suite including 50W cooling-fan halogen lights, 5W LED cold lights, and specialized attachments for coaxial, polarized, and ultraviolet (UV) light.
    • Integrated Imaging: A built-in 3.0M pixel CCD camera (2048*1536 resolution) ensures high-fidelity image capture via USB 2.0.

    Frequently Asked Questions (FAQ)

    • Can the comparison modes be adjusted manually? Yes, the system allows for both motorized and manual control for switching between left/right, split-image, or overlapping views.
    • What is the benefit of the Coaxial Light lens? The coaxial light is specifically designed for observing deep holes or smooth, reflective surfaces where standard side lighting would create shadows or glare.
    • Does the system include bullet holders? Yes, the package includes a set of two standard bullet holders and a universal holder set designed for various bullet types, cartridges, and other forensic objects.

    Advantages and Disadvantages (Pros and Cons)

    Advantages
    • Wide Magnification Range: Offers a total magnification from 2x up to 240x.
    • Hybrid Control: The flexibility of choosing between motorized precision and manual tactile control.
    • Professional Software: Includes specialized forensic image analysis software for evidence documentation.
    • Wide Voltage Range: Compatible with 80V~240V power supplies for global use.
    Disadvantages
    • Complexity: The wide range of motorized features and software tools may require initial technical training.
    • Stationary Design: Given its size and weight, it is intended as a permanent laboratory fixture rather than a portable unit.

    Technical Specifications

    Parameter YR06681
    Total Magnification 2x ~ 240x
    Viewing Head Binocular 0-45° Inclinable, Interpupillary 48-75mm, Diopter +/-5
    Eyepieces WF10x/22mm and WF20x/12mm (High Eyepoint)
    Nosepiece 6-Hole Click-Stop Nosepiece
    Objectives LWD Infinity Plan Achromatic 0.5x, 1x, 1.5x, 2x, 4x, 6x
    Auxiliary Lens 0.4x and 2.0x (Included)
    Working Distance 101 mm
    Field of View Diameter 2.3 mm ~ 62 mm
    Magnification Correction Correction system with dedicated lens
    Separation Line Adjustment Metal adjustment controller on the back
    Working Stage Square 90x90mm, X/Y/Z Motorized 54x54x54mm
    Round Stage Dia. 90mm, 0-45° Tilt, 360° Motorized/Manual Rotation
    Halogen Illumination 2 units x 12V 50W with cooling fan, adjustable
    LED Illumination 2 units x 5W Cold Light, high brightness, adjustable
    Optical Attachments Coaxial, Polarized, UV lens, and Filters (R, B, Y, G)
    Built-in Camera 3.0M Color CCD, USB 2.0, 2048*1536 pixels
    Software Professional Forensic Image Analysis Software
    Comparison Control Motorized/Manual Split, Full, or Overlay image
    Power Supply Wide range voltage 80V ~ 240V
    Instrument Dimensions 40 x 60 x 72 cm
    Product Weight Approx. 45 kg
