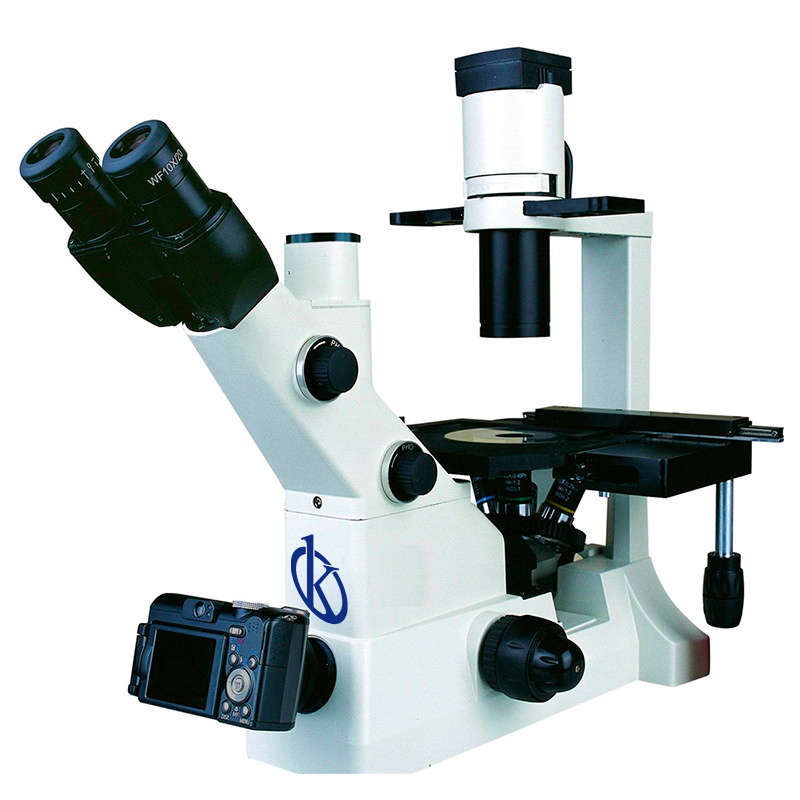

Inverted Microscope YR0245

The optical microscope or organic microscope is an instrument equipped with a lens and an eyepiece to enhance the image of an object to perceive details. This is the perfect tool for your infinitely small conquest. The laboratory microscope is used for routine use. It enables the infinitely small to be visualized with great precision and impeccable image quality. Therefore, our selection highlights efficient, ergonomic and robust microscopes, essential features for high-quality observation.

Technical Specifications

Modelo		YR0245
Optical System	Infiniy Optical System
Head	Siedentopf Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary 48-75mm
Eyepiece	Wide Field Eyepiece WF10×/22,Eyepiece Tube Diameter 30mm
Nosepiece	Backward Quintuple Nosepiece
Objective	LWD Infinity Plan Achromatic Objective 4x//0.10 W.D.=22
	LWD Infinity Plan Phase Contrast Objective	10x/0.25 W.D.=6
		20x//0.4 W.D.=3.1
		40x/0.55 W.D.=2.2
Focusing	Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving Range Up 4.5mm / Down 4.5mm
Condenser	ELWD Condenser N.A.0.3, Long Working Distance 72mm,
	Without Condenser Reach 150mm Enough For Petri Dish
Phase Contract	Centering Telescope (φ30mm)
	Phase Annulus Plate 10x,20x,40x (Adjustable)
Working Stage	Large Plain Working Stage 230×170mm
	Glasse Insert
	Attachable Mechanical Stage,X,Y Coaxial Control,Moving Rang 80×120mm
	Auxiliary Stage
	Terasaki Holder
	Petri Dish Holder φ38
	Petri Dish Holder φ54
Illumination	6V/30W Halogen Lamp, Brightness Adjustable
Filter	Blue,Green, Frosted Glass, DIa. 45mm
Optional Accessories			Item No.
Eyepiece	Wide Field Eyepiece WF15x/16		YR0245-op1
	Wide Field Eyepiece WF20x/12		YR0245-op2
Objective	Lamp House Adjustment Objective		YR0245-op3
Adapter	1.0x C-Mount		YR0245-op4
	0.5x C-Mount		YR0245-op5
