Description

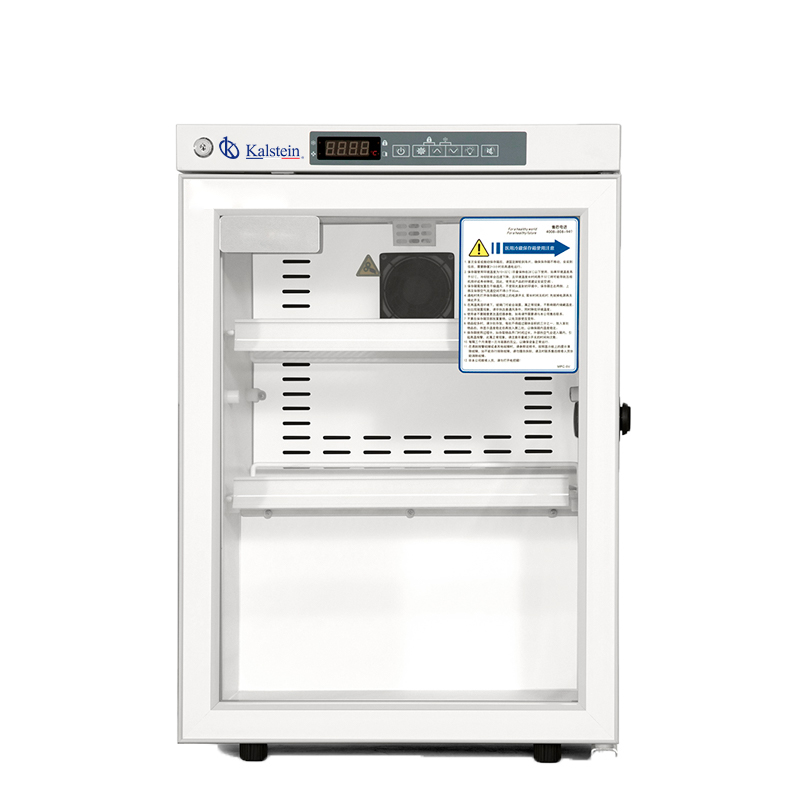

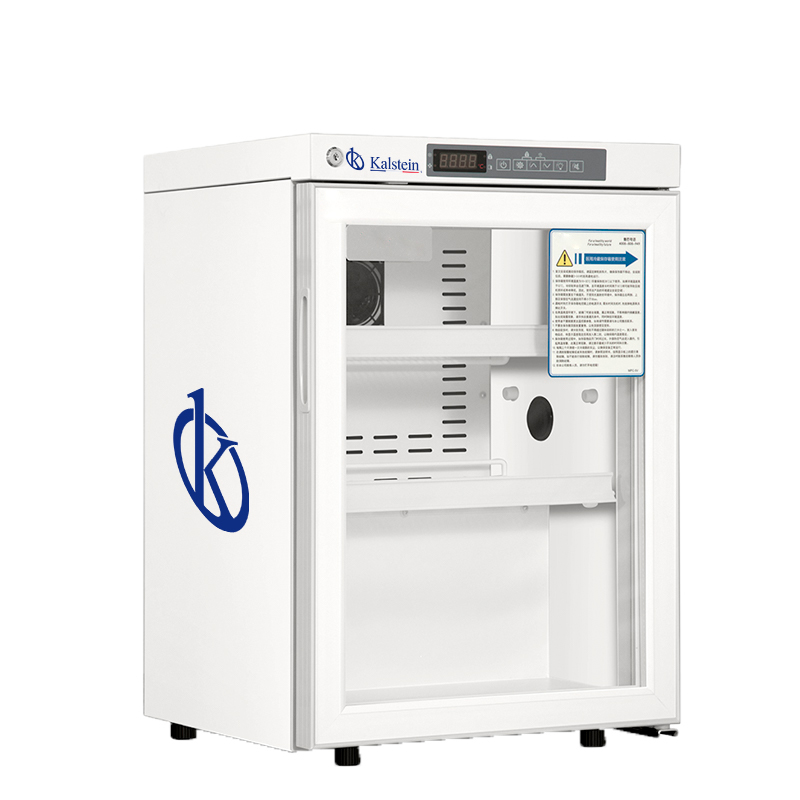

The Medical Refrigerator YR05083 is an essential asset for any healthcare facility focused on maintaining the integrity of sensitive medical and pharmaceutical products. Tailored for environments such as drug and vaccine stores, pharmaceutical companies, hospitals, and clinics, this refrigerator ensures optimal storage conditions with a stable temperature range of 2-8ºC, managed by a sophisticated microprocessor control system. Equipped with a digital LED display for precise temperature monitoring and robust safety alarms, it safeguards against high/low temperature deviations, power failures, and door ajar situations. Designed for efficiency, this medical refrigerator features a forced-air cooling system and an efficient compressor, making it both reliable and economical with a daily power consumption of just 0.84 kWh.
Price in the Market
The cost of quality medical refrigeration varies, but the Medical Refrigerator YR05083 positions itself as an affordable yet premium option, generally priced between $500 and $800 in the market. This competitive range ensures that healthcare facilities can stay within budget constraints while procuring advanced refrigeration solutions.
Frequently Asked Questions
- What is the temperature range of this refrigerator? The refrigerator maintains a consistent temperature range of 2 to 8ºC.
- Does it have a safety alarm system? Yes, it includes visual and audible alarms for temperature deviations, power failures, and door ajar warnings.
- What is the power consumption? The unit consumes approximately 0.84 kWh/24h.
Advantages and Disadvantages
The Medical Refrigerator YR05083 offers numerous advantages such as precise temperature control, a robust alarm system, and energy efficiency. However, potential drawbacks could include its limited interior size compared to larger models and reliance on a specific voltage range (187V~242V).
Use of the Product in the Field
In practical settings, the Medical Refrigerator YR05083 is relied upon for the safe storage of vaccines, medications, and sensitive biologic products. Its compact size allows it to be conveniently placed in various professional settings, ensuring critical supplies are stored at optimal temperatures for extended periods.
Recommendations
Regular maintenance of the Medical Refrigerator YR05083 is recommended to ensure its longevity and functionality. This includes periodic cleaning of the interior and exterior surfaces and ensuring that the refrigerator is located in an area with stable ambient temperatures between 10ºC and 32ºC.
Features
- Adjustable temperature range (2-8ºC) controlled by a microprocessor.
- Permanently lubricated cooling fan for enhanced safety and longevity.
- High-efficiency compressor with reliable field performance.
- Visual and audible alarm system for critical storage conditions.
- Optimized space utilization with adjustable shelving.
Technical Specifications
| Model | YR05083 | |
| Specifications | Shelf/drawer | Shelves/2 |
| Cooling method | Forced Air Cooling System | |
| Defrost | Auto | |
| Refrigerant | R600a | |
| Power consumption(kWh/24h) | 0.84 | |
| Noise(db) | 50 | |
| Ambient temperature(ºC) | 10~32ºC | |
| Temperature range(ºC) | 2~8ºC | |
| Cooling system | Compressor brand/QTY | China Brand/1 |
| Sensor Type | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 72W | |
| Current(A) | 0.59A | |
| Material | Inside material | Color sprayed steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 60/2.11 |
| NT./GT.(kg) | 33/37 | |
| Exterior size(W*D*H)(mm) | 495*450*710 | |
| Interior size(W*D*H)(mm) | 410*315*560 | |
| Package size(W*D*H)(mm) | 558*510*760 | |
| CBM | 0.22 | |
| 20GP/40GP/40HQ | 132/276/276 | |
| Alarm | High/low temperature | Y |
| Power failure | Y | |
| Thermostat failure | Y | |
| Backup battery failure alarm | / | |
| Condenser fault alarm | / | |
| Ambient Temperatures | / | |
| Voltage abnormality alarm | / | |
| Door ajar | Y | |
| System abnormal alarm | / | |
| Power failure backup system(alarm) | 8h | |
| Accessories | Foot | Y |
| Castor | / | |
| Outer door/Type | 1/Glass/Low-E | |
| Door Lock | 1 | |
| Test hole QTY/diameter | 1/25mm | |
| Lamp | LED | |
| USB port | / | |
| Temperature recorder | Optional | |
| Remote alarm port | Y | |
| RS232/485 port | / | |
| Other | Certification | ISO9001/13485/14001;CE |
