Description

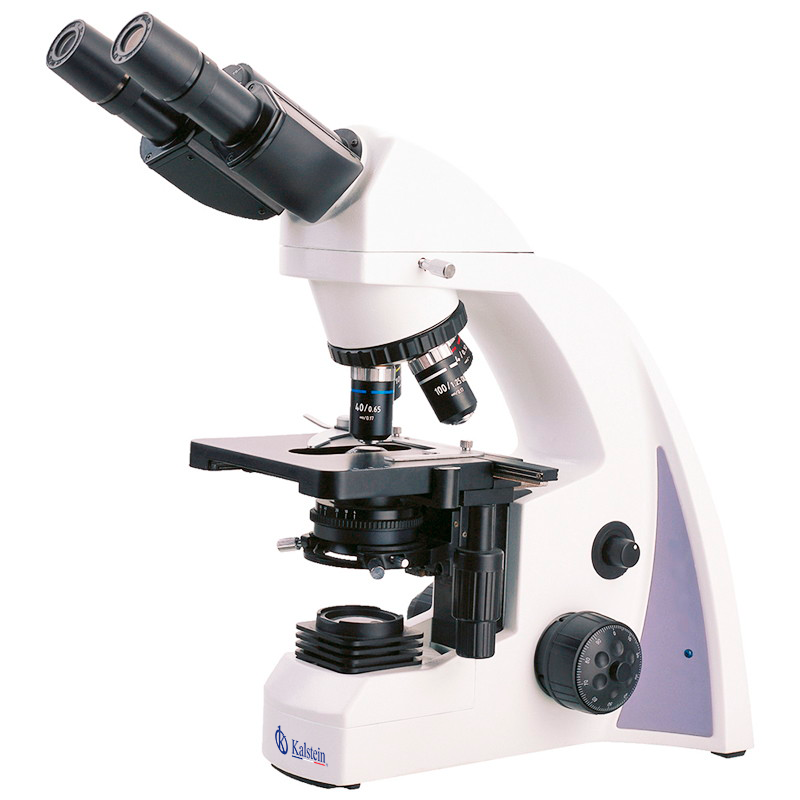

The Laboratory Microscope YR0237 is an advanced instrument designed to meet the needs of laboratories, educational institutions, and professionals who require precise and reliable observations. This microscope features a Seidentopf Binocular Head with an inclination of 30°, offering comfortable viewing for extended sessions. The Wide Field Eyepieces WF10x/18mm and Infinity Semi-Plan Achromatic Objectives provide exceptional clarity, allowing users to examine specimens with varying magnifications of 4x, 10x, 40x, and 100x. The microscope also includes a Double Layer Mechanical Stage for precise specimen positioning, and S-LED Illumination with adjustable brightness to ensure optimal lighting conditions. For those interested in upgrading, a range of optional accessories is available to extend the microscope’s capabilities further.
Market Price
In the current market, high-quality laboratory microscopes like the YR0237 are priced between $500 and $800. This price range reflects the advanced features and precise engineering essential for detailed scientific work. Given these competitive prices, investing in such an instrument ensures you receive top-notch quality and durability.
Frequently Asked Questions
- What is the main use of the Laboratory Microscope YR0237? The microscope is primarily used for biological and educational purposes, allowing for detailed analysis and observation of specimens.
- Can I upgrade or add accessories to this model? Yes, there are several optional accessories available, including various eyepieces, objectives, and illumination kits.
- Is the brightness adjustable on this microscope? Yes, the S-LED Illumination system features adjustable brightness to provide optimal viewing conditions.
Advantages and Disadvantages
One of the main advantages of the YR0237 is its high-quality optics, which provide clear and sharp images. Additionally, the robust construction and ergonomic design make it suitable for prolonged use. However, a potential disadvantage might be the initial learning curve for users unfamiliar with advanced microscope features. Nevertheless, once accustomed, users will find the system straightforward and intuitive.
Product Usage in the Field
The Laboratory Microscope YR0237 is widely used in research labs, schools, and hospitals. Its versatility and precision enable professionals to conduct in-depth analysis in various scientific fields, including microbiology, histology, and biochemistry. The ability to switch magnifications easily and the fine adjustment focusing make it ideal for a range of tasks, from basic observations to more complex investigations.
Recommendations
To maximize the lifespan and performance of your microscope, regularly clean the lenses with suitable optical cleaning solutions and store the microscope under dust covers when not in use. Frequent calibration checks are also recommended to maintain accuracy. Consider using the Kalstein Plus platform to request a quote or to generate an automated quotation for expedient purchasing.
Features

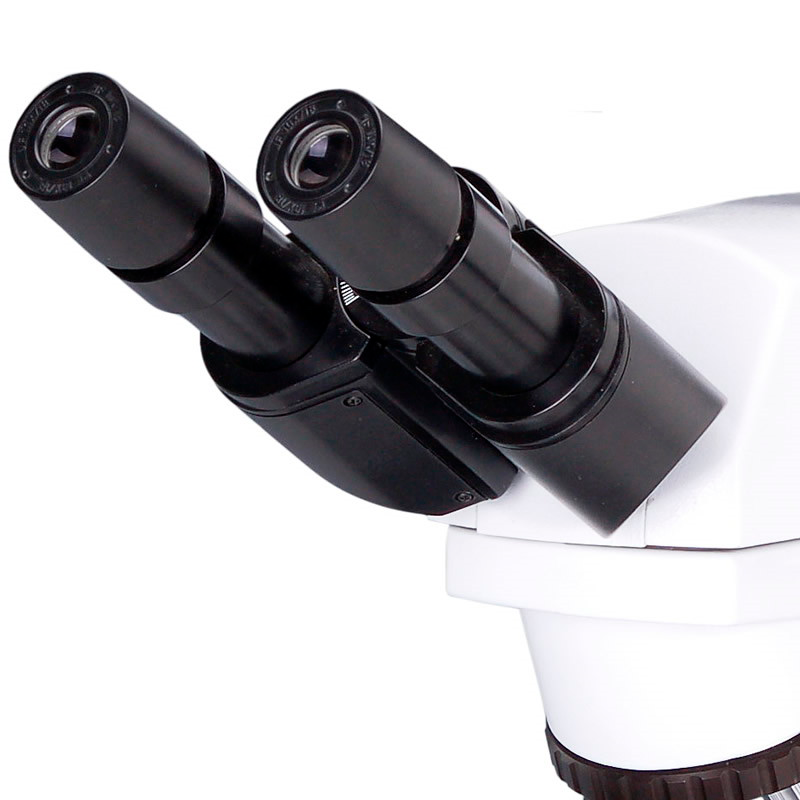

- Seidentopf Binocular Head inclined at 30°, rotating eyepiece tubes
- Wide Field Eyepiece WF10x/18mm
- Infinity Semi-Plan Achromatic Objective (4x, 10x, 40x, 100x)
- Backward Quadruple Nosepiece

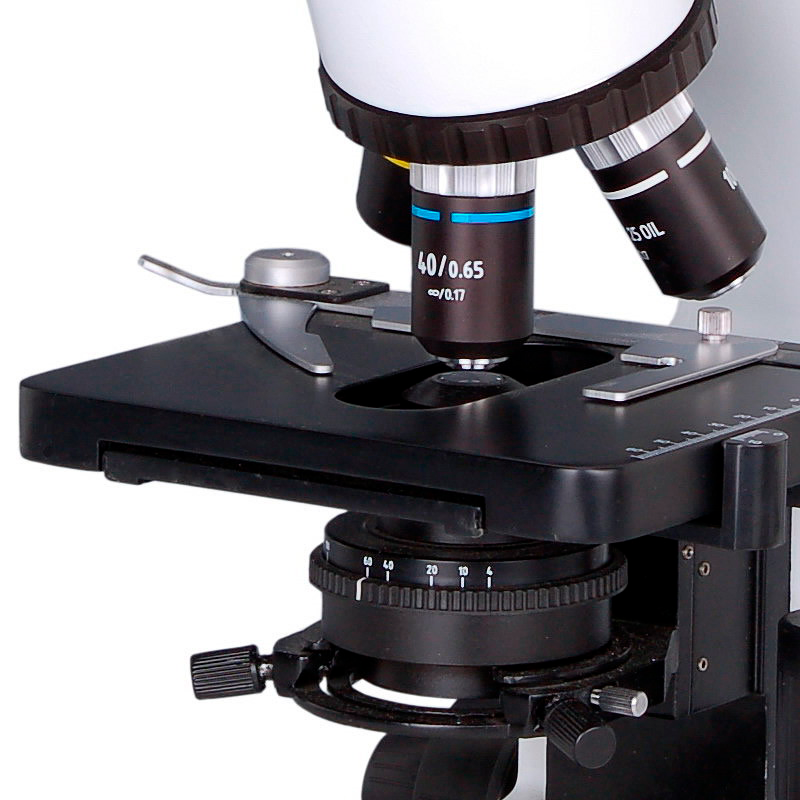

- Double Layer Mechanical Stage

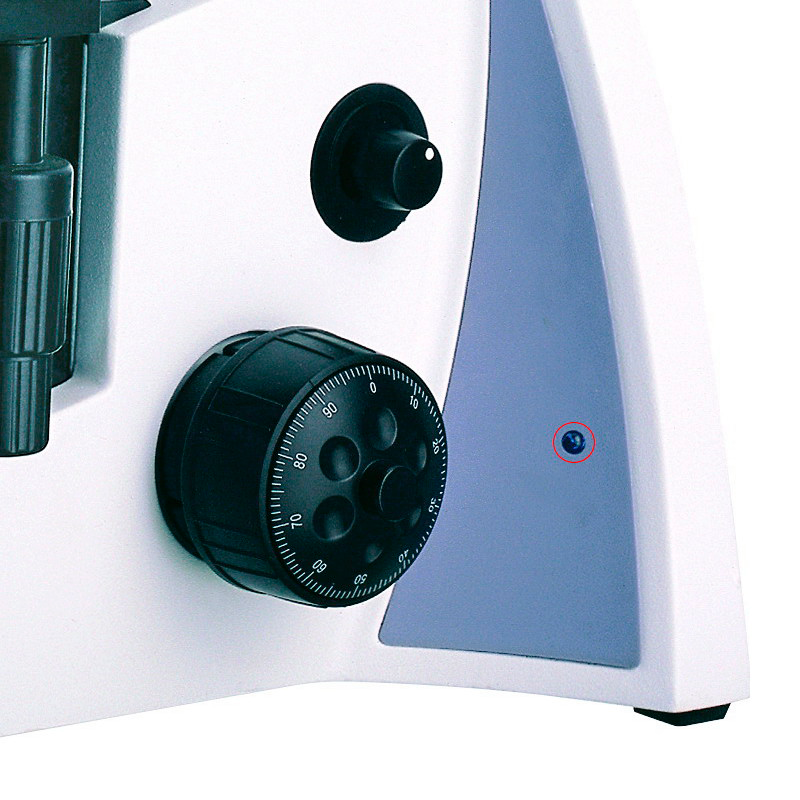

- Coaxial Coarse & Fine Adjustment
- Sliding-in Center Adjustable Condenser N.A.1.25
- S-LED Illumination with adjustable brightness
Technical Specifications
| Model | YR0237 | YR0237-1 | |
| Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | |
| Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | ||
| Eyepiece | Wide Field Eyepiece WF10x/18mm | ||
| Objective | Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x | ||
| Nosepiece | Backward Quadruple Nosepiece | ||
| Stage | Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm | ||
| Condenser | Sliding-in Center Adjustable Condenser N.A.1.25 | ||
| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | ||
| Illumination | S-LED Illumination, Adjustable Brightness | ||
| Laboratory Biological Microscope Optional Accessories | |||
| Eyepiece | WF10x/20mm, Diopter Adjustable | YR0237-1-op1 | |
| Objective | Infinity Plan Achromatic Objective 4x | YR0237-1-op2 | |
| Infinity Plan Achromatic Objective 10x | YR0237-1-op3 | ||
| Infinity Plan Achromatic Objective 40x | YR0237-1-op4 | ||
| Infinity Plan Achromatic Objective 100x | YR0237-1-op5 | ||
| Illumination | 6V20W Halogen Lamp, Brightness Adjustable | YR0237-1-op6 | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.7~0.9 | YR0237-1-op7 | |
| Dark Field Condenser,Immersion, N.A.1.25~1.36 | YR0237-1-op8 | ||
| Dark Field Objective, Infinity Plan 100X, | YR0237-1-op9 | ||
| ForImmersion Dark Field Observation | |||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm | YR0237-1-op10 | ||
| ForImmersion Dark Field Observation | |||
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0237-1-op11 | |
| –Infinity Plan Turret Phase Contrast Condenser | |||
| –Ininity Plan Phase Contrast Objective 4x,10x,40x,100x | |||
| –Centering Telescope 10x | |||
| Infinity Achromatic Turret Phase Contrast Set | YR0237-1-op12 | ||
| –Infinity Achromatic Turret Phase Contrast Condenser | |||
| –IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x | |||
| –Centering Telescope 10x | |||
| LED EPI-Fluorescent Kit | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 | YR0237-1-op13 | |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0237-1-op14 | ||
