Description

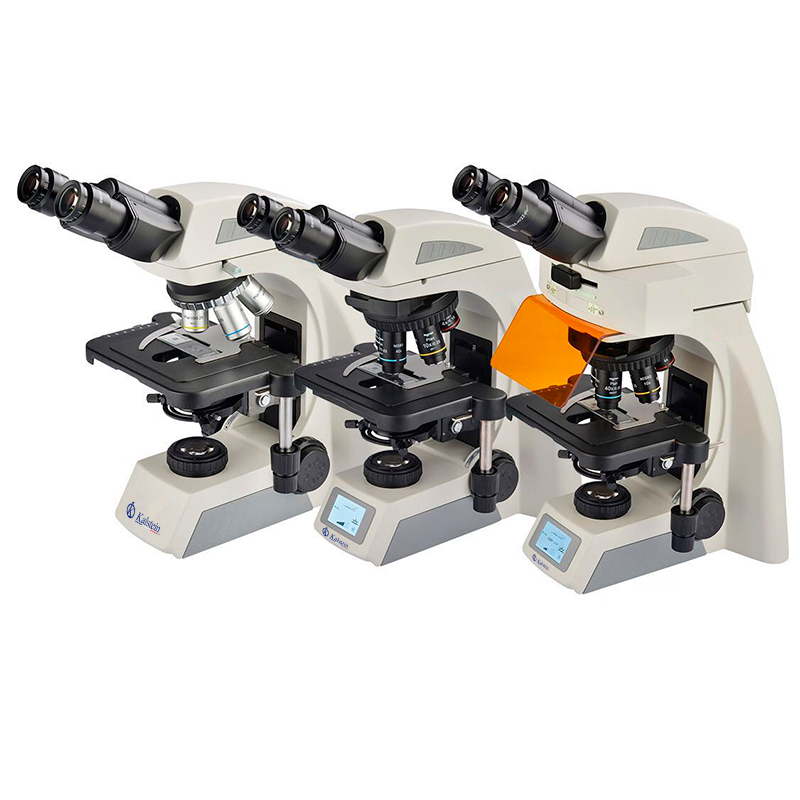

The Laboratory Biological Microscope YR0267A – YR0267B is a state-of-the-art optical device designed for a wide range of biological and clinical applications. With its NIS Infinity Optical System, it promises high contrast and exceptionally flat images, ensuring that every detail is captured with clarity. This microscope features a coded nosepiece that can remember the illumination brightness for each objective, automatically adjusting the light intensity to reduce eye strain and improve efficiency in demanding laboratory environments. Whether you’re using it for bright field, dark field, polarizing, or phase contrast observations, this microscope caters to versatile needs with precision and ease.
Market Price
The average market price for an advanced laboratory microscope like the YR0267A – YR0267B typically ranges between 1000 USD and 1600 USD. This range reflects the advanced features and superior optical quality offered by the device, making it a valuable investment for any laboratory looking to enhance its research capabilities.
Frequently Asked Questions
- What are the main differences between models YR0267A and YR0267B? Both models share similar features, but the YR0267B offers additional options such as a trinocular head and digital camera compatibility.
- Is this microscope suitable for educational purposes? Absolutely, the microscope is ideal for educational settings due to its ease of use and high-quality imaging.
- Can I use this microscope for fluorescence microscopy? Yes, the microscope has optional epi-fluorescence capabilities with available filter attachments.
Advantages and Disadvantages
Advantages: Excellent resolution, customizable illumination, versatile observation methods, and ergonomic design. Disadvantages: Higher price point and dependency on optional accessories for advanced functionalities.
Field Use
In practical scenarios, the Laboratory Biological Microscope YR0267A – YR0267B is used extensively in research laboratories, hospitals, and universities. Its ability to deliver high-quality images makes it essential for precise biological analysis, from routine blood examinations to complex histopathological studies.
Recommendations
To ensure the longevity of your microscope, regular cleaning of optical components with proper tools is recommended. Additionally, consider purchasing a UV shield if you frequently work with fluorescent samples to protect your eyesight. For more detailed setups, exploring additional accessories can further enhance the device’s capabilities.
Key Features
- NIS Infinity Optical System
- Coded nosepiece for automated light adjustment
- Compatibility with multiple observation methods
- Adjustable interpupillary distance and diopter settings
- Wide field eyepieces for enhanced viewing
- Optional digital head for camera integration
Technical Specifications
| Model | Cata. No. | YR0267A | YR0267B | |
| Optical System | NIS Infinite Optical System | ● | ● | |
| Observation Method | Bright Field | ● | ● | |
| Dark Field | ○ | ○ | ||
| Polarizing | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ||
| Epi-Fluorscence | ○ | ○ | ||
| Head | Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op1 | ● | |
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50 | YR0267B-op2 | ● | ||
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0 | YR0267B-op3 | ○ | ○ | |
| Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op4 | ○ | ○ | |
| Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time | YR0267B-op5 | ○ | ○ | |
| Upgrade to A31.1062-5.0M | ||||
| Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet. | YR0267B-op6 | ○ | ○ | |
| Upgrade to A31.1062-5.0W | ||||
| Eyepiece | EW10x/22mm, Diopter Adjustable, Dia.30mm | YR0267B-op7 | ● | ● |
| EW15x/16mm, Diopter Adjustable, Dia.30mm | YR0267B-op8 | ○ | ○ | |
| EW20x/12mm, Diopter Adjustable, Dia.30mm | YR0267B-op9 | ○ | ○ | |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | YR0267B-op10 | – | – |
| Coded Quintuple Nosepiece, Dovetail Interface | YR0267B-op11 | ● | ● | |
| NIS45 | 4x/0.10, W.D.20.6mm | YR0267B-op12 | – | – |
| Infinity Plan | 10x/0.25, W.D.17.9mm | YR0267B-op13 | – | – |
| Objective | 20x/0.40, W.D.6.40mm | YR0267B-op14 | – | – |
| 40x/0.60, W.D.1.50mm | YR0267B-op15 | – | – | |
| 60x/0.80, W.D.0.30mm | YR0267B-op16 | – | – | |
| 100x/1.25(Oil), W.D.0.16mm | YR0267B-op17 | – | – | |
| 100x/1.10(Water), W.D.0.16mm | YR0267B-op18 | – | – | |
| NIS60 | 4x/0.10, W.D.30.0mm | YR0267B-op19 | ● | ● |
| Infinity Plan | 10x/0.25, W.D.10.2mm | YR0267B-op20 | ● | ● |
| Objective | 20x/0.40, W.D.4.8mm | YR0267B-op21 | ○ | ○ |
| 40x/0.65, W.D.1.5mm | YR0267B-op22 | ● | ● | |
| 60x/0.80, W.D.0.30mm | YR0267B-op23 | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.3mm | YR0267B-op24 | ● | ● | |
| 100x/1.10(Water), W.D.0.2mm | YR0267B-op25 | ○ | ○ | |
| NIS60 | 10x/0.25, W.D.10.2mm | YR0267B-op26 | ○ | ○ |
| Infinity Plan | 20x/0.40, W.D.12.0mm | YR0267B-op27 | ○ | ○ |
| Phase Contrast | 40x/0.65, W.D.0.7mm | YR0267B-op28 | ○ | ○ |
| Objective | 100x/1.25(Oil), W.D.0.2mm | YR0267B-op29 | ○ | ○ |
| Focusing | Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm | ● | ● | |
| Working Stage | Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm | – | – | |
| Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform | ● | ● | ||
| Condenser | Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide. | ● | ● | |
| Illumination | 1W S-LED Critical Illumination | – | – | |
| 3W S-LED Kohler Illumination | ● | ● | ||
| Green Filter | ● | ● | ||
| Dark Field | Dark Field Slide | YR0267B-op29 | ○ | ○ |
| Polarizing | Simple Polarizing Set | YR0267B-op30 | ○ | ○ |
| Phase Contrast | Phase Slider For 10x-40x | YR0267B-op31 | ○ | ○ |
| Phase Slider For 100x | YR0267B-op32 | ○ | ○ | |
| Epi-Fluorescence Attachment | 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, | YR0267B-op33 | ○ | ○ |
| B, G Filters | ||||
| Filter U | YR0267B-op34 | ○ | ○ | |
| Filter V | YR0267B-op35 | ○ | ○ | |
| Photo Adapter | 1.0x C-Mount | YR0267B-op36 | ○ | ○ |
| 0.5x C-Mount | YR0267B-op37 | ○ | ○ | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | |
| USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely | ● | ● | ||
| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. | ● | ● | |
| Dimensions | 220(W)x290(D)x472(H) mm | ● | ● | |
| Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable | ||||
