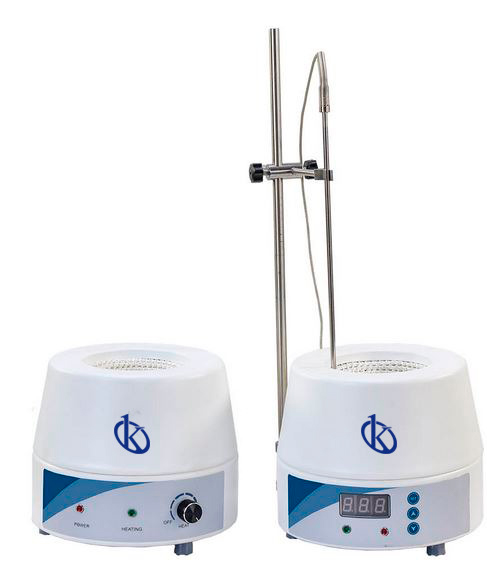

Heating Mantle YR05021 // YR05036
Heating Mantle YR05021 // YR05036 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Heating Mantle YR05021 // YR05036 stands as a pinnacle in laboratory equipment, offering precise temperature control and ease of use for a variety of scientific applications. Crafted with a cold-rolled steel sheet exterior and finished with surface spraying treatment, this heating mantle boasts durability and longevity. Its nichrome heating wire ensures rapid warming and prolonged service life, making it an indispensable tool in any laboratory setting. The device’s technology allows for precise PID temperature control, meeting high-accuracy experimental needs. The digital mantles incorporate sensors for precise measurements, supporting both single and multiple positions.
Market Price
The pricing of the Heating Mantle YR05021 // YR05036 generally varies depending on the model and specifications selected. On average, the cost ranges between $150 to $600, which is competitive considering its advanced features and durability. For the most accurate pricing, we recommend using the Kalstein Plus platform to request a quote or generate an automatic quotation.
Frequently Asked Questions
How quickly does the heating mantle reach its maximum temperature? The heating mantle is designed to reach its maximum temperature of 380°C rapidly due to its nichrome heating wire.
Is the heating mantle suitable for all laboratory environments? Yes, the Heating Mantle YR05021 // YR05036 is suitable for a variety of laboratory settings and applications due to its robust design and versatile operation.
Advantages and Disadvantages
Advantages: The Heating Mantle YR05021 // YR05036 offers precise temperature control, rapid heating, and durability. It has a wide application range and is easy to operate.
Disadvantages: Although highly effective, the device’s initial cost may be a consideration for smaller laboratories with limited budgets.
Product Use in the Field
The Heating Mantle YR05021 // YR05036 is extensively used in laboratories for heating liquids in round-bottom flasks. Its precise temperature control makes it ideal for reactions that require specific thermal conditions, ensuring consistent results in chemical processes and experimental applications.
Recommendations
To maximize the lifespan and efficiency of your Heating Mantle YR05021 // YR05036, ensure regular maintenance by keeping the exterior clean and storing it in a dry, dust-free environment. Always follow the manufacturer’s usage guidelines and avoid overloading the device to prevent any potential damage.
Features
- Durable cold-rolled steel sheet construction
- Nichrome heating wire for rapid warming
- Precise PID temperature control
- Digital models with internal and optional external sensors
- Supports a broad range of capacity options from 100ml to 5000ml
Technical Specifications
| Type | Analog | ||||||
| Model | YR05021 | YR05022 | YR05023 | YR05024 | YR05025 | YR05026 | YR05027 |
| Capacity (ml) | 100 | 250 | 500 | 1 000 | 2 000 | 3 000 | 5 000 |
| Voltage (V) | 200 – 240V / 50 – 60Hz or 100 – 120V / 50 – 60Hz | ||||||
| Max Use Temperature (°C) | 380 | ||||||
| Power (W) | 100 | 150 | 250 | 350 | 450 | 600 | 800 |
| Working Size | Continuous | ||||||
| Exterior Size (mm) | Ø200x160 | Ø260x200 | Ø300x230 | Ø340x245 | Ø350x250 | ||
| Packing Size (mm) | 230 x 230 x 170 | 290x290x220 | 330x330x250 | 365x365x295 | 390x390x310 | ||
| Net Weight (Kg) | 2.5 | 4 | 5 | 7.5 | 8.5 | ||
| Gross Weight (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | ||
| Type | Digital | ||||||
| Model | YR05030 | YR05031 | YR05032 | YR05033 | YR05034 | YR05035 | YR05036 |
| Capacity (ml) | 100 | 250 | 500 | 1 000 | 2 000 | 3 000 | 5 000 |
| Voltage (V) | 200 – 240V / 50 – 60Hz or 100 _ 120V / 50 – 60 Hz | ||||||
| Max Use Temperature (°C) | 380 | ||||||
| Power (W) | 100 | 150 | 250 | 350 | 450 | 600 | 800 |
| Working Size | Continuous | ||||||
| Exterior Size (mm) | Ø200 x 160 | Ø260x200 | Ø300x230 | Ø340x245 | Ø350x250 | ||
| Packing Size (mm) | 230 x 230 x 170 | 290x290x220 | 330x330x250 | 365x365x295 | 390x390x310 | ||
| Net Weight (Kg) | 2.5 | 4 | 5 | 7.5 | 8.5 | ||
| Gross Weight (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | ||
Technical specifications
| Manufacturer | Kalstein |
|---|
Available models
- Heating Mantle YR05021 // YR05036 - YR05021 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05022 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05023 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05024 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05025 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05026 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05027 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05030 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05031 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05032 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05033 (SKU: YR05021)
- Heating Mantle YR05021 // YR05036 - YR05034 (SKU: YR05021)
Frequently asked questions
How to know the prices of Heating Mantle YR05021 // YR05036?
To know the price of Heating Mantle YR05021 // YR05036, please send us an email with your request through the contact form AQUI.
What are the delivery times for Heating Mantle YR05021 // YR05036?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Heating Mantle YR05021 // YR05036?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Heating Mantle YR05021 // YR05036?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Heating Mantle YR05021 // YR05036?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
