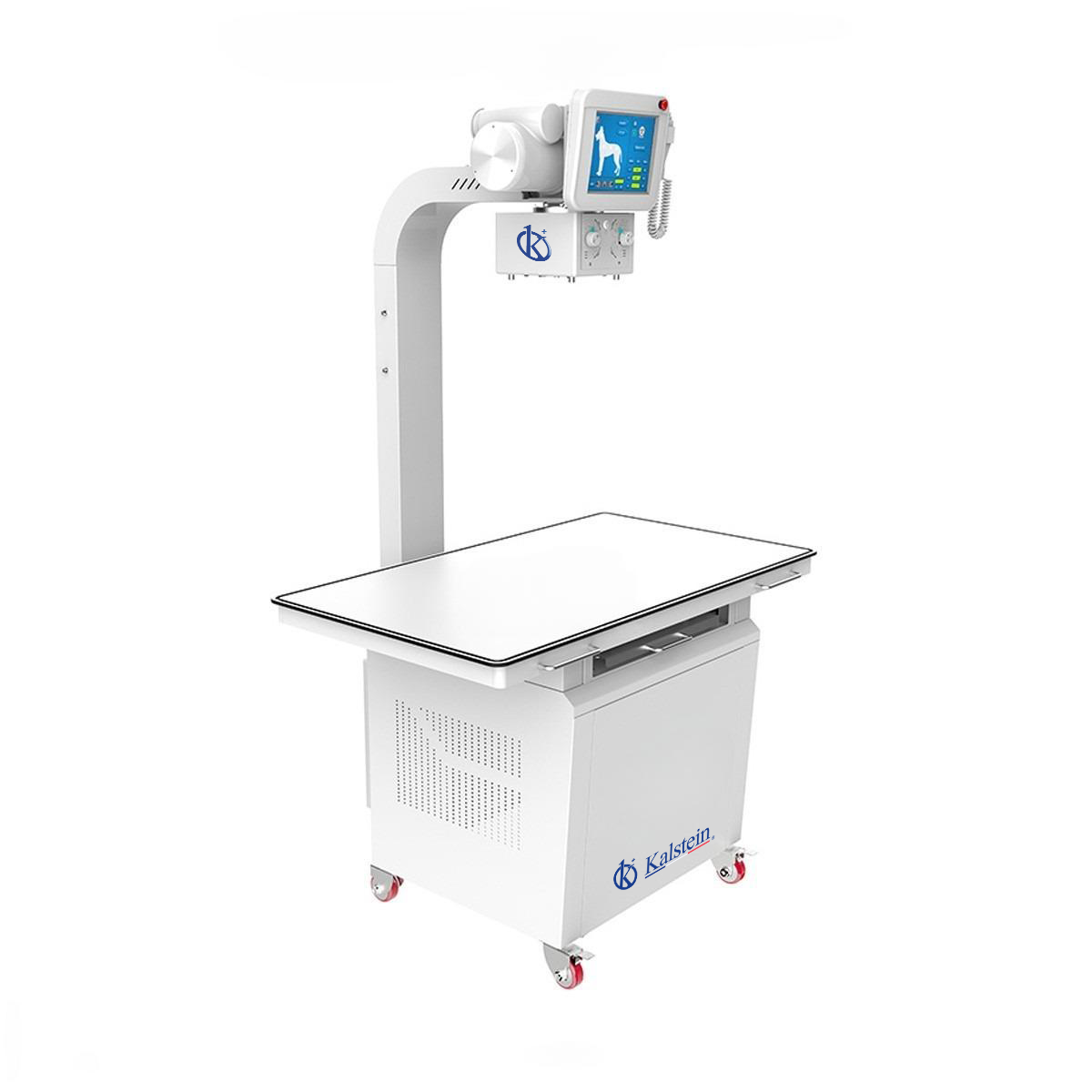

Veterinary Digital X-Ray (DR) YR06162
Veterinary Digital X-Ray (DR) YR06162 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Veterinary Digital X-Ray (DR) YR06162 is an advanced imaging solution designed for veterinary clinics seeking precise and efficient diagnostic capabilities. This comprehensive system includes a 200mA HF generator and console, a Toshiba 7239 X-ray tube, a dependable JPI grid, and a high-resolution flat panel detector. Its robust design ensures durability, while the state-of-the-art technology embedded within allows for quick and accurate imaging results. The inclusion of essential components such as a pet table and communication interfaces like RS-232 makes it user-friendly and highly functional for busy veterinary settings.
Market Price
The Veterinary Digital X-Ray (DR) YR06162 is competitively priced in the market, offering excellent value for its advanced features. Generally, digital X-ray systems tailored for veterinary use fall within a range of $32,000 to $33,500. This pricing reflects the technology, precision, and comprehensive solutions provided, positioning the YR06162 as a reliable investment in veterinary imaging technology. Request a personalized quotation via Kalstein Plus to explore competitive pricing options tailored to your practice.
Frequently Asked Questions
What animals can be diagnosed with this X-ray system?
The system is suitable for a wide range of animals, including dogs, cats, and other small mammals commonly handled in veterinary clinics.
Is the system easy to install?
Yes, the Veterinary Digital X-Ray (DR) YR06162 is designed for straightforward installation with clear guidelines provided.
Advantages and Disadvantages
Advantages: High imaging quality, ease of operation, quick diagnosis turnaround, and robust construction for long-term use.
Disadvantages: Due to its comprehensive features, it requires initial training for optimal use, and its advanced technology necessitates proper maintenance to ensure longevity.
Use of Product in the Field
In practice, the Veterinary Digital X-Ray (DR) YR06162 is used to accurately diagnose a range of conditions in animals, from bone fractures to internal anomalies. Its high-frequency generator and superior imaging capabilities enhance the effectiveness of routine examinations and emergency diagnostics, helping veterinarians deliver timely and accurate care.
Recommendations
To maximize the lifespan and performance of the Veterinary Digital X-Ray (DR) YR06162, regular maintenance checks are advised. Veterinary professionals should also attend training sessions to familiarize themselves with the system's full range of functionalities for optimal diagnostic outcomes. For more information or support, contact our team or generate an automatic quote through Kalstein Plus.
Features
- 200mA HF generator and console
- High-performance Toshiba 7239 X-ray tube
- Reliable JPI grid
- Advanced flat panel detector
- Intuitive operation with LCD and computer interface
- Pet table for convenient animal positioning
- Robust communication via RS-232 interface
Technical Specifications
| Model | YR06162 |
| Maximum output power | 16kW |
| Input voltage range | AC 220V±22V |
| Applicable support | Radiography |
| Inverter frequency | ≥30kHz |
| Tube voltage range of radiography | 40kv~125kv |
| Range of tube current | 16~200mA |
| Range of exposure time | 0.0025s~6.4s |
| mAs range | 0.5mAs~320mAs |
| Communication interface | RS-232 |
| Other | Capacity lock automatically, fault diagnosis automatically, self-protection |
| Max. Tube voltage | 125kV |
| Focus | Small focus:1.0mm Large focus:2.0mm |
| Anode input power | Small focus:20KW Large focus:40KW |
| Anode speed | 2800 R/M |
| Target angle | 17.5° |
| Anode heat content | 100kJ(140kHU) |
Technical specifications
| Dimensions | L 55 × W 48 × H 80 cm |
|---|---|
| Weight | 105 kg |
| Manufacturer | Kalstein |
