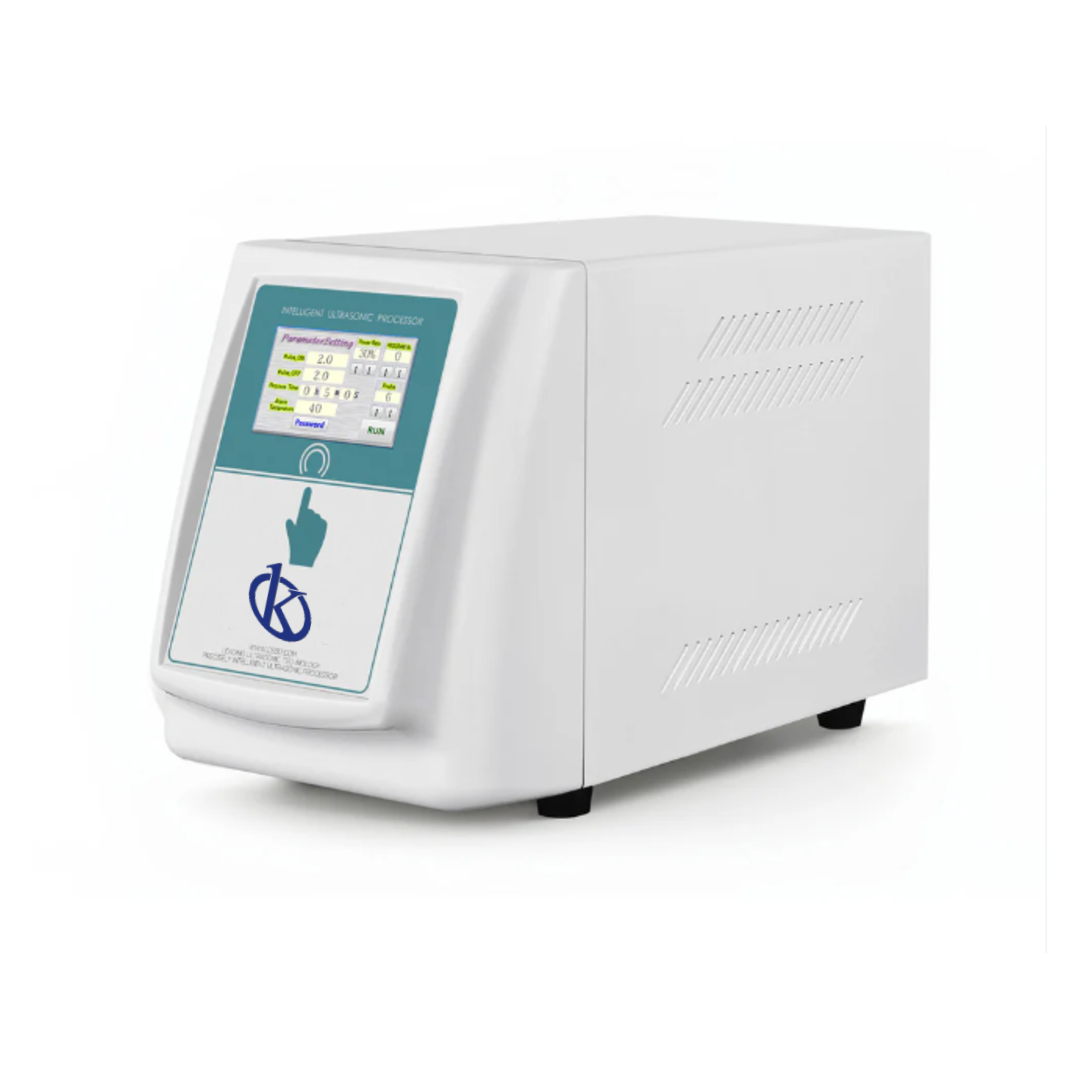

Continuous Flow Ultrasonic Homogenizer YR06670

Design and Technology (or Functionality)

• Full Amplitude Control: Amplitude (intensity) is adjustable from 1-100%, providing a high degree of resolution to identify the exact intensity needed for different sample types.
• Automatic Tuning: The Sonicator digitally tracks frequency changes in the converter/tip assembly caused by load and temperature variations, maintaining electrical efficiency at all times without manual adjustment.
• Pulse Mode: Adjustable pulse on and off times help reduce heat buildup in temperature-sensitive samples.
• Integrated Programmability: Parameters including processing times, pulse cycles, and power output can be saved in memory. The system can store and restore more than 20 custom programs with a single touch.

Frequently Asked Questions (FAQ)

Advantages and Disadvantages (Pros and Cons)

• User-Friendly Interface: Large LCD screen clearly displays all operating parameters: temperature, time, and power output.
• Safety Features: Automatic fault alarms and over-temperature protection ensure equipment longevity and sample safety.
• Efficiency: Real-time frequency tracking ensures the highest efficiency regardless of sample viscosity or temperature changes.

• External Cooling: While it features a double-cup design for cooling, an external constant temperature bath is required for active, high-precision cooling.
• Power Requirement: High power output (1200W) requires stable electrical supply to maintain consistent performance.

Field Use and Recommendations

• Operational Tip: Use the "LiveAccess" feature for quick loading and unloading to minimize downtime between different sample batches.
• Recommendation: When processing nanomaterials like selenium or carbon nanotubes, start at a lower amplitude and increase gradually to find the optimal dispersion point without damaging the probe.

Technical Specifications
