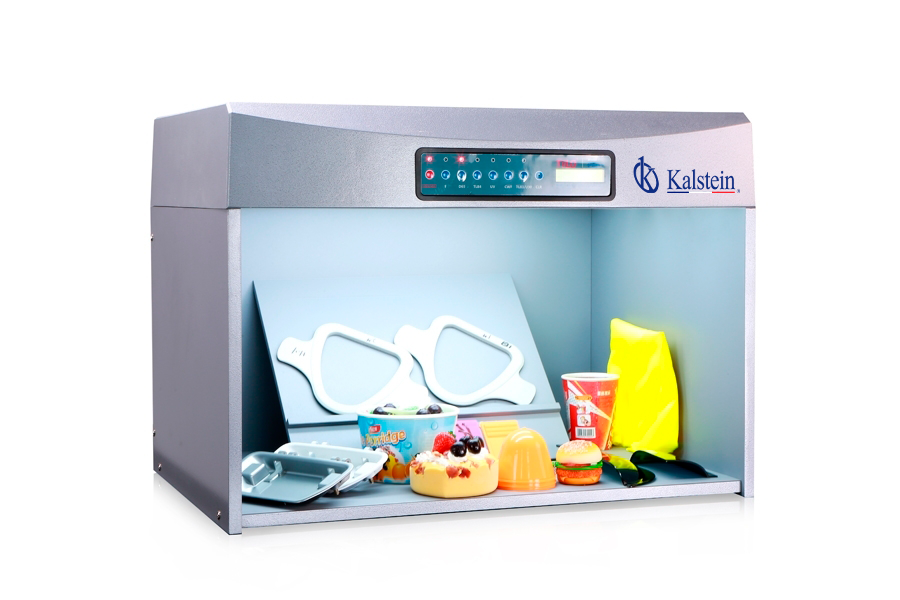

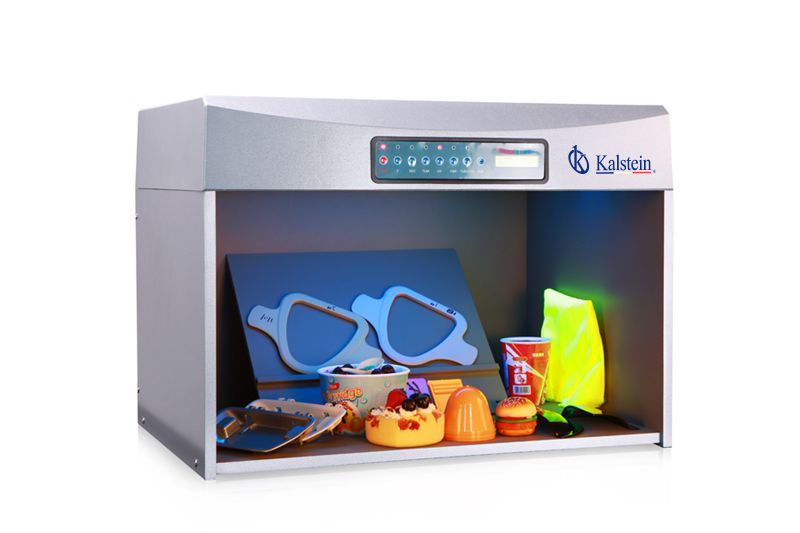

Color Light Box YR05520 // YR05523
Color Light Box YR05520 // YR05523 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Color Light Box YR05520 // YR05523 stands out as a premier solution for industries requiring precise color evaluation. Equipped with up to six adaptable light sources—D65, TL84, CWF, TL83/U30, F, and UV—this advanced model ensures consistent color accuracy across varied lighting conditions, essential for sectors such as graphic arts, textiles, packaging, automotive, and ceramics. Utilizing cutting-edge microcomputer technology, it allows for automatic switching between light sources with individual control switches, ensuring user-friendly operation. Its integrated elapsed time meter further enhances usability by facilitating timely lamp replacement, guaranteeing ongoing reliability and efficiency in color assessments.
Market Price
The Color Light Box YR05520 // YR05523 generally ranges from $500 to $800 USD on the market. This price reflects the value for industries aiming to maintain high standards in quality control, adhering to international benchmarks such as ASTM D1729 and ISO 3664. We invite you to leverage the Kalstein Plus platform to request a personalized quote and take advantage of current offers tailored to your needs.
Frequently Asked Questions
- What light sources are included in this model?
The model comprises D65, TL84, F, UV, CWF, and TL83 light sources, catering to diverse color evaluation requirements across various environments. - Is preheating necessary?
No, the light box operates without preheating and boasts a flicker-free performance for immediate and reliable color assessments. - Can the dimensions be tailored to specific needs?
Absolutely, the box’s dimensions can be customized to seamlessly integrate into any workspace, optimizing functionality.
Advantages and Disadvantages
The Color Light Box YR05520 // YR05523 is prized for its diverse light source options, low power consumption, and swift light switching capabilities, all of which facilitate rapid and precise evaluations. However, its weight, reaching up to 28.9 kg, may necessitate special support for installation.
Field Use
This light box is indispensable in fields where color fidelity is crucial. For industries like printing and textiles, it ensures uniform color quality, meeting exacting product standards. By enabling assessment of color under various lighting conditions, it minimizes production discrepancies, enhancing client satisfaction.
Recommendations
To ensure optimal performance of the Color Light Box YR05520 // YR05523, regular maintenance is advised, including lamp cleaning and monitoring of usage counters to maintain stable light intensity. Having spare lamps on hand is recommended to prevent operational delays. If precise and reliable color management is critical to your operations, consider requesting a quote for this exemplary model via Kalstein Plus.
Features
- Six interchangeable light sources for varied assessments
- Microcomputer-controlled automatic light-switching
- User-friendly operations with individual light control switches
- Elapsed time meter for optimal lamp management
- Customizable dimensions to fit specific workspace requirements
Technical Specifications
| Model | YR05520 | YR05521 | |
| Light source | D65, TL84, UV, F, CWF, TL83 | D65, TL84, UV, F, CWF | |
| Dimensions(W*D*H) | 695x552x502 mm | 695x552x502 mm | |
| Inner Size(W*D*H) | 665x490x360 mm | ||
| Voltage | 220V/50Hz – 110V/60Hz | ||
| Light sources Configuration | D65 | 2 PCS | 2 PCS |
| TL84 | 2 PCS | 2 PCS | |
| F | 4 PCS | 4 PCS | |
| UV | 1 PCS | 1 PCS | |
| CWF | 2 PCS | 2 PCS | |
| TL83 | 2 PCS | / | |
| Weight | 19.5 kg | 19.5 kg | |
| Light Source Specifications | |||
| Light Source | Color Light Box Application | Color temperature(k) | |
| D65 | International standard Artificial Daylight | 6500 | |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | |
| CWF | (Cool White Fluorescent) American Standard | 4150 | |
| F | “Sun-setting Light Yellow” incandescent light source (imitation of sunset) | 2700 | |
| UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wavelength:365nm | |
| TL83 | Applied to stores in Europe | 3000 | |
| Remarks: Optional tubes D50, D75, U30, U35, A | |||
Technical specifications
| Dimensions | L 69 × W 83 × H 32 cm |
|---|---|
| Manufacturer | Kalstein |
