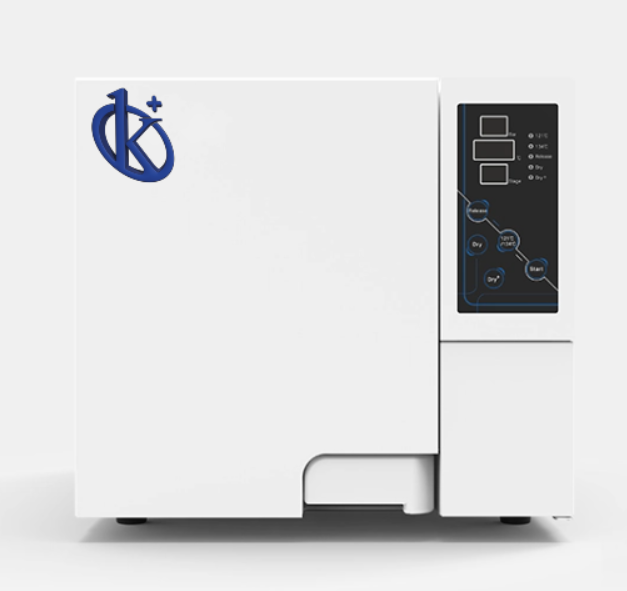

Class N Benchtop Autoclave YR03395 // YR03400

The benchtop Class N autoclave YR03395 / YR03400 represents an efficient and compact solution for sterilization in medical, dental, and laboratory settings where reliability and ease of use are essential. This model operates with standard preprogrammed cycles at 134 °C and 121 °C, allowing effective disinfection of solid instruments without cavities or wrappings. Unlike more complex models, it does not include a built-in steam generator or water tank: the user must manually fill the chamber before each cycle. This feature makes it ideal for users seeking full control over each stage of the process. The LED screen provides clear real-time information on temperature, pressure, cycle duration, and safety alerts.

Advantages

Its compact size, intuitive interface, and low maintenance cost stand out. It also features a safety system with an automatic lock if the chamber is pressurized, reducing risks during operation. A potential drawback is its reliance on manual filling, which requires constant attention from the operator and limits intensive, unsupervised use.

This model is widely used in dental offices, veterinary clinics, and small laboratories, where fast and effective sterilization is needed without requiring large volumes. It is ideal for frequent cycles with simple instruments, allowing high biosecurity standards to be maintained without compromising space or budget.

To extend the autoclave's lifespan, it is recommended to use only distilled water, perform regular internal cleaning, and avoid overloading the chamber. It is also crucial to verify the parameters before each cycle to ensure proper sterilization.

If you are looking for a reliable, compact autoclave with excellent value for money, this model is an ideal choice. You can request a personalized quote or generate an instant estimate through the Kalstein Plus platform and discover all the benefits Kalstein has to offer for your medical center or laboratory.

Technical Specifications

Model	YR03395/YR03396	YR03397 /YR03398	YR03399 /YR03400
Voltage. Frequency	220/110V, 50/60z
Power	1500W
Chamber Volume	appr. 18L (E318/E418/E518), appr. 23L (E323/E423/E523)
Chamber Dimensions	Ø247x350mm (18L), Ø247x450mm (23L)
Tray Size (W x H)	192x285mm (18L) ,192x380mm (23L)
Tray Material	Aluminum
Number of Trays	2/ Max. 4
Weight	32kg/36kg	33kg/37kg	33.5kg/37.5kg
Overall Dimensions (W x H x D)	483x450x515 mm (E318/E418/E518) 483x450x615 mm (E323/E423/E523)
Sterilization Program	134℃/210Kpa, 121℃/110Kpa
Sterilization Time	134℃, Default 30min (30~60min adjustable) 121℃, Default 10min (10~20min adjustable)
Dry	No	Default 60min (1~60min adjustable)	Default 60min (1~60min adjustable)
Dry +	No	No	Default 60min (1~60min adjustable)
