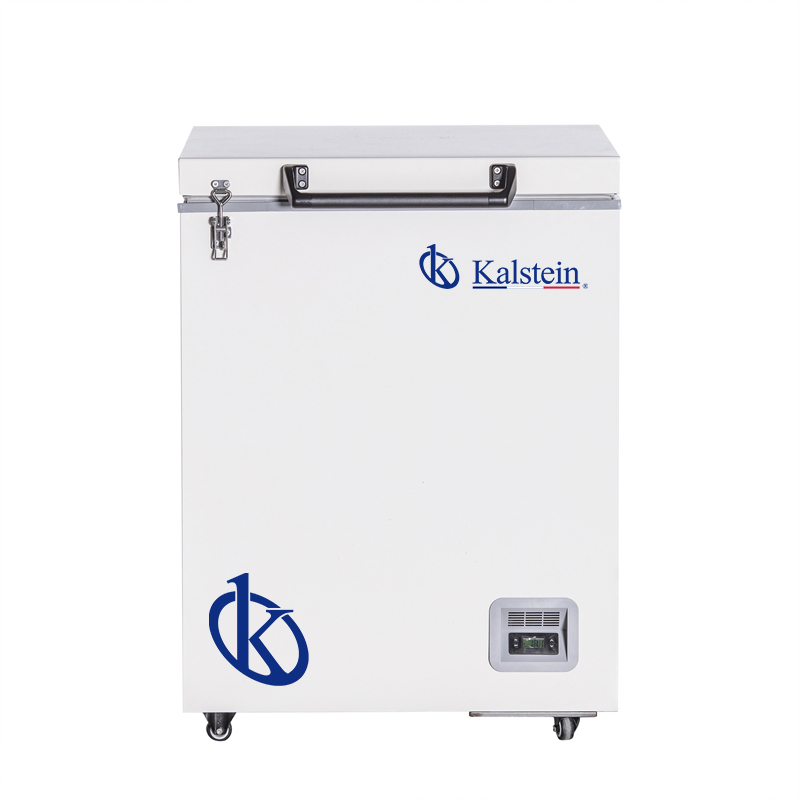

Chest Freezer YR05102

Manufacturer: Kalstein

Description

The Medical Chest Freezer YR05102 offers a reliable and robust solution for storing medications, vaccines, and blood plasma at ultra-low temperatures as low as -40ºC. Ideal for medical and laboratory settings, this chest freezer boasts advanced microprocessor control and an LED digital display for precise temperature adjustments and monitoring. Its high-density CFC-free urethane foam insulation ensures temperature stability and energy efficiency, making it an environmentally friendly choice for your storage needs.

Price in the Market

The Chest Freezer YR05102 falls within a competitive price range for units of its caliber. Prices typically range from $1200 to $2000, depending on the retailer and specific features included. For the most accurate pricing and to explore purchasing options, consider visiting Kalstein Plus for a customized quote.

Frequently Asked Questions

  • What type of refrigerant is used in the YR05102? The YR05102 uses the R290 refrigerant, which is environmentally safe and energy-efficient.
  • Can the temperature settings be adjusted easily? Yes, the microprocessor control allows for an adjustable temperature range from -10ºC to -40ºC with accuracy to 0.1ºC.
  • Does the freezer come with a data logging option? Yes, USB data logging and temperature recording features are available as optional add-ons.

Advantages and Disadvantages

Among its advantages, the YR05102 offers precise temperature control, environmentally friendly design, and robust insulation. However, it may require manual defrosting, which could be seen as a disadvantage for some users looking for more convenience.

Product Usage in the Field

The YR05102 is extensively used in healthcare facilities, research laboratories, and pharmaceutical settings. It securely stores sensitive biological samples, medications, and vaccines, ensuring they remain at optimal temperatures to maintain their efficacy.

Recommendations

For optimal performance, place the freezer in a well-ventilated area and regularly check and maintain its power source and temperature settings. Using the lockable caster design can help you reposition the unit with ease when necessary.

Features

  • Microprocessor control with a temperature range of -10ºC to -40ºC
  • LED digital display with 0.1ºC precision
  • Environmentally safe R290 refrigerant
  • High-density CFC-free insulation
  • USB data logging option
  • Lockable caster design for mobility
  • Multiple malfunction alarms
  • Corrosion-proof interior

Technical Specifications

Parameter Model YR05102
Cooling method Direct cooling
Defrost Manual
Refrigerant R290
Power consumption(kWh/24h) 1.65
Noise(db) 50
Ambient temperature(℃) 10~32℃
Temperature range(℃) -10~40℃
Cooling system Compressor brand/QTY CUBIGEL/1
Condenser Wire tube
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 160W
Current(A) 1.15A
Material Inside material Stainless steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 105/3.70
NT./GT.(kg) 52/64.5
Exterior size(W*D*H)(mm) 685*645*930
Interior size(W*D*H)(mm) 480*380*665
Package size(W*D*H)(mm) 750*700*1040
CBM 0.55
20GP/40GP/40HQ 24/51/51
Alarm High/low temperature Y
Power failure Y
Sensor error Y
Filter check /
Temperature controller failure Y
Power failure backup system(alarm) 12h
Accessories Foot /
Castor Y
Test hole QTY/diameter 1/25MM

Additional information

Weight 86 kg
Dimensions 75 × 71 × 110 cm
