The

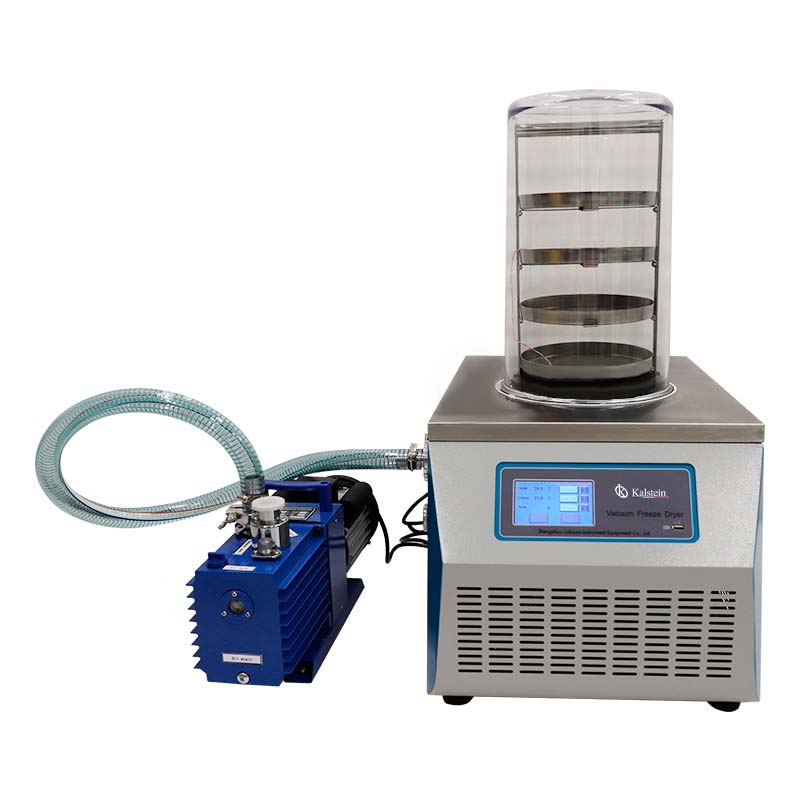

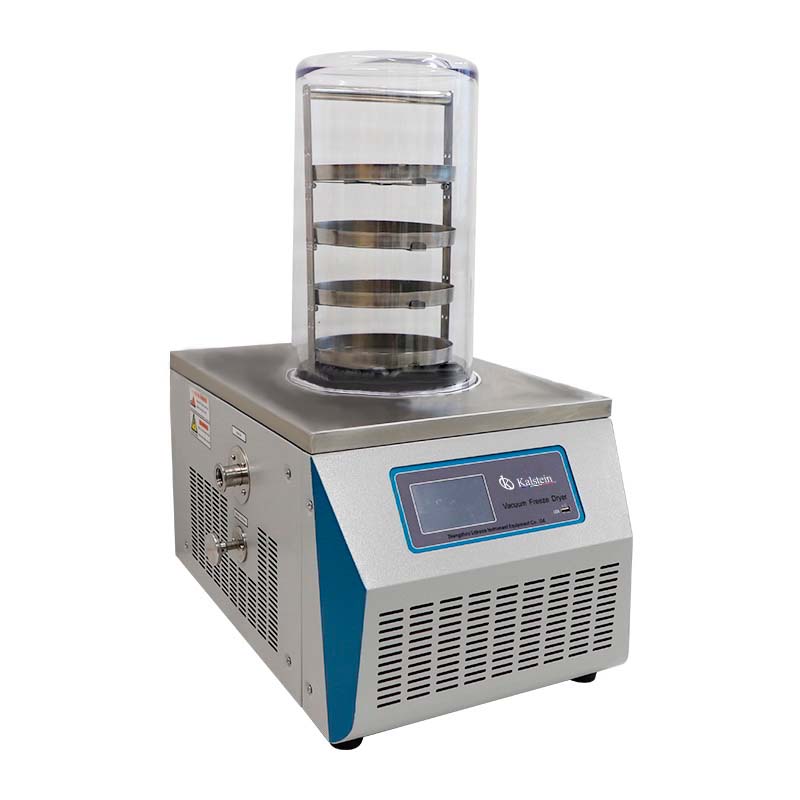

Benchtop Normal Lab Freeze Dryer YR05186 is an indispensable tool in various sectors including medicine, pharmaceuticals, biology research, chemical industries, and food production. It facilitates long-term preservation of materials by allowing them to return to their original state while maintaining their chemical and biological characteristics after rehydration. The YR05186 model stands out with its user-friendly features such as a clear plexiglass bell jar for easy observation, a high-performance vacuum pump, and an interactive LCD touch screen that displays real-time temperature and vacuum degrees along with a drying curve.
Market Price
The average market price for benchtop lab freeze dryers like the YR05186 typically ranges from $3,500 to $4,800. This ensures affordability for laboratories aiming for high-quality freeze-drying processes without compromising on equipment reliability.
Frequently Asked Questions
What is the capacity of the freeze dryer?
The YR05186 can handle a freeze-drying area of 0.12㎡ with a condenser capacity of 3-4L per 24 hours.
Does it require a separate freezer?
No, the unit features a cold trap with prefreezing frames, eliminating the need for an additional freezer.
Advantages and Disadvantages
This model comes with numerous advantages including a durable stainless steel design, efficient CFC-free refrigeration, and an optional nitrogen valve for enhanced operations. However, like any sophisticated equipment, it requires a stable ambient temperature (≤25℃) for optimal performance and may be a significant initial investment for smaller institutions.
Product Use in the Field
In practical scenarios, the YR05186 freeze dryer is utilized to preserve biological samples, pharmaceuticals, and food items. It plays a critical role in maintaining sample integrity for research and industrial applications.
Recommendations
For best results, it is recommended to regularly maintain the vacuum pump and keep the condensation chamber clean. Utilize the USB interface to download history data for monitoring and optimizing usage.
Features
- Plexiglass material bell jar, clear to observe drying effect, with 4 stainless steel trays.
- LCD touch screen that displays temperature and vacuum degree, with drying curve.
- Cold trap for prefreezing with frames; no need for an additional freezer.
- Vacuum pump included with high pumping speed.
- CFC-free refrigeration and low noise compressor.

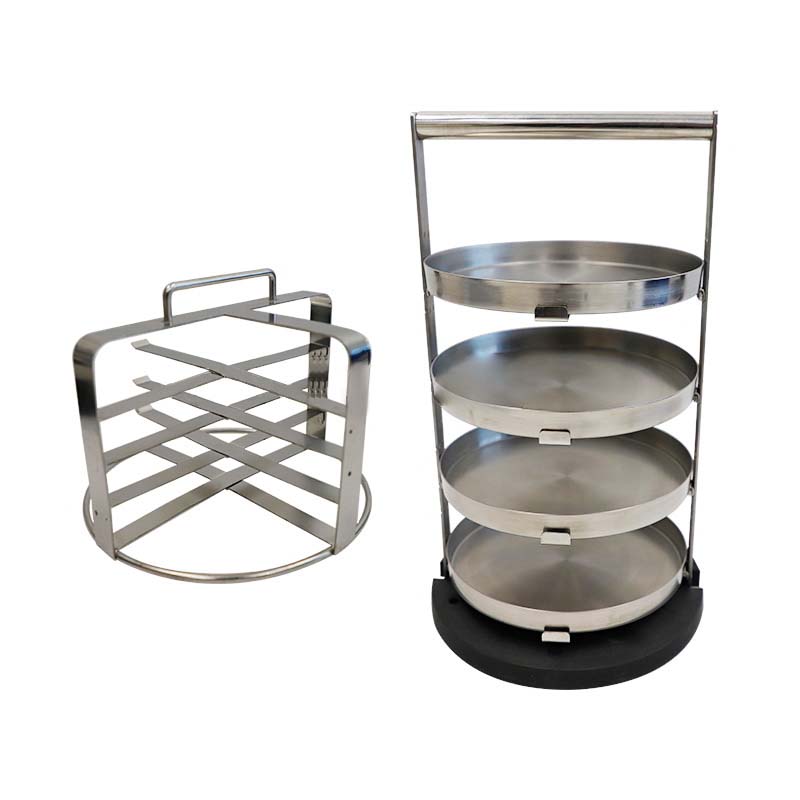

- Customizable tray spacing with stainless steel shelves and trays.
- Optional nitrogen valve, eutectic point test device, and communication interface.
- Cascade refrigeration option for -80℃ devices.
Technical Specifications
| Model |
YR05186 |
| Freeze drying area |
0.12㎡ |
| Condenser capacity |
3-4 L /24h |
| Condenser temperature |
-55℃ (-80 ℃ optional) |
| Vacuum degree |
< 10 Pa |
| Material tray |
Ф200mm , 4 layers |
| Bulk capacity |
1.2L, 10mm thickness |
| Vial capacity Φ12mm |
920 pcs |
| Vial capacity Φ16mm |
480 pcs |
| Vial capacity Φ22mm |
260 pcs |
| Manifold |
with 8 ports |
| Flask |
1000ml,500ml ,250ml ,100ml |
| Cooling |
Air，draughty , ambient temperature≤25℃ |
| Voltage |
220V ,50 Hz; 110V, 50Hz; 110V, 60Hz |
| Power |
700W |
| Dimension |
460×625×(370+465) mm |
| Host weight |
41 kg |
