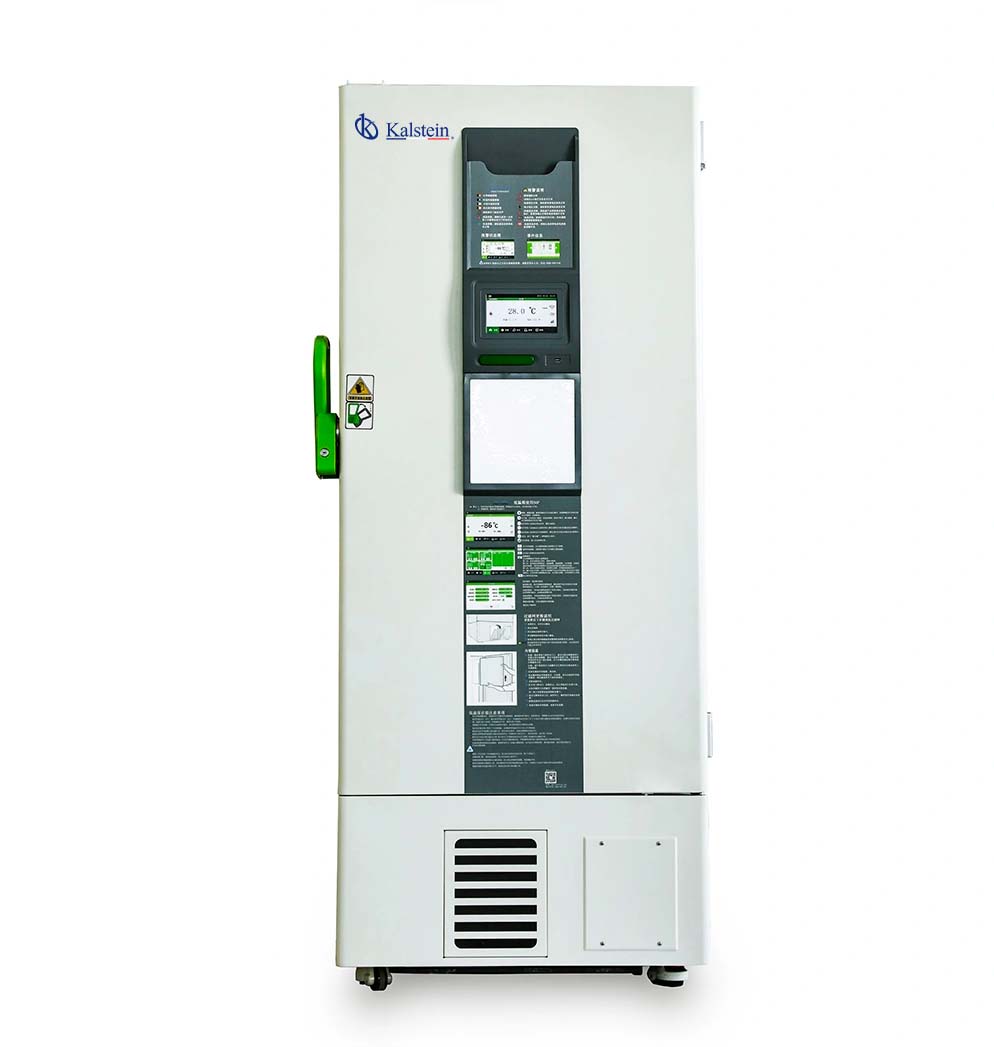

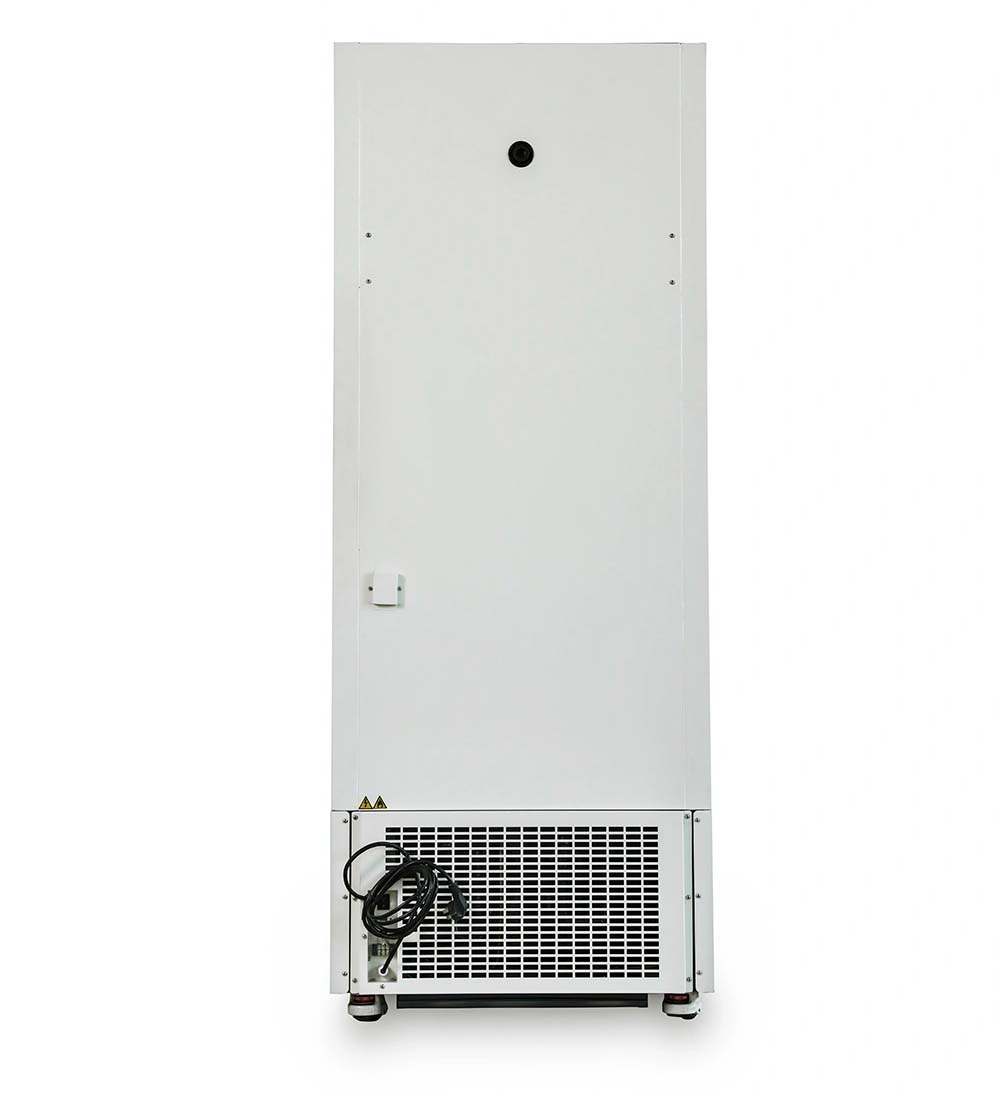

588 Liters Laboratory Upright Freezer Color Sprayed Steel YR05303

The 588 Liters Laboratory Upright Freezer Color Sprayed Steel YR05303 is a state-of-the-art -86ºC ULT freezer designed for the long-term storage of various biological products, such as viruses, germs, erythrocytes, leucocytes, and skin samples. This ultra-low temperature freezer finds applications across diverse fields, including blood banks, hospitals, epidemic prevention services, research institutes, and marine fisheries. Engineered for reliability and efficiency, it features a dual refrigeration system which ensures optimal temperature maintenance even under adverse conditions.

Market Price

The YR05303 upright freezer is competitively priced, with similar models ranging from approximately $10,500 to $11,400 USD in the market. This price reflects its cutting-edge technology and high reliability, providing exceptional value for laboratories that require stringent temperature control for their samples.

Frequently Asked Questions

• What kind of security features does the freezer offer? The freezer includes malfunction alarms for high/low temperature, power failure, and more, ensuring your samples are constantly monitored.
• Can this freezer operate under varying environmental conditions? Yes, it operates efficiently in ambient temperatures ranging from 10°C to 32°C.
• Does it have remote monitoring capabilities? Yes, it includes remote alarm contacts for added convenience and security.

Advantages and Disadvantages

• Advantages: The dual refrigeration system provides unmatched temperature reliability. The freezer's inner door design minimizes frost build-up, optimizing storage conditions.
• Disadvantages: Manual defrosting and a power consumption rate of 16.5 kWh/24h may increase maintenance needs and energy costs.

Field Use

This freezer is instrumental in research and medical facilities where preserving biological materials at ultra-low temperatures is crucial. Its dual refrigeration system offers peace of mind, knowing that it can maintain optimal conditions even in the event of a single compressor failure.

Recommendations

To optimize the lifespan and efficiency of the YR05303, perform regular maintenance checks and ensure that the condenser and filters are clean. For additional backup, consider integrating the optional CO2 or LN2 backup systems.

Features

• Capacity of 588 liters to accommodate a large number of samples.
• Stainless steel shelves for durability and easy cleaning.
• Intuitive microprocessor temperature controller with LCD display.
• Remote alarm capability and USB port for data downloading, enhancing user convenience.

Technical Specifications

Model		YR05303
Specifications	Shelf/drawer QTY	Stainless steel shelf/3
	Cooling	Direct cooling
	Defrost	Manual
	Refrigerant	Mixed-gas
	Power Consumption (kWh/24h)	16.5
	Noise (db)	53
	Ambient temperature (ºC)	10~32ºC
	Temperature range (ºC)	-40~-86ºC
Cooling system	Compressor brand/QTY	SECOP/2
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	LCD display
Power	Voltage/frequency (V/Hz)	220/50Hz
	Power (W)	1500W
	Current (A)	9.1A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	588
	NT./GT.(kg)	297.5/358.5
	Exterior size (W*D*H) (mm)	885*1100*1995
	Interior size (W*D*H) (mm)	606*738*1310
	Package size (W*D*H) (mm)	970*1140*2190
	CBM	2.42
	20GP/40GP/40HQ	12/24/24
Frozen Racks	Racks	16(5X5)
	Boxes (2 Inches)	400
	Samples(2ml)	40000
Alarm	High/low temperature	Y
	Power failure	Y
	Abnormal voltage	Y
	Sensor error	Y
	Filter screen check	Y
	Thermostat failure	Y
	Low battery	Y
	Condenser clean	Y
	High ambient temperature	Y
	Door ajar	Y
	Power failure backup system(alarm)	72h
Accessories	Castor	Y
	Inside door	2
	Test hole QTY/diameter	1/25MM
	USB port	Y
	Chart recorder	/
	Data logger	Optional
	Remote alarm port	Y
Optional	CO2 back up system	Optional
	LN2 back up system	Optional
Other	Certification	ISO.CE
