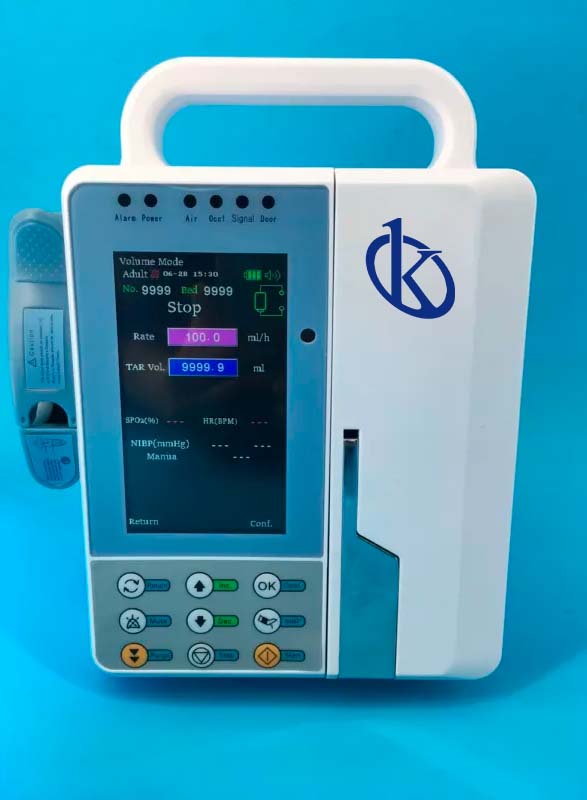

4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YR05164

Description

The 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YR05164 is an advanced medical device designed to enhance patient care through precision and usability. Featuring a vibrant 4.3-inch color LCD screen with a backlight, it adapts to various ambient light conditions, providing clear visibility at all times. This infusion pump offers three flexible working modes: rate, volume, and time mode, making it versatile for diverse medical needs. With an optional central monitoring system, the infusion status of each pump can be observed in real-time, enhancing patient safety through wireless transmission. Furthermore, the pump’s intuitive interface simplifies operations, while its audible and visible alarms ensure immediate attention to any issues.

Market Price

The pricing for the 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YR05164 can vary based on suppliers and additional features like the optional heating function. Typically, prices for this type of high-quality infusion pump range from $500 to $1,200. To get the best availability and pricing options, we recommend contacting us for a custom quote, or check out Kalstein Plus for an automatic quotation.

Frequently Asked Questions

Can I use any IV set with this pump? Yes, the pump is compatible with disposable IV sets from any brand.

What happens if there is an occlusion or air bubble? The pump is equipped with ultrasonic wave detection to identify and alert for air bubbles, and it also has an occlusion alarm system to notify the user of any blockages.

Advantages and Disadvantages

Advantages:

  • Large, easy-to-read LCD screen that enhances visibility under any lighting conditions.
  • Flexible operation modes tailored for different medical needs.
  • Optional heating function for temperature-controlled infusions.
  • Real-time wireless monitoring capability for improved patient safety.

Disadvantages:

  • Initial setup may require training for optimal use.
  • Higher price range compared to basic infusion pumps.

Product Usage in the Field

This infusion pump is ideal for hospitals and clinics that demand high precision in medication delivery. Its portability makes it suitable for various medical settings, including emergency care and outpatient services. With features like the KVO (Keep Vein Open) function, this pump ensures continuous infusion even at low rates, which is critical in maintaining patient therapy without interruption.

Recommendations

For maximum efficiency and longevity, it is recommended to regularly calibrate and maintain the pump using the manufacturer’s designated IV kits or high-quality calibrated IV kits. Regular battery checks and timely charging will also ensure the pump is ready for use when needed.

Features

  • Backlit 4.3-inch LCD screen for clear reading in any light condition
  • Compatible with disposable IV sets from any brand
  • Optional heating function for temperature-controlled infusions
  • Real-time wireless monitoring for enhanced safety
  • Three operational modes: rate, volume, time
  • Multiple alarms for various operational errors and warnings

Technical Specifications

Pump type Drip Type Infusion Pump
Pumping Form Peristaltic fingers
Adjustable Fall Rate Range 1 ~ 400 drops/min (step: 1 drop/min)
Adjustable Volume Rate Range 1 ~ 1200 ml/h (when 1 ~ 99.9 ml/h, step: 0.1 ml/h; greater than 99.9 ml/h, step: 1 ml/h)
Flow Accuracy Within 3% or so (using manufacturer’s designated IV kit or high-quality calibrated IV kit)
Mechanical precision Within 2% or so
Purge Rate 800 ml/h
KVO Rate 1 ml/hour (1 ~ 300 ml/hour)
3 ml/h (more than 300 ml/h)
Infusion Volume Range 1 ml ~ 9999.9 ml (step: 0.1 ml)
Maximum Accumulated Volume 9999.9 ml (step: 0.1 ml)
Time Interval 1 min ~ 9999 min (step: 1 min)
Occlusion Alarm Threshold High: 800 mmHg ± 200 mmHg (106.7 kPa ± 26.7 kPa)
Medium: 500 mmHg ± 100 mmHg (66.7 kPa ± 13.3 kPa)
Low: 300 mmHg ± 100 mmHg (40.7 kPa ± 13.3 kPa)
Alarm Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle.
Air Bubble Detector Method Ultrasonic wave, sensitivity: greater than or equal to
25 μl
Fuse F1AL / 250V (“F” indicates fast, “L” indicates low breaking power), 2 pieces (installed inside the pump).
Power Supply AC 85 ~ 265V, 50 / 60Hz;
Internal Battery 11.1V rechargeable lithium-ion battery. Capacity: greater than or equal to 2000 mAh;
The pump can run more than 4 hours at a flow rate of 25 ml/h after charging for 8 hours (average flow rate specified by GB 9706.27-2005).
Energy Less than or equal to 40VA
Size 188 mm (length) x 198 mm (width) x 228 mm (height)
Weight 2.2 kg
Environmental Requirements Transport
Ambient temperature: -30°C ~ +55°C
Relative humidity: 20% ~ 95% (non-condensing)
Atmospheric pressure: 70 kPa ~ 106 kPa
Storage
Ambient temperature: -30°C ~ +55°C
Relative humidity: 20% ~ 95%
Atmospheric pressure: 70 kPa ~ 106 kPa
Operation
Ambient temperature: +5°C ~ +40°C
Relative humidity: 20% ~ 90%
Atmospheric pressure: 86 kPa ~ 106 kPa
Calibration Function Disposable IV set of any brand is suitable for this pump
Three Working Modes Rate / volume / time mode
Alarm Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle.

Additional information

Weight 4 kg
Dimensions 23 × 24 × 31 cm
