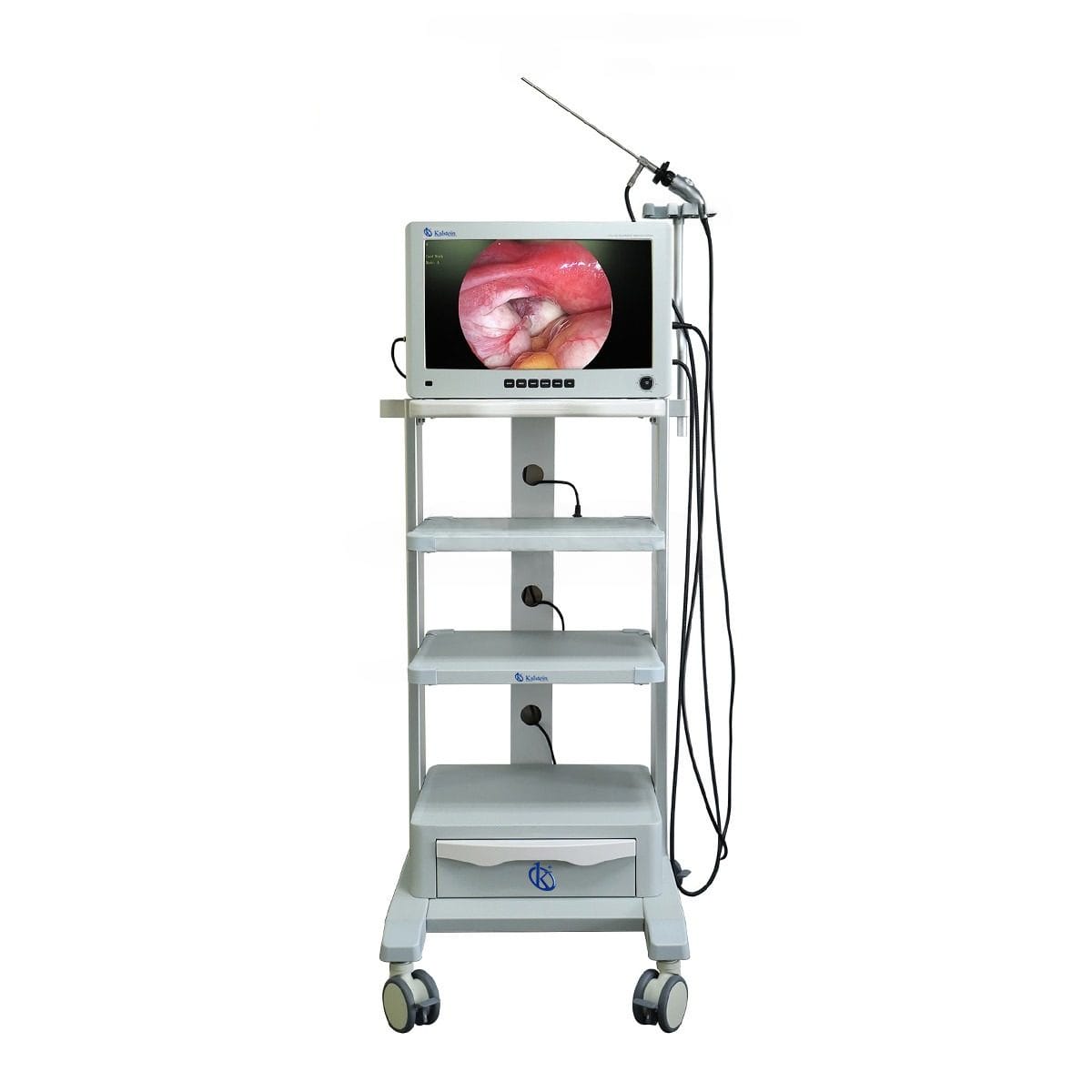

26-inch Mobile High-Definition Endoscopic Imaging System YR06156

ManufacturerKalstein

Description

The 26-inch Mobile High-Definition Endoscopic Imaging System YR06156 is a state-of-the-art medical device designed to offer unparalleled clarity and convenience in endoscopic procedures. Featuring an integrated system that combines a monitor, camera, light source, and image recorder, this compact device is both lightweight and easy to maneuver. Its portability allows for utilization in various medical settings and fields, making it an essential tool for professionals seeking high-quality imaging solutions. Additionally, its compatibility with optics, electronic, and fiber endoscopy broadens its versatility, ensuring exceptional performance across different endoscopic techniques.

Market Price

The market price for advanced endoscopic imaging systems like the YR06156 typically ranges from $17,000 to $18,000 USD. However, prices may vary based on the supplier, location, and additional features included. For the most accurate pricing, we encourage you to request a personalized quote through our platform.

Frequently Asked Questions

  • What are the power requirements for the YR06156? – The system features a medical LED light source with a power requirement of ≥30W.
  • Is the system compatible with existing endoscopic equipment? – Yes, it is compatible with optics, electronic, and fiber endoscopy systems.
  • What is the resolution of the camera? – The camera offers a full HD resolution of 1920*1080.

Advantages and Disadvantages

Advantages: The YR06156 system offers a portable, all-in-one solution that simplifies endoscopic procedures with seamless network integration for video transmission and live broadcasting. Its compact design and mobility are perfect for variable medical environments. Disadvantages: As a high-end model, it may require a substantial initial investment, and users may need some training to fully utilize its advanced features.

Product Use in the Field

This system is ideal for a range of applications in medical facilities, including operating rooms and clinics. Its portable power and adjustable monitor position make it highly adaptable to different procedural requirements, ensuring optimal performance and ease of use for medical professionals during endoscopic examinations.

Recommendations

To maximize the benefits of the YR06156, ensure regular maintenance is performed to keep the equipment in top condition. We recommend taking advantage of the wireless remote control functions and network capabilities to enhance collaborative procedures and improve patient outcomes.

Features

  • All-in-one monitor/camera/light source and image recorder
  • Compact design for ease of motion and transport
  • Portable power supply suitable for diverse settings
  • Adjustable monitor for flexible viewing angles
  • Compatible with a variety of endoscopic technologies

Technical Specifications

Model YR06156
Medical LED Light Source Power ≥30W
Color Temperature 6500K
Illumination ≥700,000Lux
Color Render Index 93
Adjustment Mode Stepless Adjustment
Integrated Control System Control Method Foot Switch/Remote Control
Wireless Remote Control Infrared code full function remote control
Foot Switch Record/Snapshot
Camera Sensor 1/3inch Full HD CMOS
Resolution 1920*1080
Scanning Method Progressive Scanning
Scanning Frame Rate 60fps
Minimum Illumination 1Lux
Electronic Shutter 1/60 ~ 1/10000s
White Balance Manual/Auto
Back Light Compensation Auto

Additional information

Weight 24 kg
Dimensions 90 × 40 × 71 cm
