Kalstein

Chemische Zuurkast YR05808 / YR05812

Epoxy staal · zuur- en loogbestendig · ≤ 60 dB

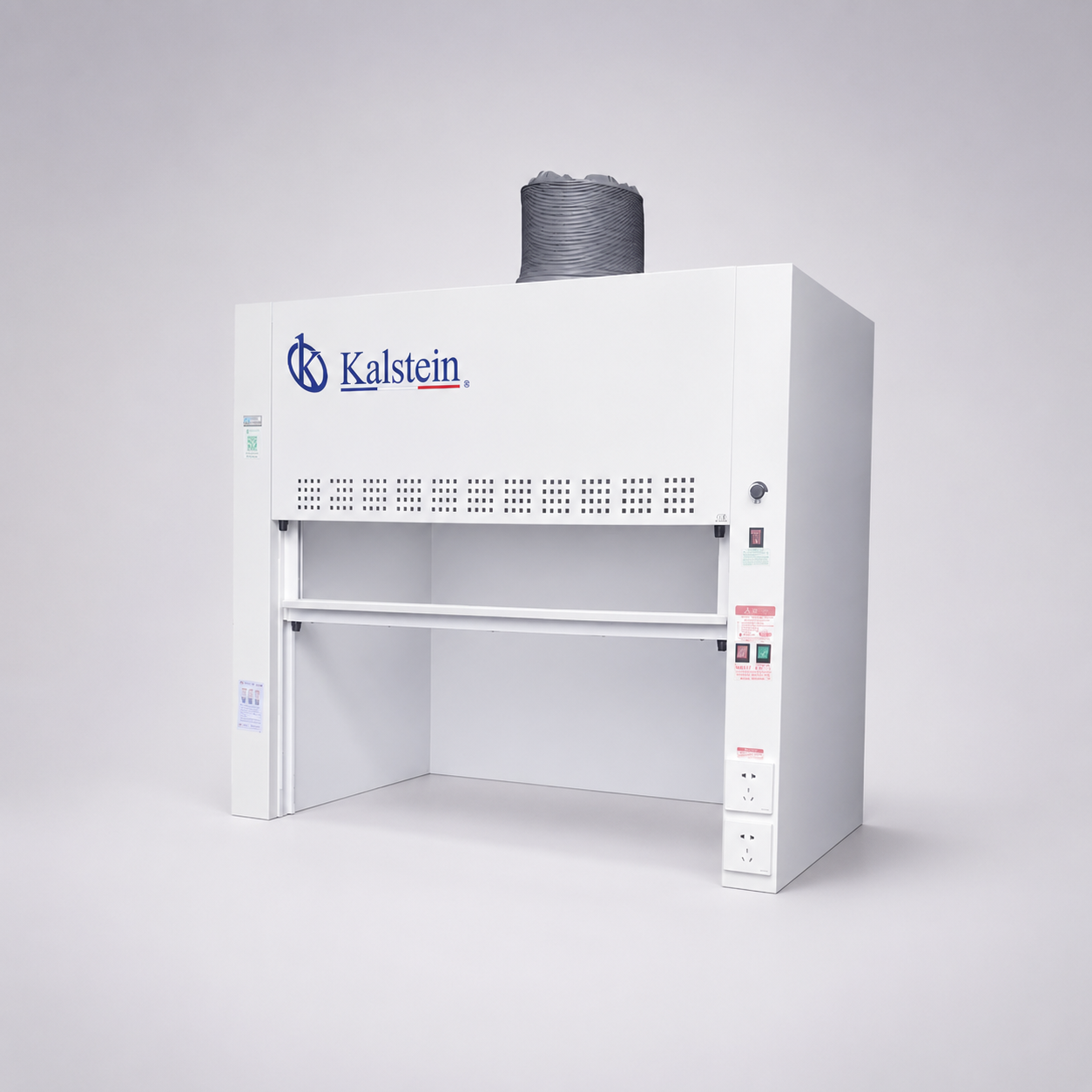

Chemische Zuurkast YR05808 / YR05812

De Kalstein YR05808 en YR05812 zijn chemische zuurkasten van 1,2 mm koudgewalst staal met epoxy-poedercoating, bestand tegen sterke zuren en logen. Fenolhars werkblad, gehard veiligheidsglas en axiale ventilator 0,4-0,6 m/s beschermen de operator bij ruis onder 60 dB.

Door Kalstein · Gecertificeerde laboratoriumapparatuur

Interactive tour

Every component, engineered for your safety

Click the hotspots to explore the materials and systems that make this hood a reliable choice for basic chemistry.

Inspecteerbare onderdelen

  • Epoxy-coated steel bodyStructure

    Cold-rolled steel body with epoxy powder coating for chemical resistance.

  • Tempered glass windowSafety

    Transparent front barrier protects the operator while preserving visibility.

  • Axial blowerExtraction

    Adjustable blower captures vapors through the front opening.

  • Upper exhaust ductAirflow

    Captured fumes leave through the top duct toward extraction or exterior exhaust.

  • Phenolic resin worktopMaterials

    Durable 12.7 mm work surface for routine chemical handling.

  • LED lightingLighting

    Integrated lighting keeps reactions and glassware clearly visible.

Belangrijkste kenmerken

  • Stalen romp 1,2 mm met epoxy-coating
  • Frontsnelheid 0,4-0,6 m/s in drie modi
  • Afzuiging 800-1000 m³/h · axiale ventilator · bovenafvoer
  • Fenolhars werkblad 12,7 mm
  • Gehard veiligheidsglas met contragewicht
  • LED 10 W ≥ 800 lux · geluid ≤ 60 dB

Drievoudige bescherming · engineering-lagen

Operator protection

Front sash and horizontal room-air intake keep vapors and fumes inside the chamber and away from the operator.

  • Front sash
  • Room-air intake
  • Alarm on low flow
Face velocity
0.5 m/s
Noise level
≤ 60 dB
LED lighting
10 W

Structural durability

Cold-rolled steel with epoxy coating resists chemical spills and years of daily operation.

  • Epoxy coating
  • Phenolic worktop
  • Tempered glass
Steel gauge
1.2 mm
Worktop
12.7 mm
Tempered glass
5 mm

Versatile installation

Available in two widths and compatible with laboratory exhaust ducts up to 3 m.

  • 1300 mm width
  • 1800 mm width
  • Top duct output
m³/h airflow
800–1000
Duct length
3 m
Power
220 V

Luchtstroommodi · wat gebeurt in elke richting

  • Low — Low airflow · 0.4 m/s

    Recommended for low-volatility solvents and general handling.

    Face velocity: 0.4 m/s

  • Medium — Medium airflow · 0.5 m/s

    Optimal balance for most chemistry protocols.

    Face velocity: 0.5 m/s

  • High — High airflow · 0.6 m/s

    Aggressive extraction for highly volatile or toxic vapors.

    Face velocity: 0.6 m/s

  • Auto — Automatic purge cycle

    Periodic full-power ventilation to purge residual vapors before shutdown.

    Airflow: ≤ 1000 m³/h

Technische specificaties

ModelYR05808 / YR05812
ConstructieCold-rolled steel 1.2 mm · epoxy powder coating
Frontsnelheid0.4 – 0.6 m/s
Afzuigcapaciteit800 – 1000 m³/h
Geluidsniveau≤ 60 dB
VerlichtingLED 10 W
WerkbladPhenolic resin 12.7 mm
FrontraamTempered safety glass
BuitenafmetingenYR05808: 1300×850×2350 · YR05812: 1800×850×2350 mm
Voeding220 V / 50-60 Hz

Toepassingen

  • Chemie-onderwijs
  • Kwaliteitscontrole
  • Monstervoorbereiding met zuren/basen
  • Industriële en voedingschemie
  • Onderzoek met vluchtige oplosmiddelen

Praktijkscenario’s · begeleide flows

General chemistry laboratory

Everyday handling of solvents, acids and bases in teaching and research chemistry.

Typische duur: 30–90 min

  1. Open sash to working height
  2. Turn on fan and lighting
  3. Perform reactions inside the chamber
  4. Close containers and lower sash
  5. Purge before shutdown

Pharmaceutical compounding

Weighing and mixing of raw materials in compounding pharmacies.

Typische duur: 15–60 min

  1. Clean worktop and calibrate balance
  2. Introduce ingredients
  3. Weigh and mix inside the chamber
  4. Package and label
  5. Clean the fume hood

Analytical sample preparation

Sample digestion, extraction and preparation for chromatography or spectroscopy.

Typische duur: 20–120 min

  1. Prepare glassware
  2. Add solvents inside the hood
  3. Perform digestion or extraction
  4. Transfer sample to instrument
  5. Decontaminate

Fast quotation · 15 seconds

Add the YR05808 to your chemistry lab

Two widths, one quality standard. Receive full specification, delivery and installation in a single quote.

Ontvang uw offerte in 15 secondenVerkoop contacterenBekijk catalogus

Veelgestelde vragen

Voor welke chemicaliën?

Basischemie met sterke zuren/logen. Voor perchloor-/fluorwaterstofzuur YR05820-SS RVS gebruiken.

Verschil YR05808/YR05812?

1300 mm vs 1800 mm breedte, zelfde constructie.

Externe afvoer?

Ja, aansluiten op dakafzuiging.

Geluid?

≤ 60 dB op operatorpositie bij maximaal.
