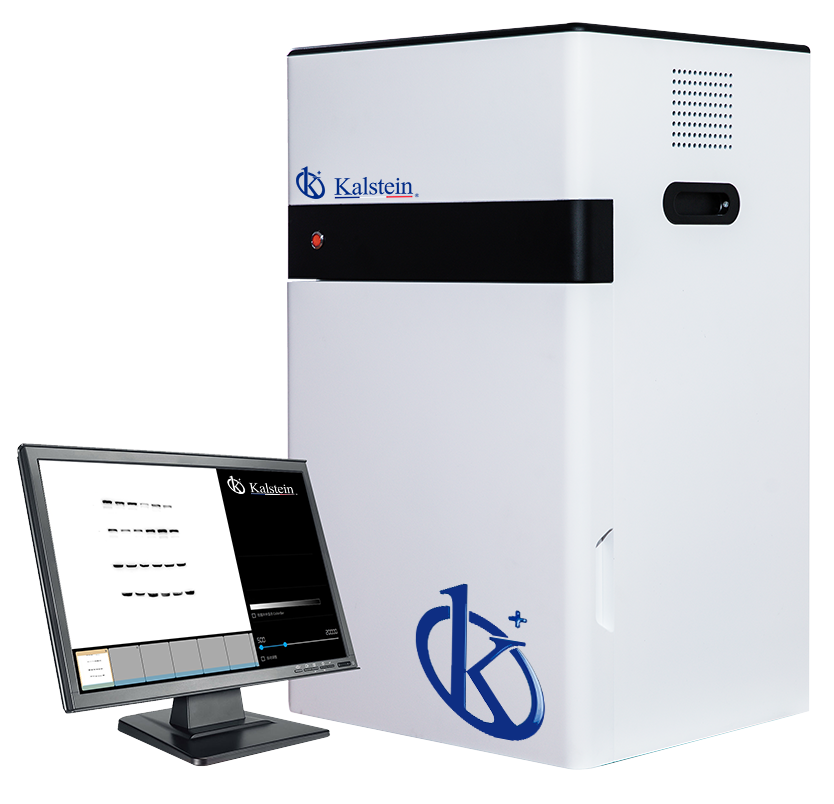

Multifunctional Imaging System YR06067

The Multifunctional Imager YR06067–YR06068 is a cutting-edge device designed to deliver exceptional imaging capabilities with its large view area of up to 20x20cm. Equipped with a cooled digital camera using a sensitive CCD chip, this imager ensures accurate and clear visual results, making it perfect for various applications, including standard Western blot imaging with ECL. Its user-friendly interface and a versatile range of optional accessories make it a valuable tool in any laboratory setting. Furthermore, the unlimited, free downloadable software with free updates ensures that users can always operate with the latest features and improvements.
This page provides an overview of the Multifunctional Imaging System YR06067, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Netherlands, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider

Before selecting the Multifunctional Imaging System YR06067, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Netherlands, evaluation should consider local context such as agro-tech, biotech, EU CE marking and match the product to the real workload of the laboratory.
Market price range

The investment should be evaluated according to configuration, required accessories, installation conditions and available technical support.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Netherlands, budget comparison should include CE references, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money

The Multifunctional Imager YR06067–YR06068 offers several advantages, including high-resolution imaging, a wide dynamic range, and advanced cooling capabilities, which ensure reliable performance even under demanding conditions. The free and perpetually updated software enhances its value, providing all users with equal access to improvements. However, its high price point could be a drawback for smaller laboratories or those with limited budgets.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages

Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance

To maximize the performance and longevity of the Multifunctional Imager YR06067–YR06068 , users should ensure regular maintenance, such as cleaning the lenses and updating the software as new versions become available. It is also advisable to store the device in a controlled environment to prevent exposure to dust and humidity, which can affect its performance over time.
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Netherlands helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Multifunctional Imaging System YR06067

Multifunctional Imaging System YR06067
Características
- Amplia zona de visión (máximo 20x20cm)
- Fácil de usar
- Generador de imágenes Western blot estándar con ECL
- Amplia aplicación con accesorios opcionales
- Cámara digital refrigerada con chip CCD sensible
- Software ilimitado, descarga gratuita, actualización gratuita.
Especificaciones técnicas
| Model | YR06067 (current) | YR06068 |
| Digital camera | Cooled CCD camera | |
| Physical resolution | 6 Megapixels, 2750*2200 | |
| Pixel density and A/D | 16 bits | |
| Gray scales | 65536 | |
| Dynamic range | ≥4.6OD | |
| Cooling temperature | -60℃ ambient, -30℃ regulated | |
| Scientific lens (difference between both models) | F0.95 sensitive lens | F0.8 ultra-sensitive objective |
| Chemiluminescence sample tray | 4 Layer | |
| UV transmission | 302nm-312nm, area: 21x26cm | |
| White LED Transmission | Surface: 19x26cm | |
| Filter wheel | Position Five | |
| Filter | Gel Doc filter | |
| UV protection | UV protection shield | |
| Image acquisition software | No dongle software required, unlimited users, free upgrade | |
| Image analysis software | No dongle software required, unlimited users, free upgrade | |
Products related to model YR06067

Multifunctional Imager YR06210-YR06211
Ver producto
Multifunctional Imager YR06212
Ver producto
Gel Documentation System YR06063–YR06064
Ver producto
Chemiluminescence Imager (Mini) YR06065–YR06066
Ver producto
Gel Documentation System YR06207
Ver producto
Mini Multifunctional Imager YR06208-YR06209
Ver productoFrequently Asked Questions about the Multifunctional Imaging System YR06067
Q: Does the imager come with the necessary software included?
A: Yes, the imager includes image acquisition and analysis software, both of which are available for free download and are continually updated at no additional cost.
Q: What are the differences between models YR06067 and YR06068?
A: The primary difference lies in the scientific lens; the YR06067 features a Sensitive F0.95 Lens, whereas the YR06068 comes with an Ultra sensitive F0.8 Lens.
How do I choose the right multifunctional imaging system yr06067 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
