Microscope Trinocular YR0231: Buying Criteria and Validation
Product Description

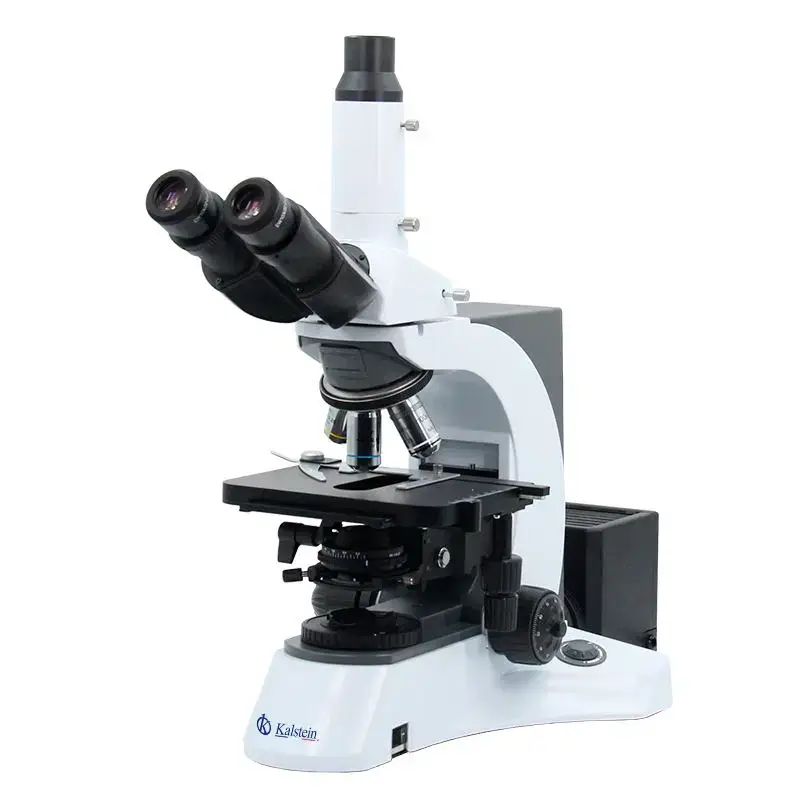

The Microscope Trinocular YR0231 is designed for advanced laboratory applications, offering a versatile optical system and user-friendly features. This trinocular microscope features a Seidentopf-style head, set at a 30° angle for comfortable viewing. The head is rotatable up to 360°, making it easy to share observations with colleagues and adjust the interpupillary distance from 48 mm to 75 mm, with adjustable diopter settings on the left eyepiece to accommodate individual vision differences.
Equipped with a quintuple revolving nosepiece, users can easily switch between different objectives to achieve magnifications of 4x, 10x, 40x, and 100x, which are all Infinity Plan acromatic objectives. The mechanical stage measures 185 x 142 mm and offers a movement range of 55 x 75 mm, ensuring stability and precision when positioning specimens.
The microscope also comes with a tilting condenser with a numerical aperture (NA) of 0.9/0.25, providing excellent illumination control. The external Kohler illumination system utilizes a 6V30W halogen lamp, allowing adjustable brightness levels. The focus adjustment includes coarse and fine settings, with a 24 mm focus range and a fine division of 0.001 mm, facilitating precise focusing on specimens.
Market Price
The current market price for the Microscope Trinocular YR0231 is approximately $1011.00 USD. This price reflects the quality of materials and technology integrated into the microscope, making it a competitive option for laboratories aiming to enhance their observational capabilities.
| Feature | YR0231 |
|---|---|
| Optical System | Infinity Plan |
| Tilt Angle | 30° |
| Interpupillary Distance | 48-75 mm |
| Focus Adjustment Range | 24 mm |
| Objective Magnifications | 4x, 10x, 40x, 100x |
Frequently Asked Questions
What is the main advantage of the YR0231 microscope?
The YR0231 microscope offers a trinocular head that allows for simultaneous viewing and photography, enhancing collaboration and documentation during experiments.
Can the YR0231 be used for different types of microscopy?
Yes, the YR0231 supports bright field microscopy and can be adapted for dark field, phase contrast, and fluorescence microscopy with additional accessories.
What type of lighting does the microscope use?
This microscope is equipped with a 6V30W halogen lamp for illumination, providing bright and clear light for optimal specimen observation.
Is the YR0231 suitable for educational purposes?
Yes, the YR0231 is suitable for educational institutions as it combines ease of use with high-quality optics, making it ideal for teaching environments.
What maintenance is required for the YR0231?
Regular cleaning of the optics and mechanical components is recommended, along with periodic checks and replacements of the halogen lamp to ensure consistent performance.
Are there optional accessories available for the YR0231?
Yes, various optional accessories such as different eyepieces, objectives, and specialized condensers can be acquired to enhance the capabilities of the YR0231 microscope.
How can I request a quote for the YR0231 microscope?
You can easily request a quote for the YR0231 microscope by visiting our online platform, where you can communicate your specific needs and receive tailored pricing options.
Pros and Cons
Pros:
- High-quality optical system with Infinity Plan objectives.
- Trinocular head allows for simultaneous viewing and imaging.
- Adjustable features accommodate different user preferences.
- Robust mechanical stage for stable specimen positioning.
- Versatile for various microscopy techniques with additional accessories.
Cons:
- Higher initial investment compared to basic microscopes.
- Requires some level of expertise for optimal use.
- Additional accessories may increase overall costs.
Field Usage
The Microscope Trinocular YR0231 is ideally suited for a variety of scientific fields, including biology, materials science, and medical research. Its adaptability makes it a valuable tool in educational laboratories, research institutions, and clinical settings. The microscope can be employed for detailed cellular studies, histological analysis, and various applications in life sciences, ensuring that users can achieve precise and reliable results.
Recommendations
For best results using the YR0231, users are encouraged to familiarize themselves with the microscope's features and capabilities. It is advisable to invest in additional objectives and filters that match specific research needs. Regular maintenance and cleaning will also prolong the life and performance of the microscope. When acquiring this equipment for educational purposes, consider providing adequate training for students to maximize the learning experience.
