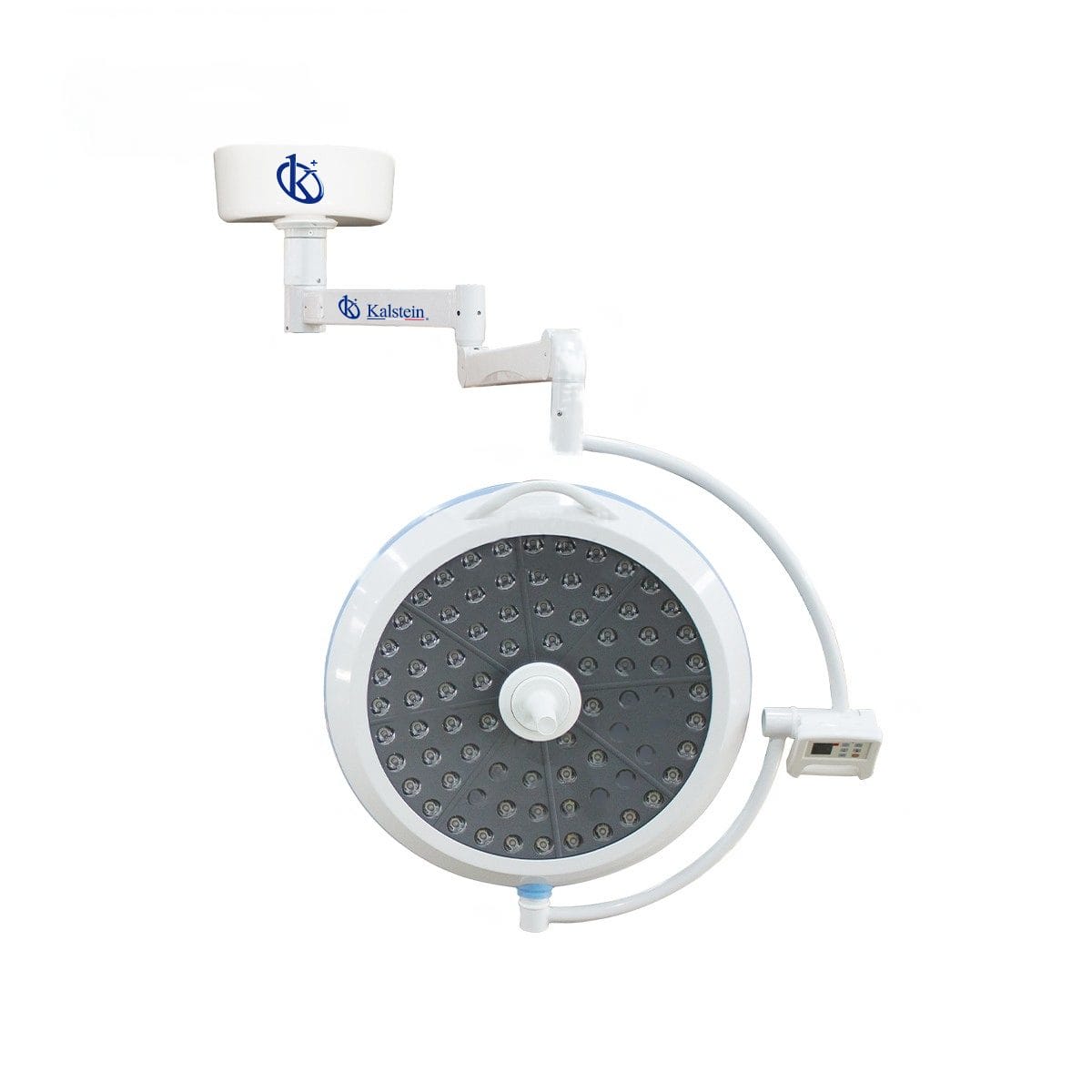

LED Shadowless Surgical Lamp YR06117: Installation and Commissioning Guide 2026
The YR06117 LED Shadowless Surgical Lamp is designed to provide superior illumination in surgical settings. This guide focuses on the installation and commissioning processes necessary to ensure that the lamp operates at its highest potential. The lamp's aerodynamic design eliminates dead flow angles, making it an essential tool in modern surgical environments.
Overview of the YR06117 LED Shadowless Surgical Lamp
The YR06117 features a completely closed, aerodynamic head design that meets high-level laminar flow requirements and sterile conditions required in operating rooms. This guide will detail everything from unboxing to final adjustments to ensure the lamp is ready for use.
Technical Specifications of YR06117
| Specification | Details |
|---|---|
| Model | YR06117 |
| Mounting | Ceiling-mounted |
| LED Bulbs | 80 pcs |
| Illuminance | 40,000 ~ 160,000 Lux |
| Color Temperature | 3,000 ~ 6,700K adjustable |
| Diameter of Light Spot | 160 - 280 mm |
| Dimming System | Continuous dimming system |
| Color Rendering Index | ≥96 |
| Lighting Depth | ≥600 mm |
| Temperature Rises at Operator’s Head | ≤1℃ |
| Temperature Rises at Operating Field Area | ≤2℃ |
| Voltage | 220V, 50Hz |
| Optimum Installation Height | 3.0 m |
| Lowest Installation Height | 2.8 m |
Unboxing Checklist
Before starting the installation process, ensure that all components are present:
- LED Shadowless Surgical Lamp YR06117
- Installation manual
- Mounting hardware
- Safety goggles
- Leveling tool
- Wrench set
Installation Steps for YR06117
The installation process involves several crucial steps:
- Mounting the Lamp: Select a suitable ceiling location, ensuring it meets the minimum and optimum height requirements.
- Anchoring: Use the mounting hardware included to securely anchor the lamp to the ceiling.
- Wiring: Connect the lamp to the electrical supply, ensuring all connections are secure and insulated.
- Levelling: Use a leveling tool to ensure the lamp is perfectly horizontal.
- Power-Up: Switch on the power supply to conduct initial checks.
- Calibration: Adjust the color temperature and brightness settings as per surgical requirements.
First Run Calibration
After installation, the lamp requires calibration to ensure accurate performance:
- Adjust the color temperature to match the operating environment.
- Test the dimming function to ensure smooth operation across all brightness settings.
- Verify the illuminance level at the operating field to ensure compliance with surgical standards.
Common Installation Mistakes
During the installation process, ensure the following common mistakes are avoided:
- Incorrect mounting height can lead to inadequate lighting during procedures.
- Insufficient anchoring may cause the lamp to become unstable.
- Improper electrical connections pose a safety risk.
Frequently Asked Questions
What is the maximum illuminance level of the YR06117?
The YR06117 can achieve illuminance levels of up to 160,000 Lux, providing exceptional lighting for surgical procedures.
How do I adjust the color temperature of the lamp?
The color temperature of the YR06117 is adjustable between 3,000 to 6,700K, allowing for customization based on the specific requirements of the surgical environment.
What are the optimal installation heights for the YR06117?
The optimal installation height for the YR06117 is 3.0 meters, while the lowest installation height should be no less than 2.8 meters.
Can the lamp be used in veterinary surgeries?
Yes, the YR06117 is suitable for veterinary surgeries due to its excellent lighting capabilities and sterile design.
What is the expected lifespan of the LED bulbs in the YR06117?
The LED bulbs in the YR06117 have an extra-long lifespan, ensuring minimal replacements over time.
What maintenance is required for the YR06117?
Regular maintenance includes checking electrical connections, cleaning the lamp surface, and verifying the integrity of the mounting hardware.
