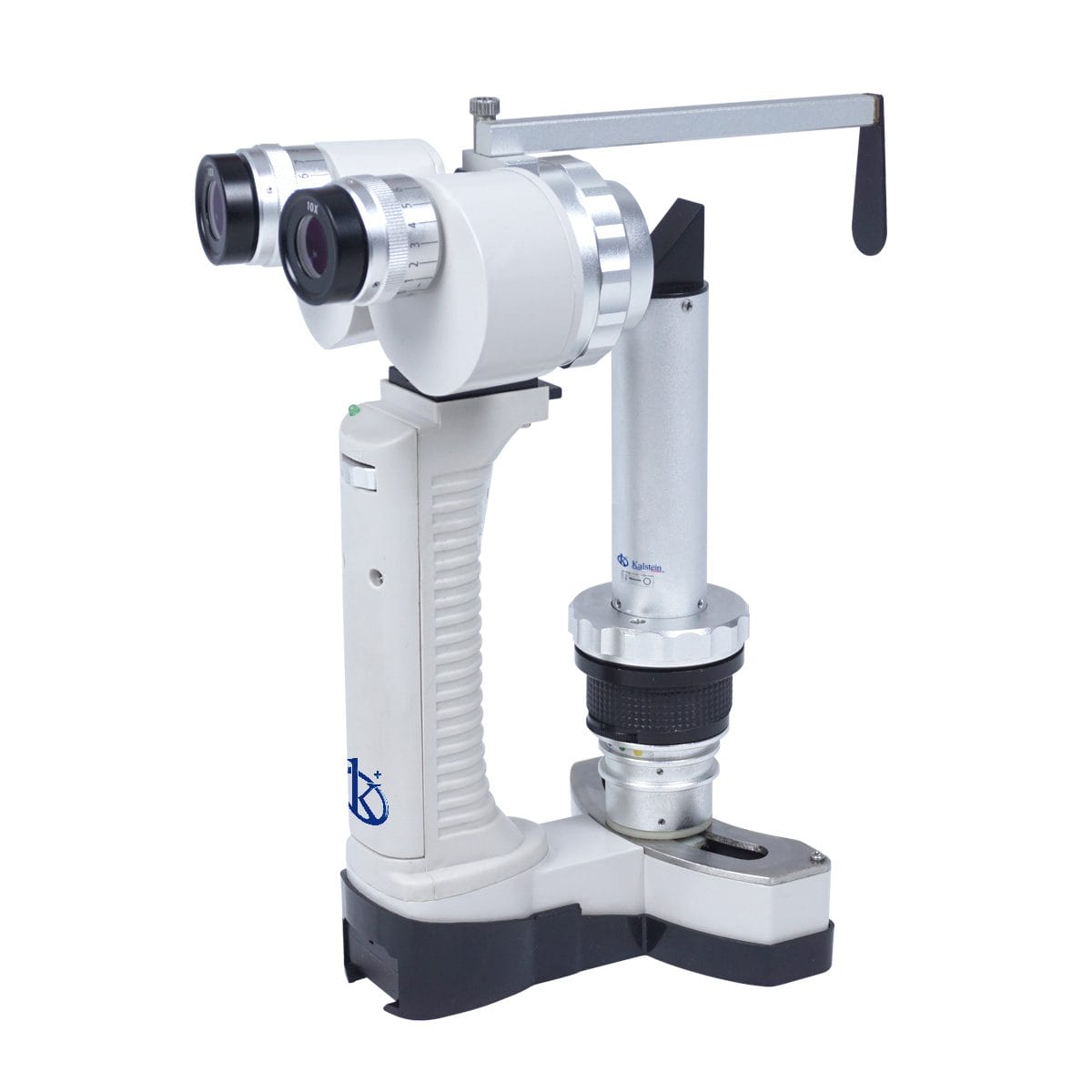

Handheld Veterinary Slit Lamp YR06199: Principles of Operation and Scientific Foundations
The Handheld Veterinary Slit Lamp YR06199 is an advanced diagnostic tool designed specifically for veterinary applications. Understanding the principles of operation and scientific foundations behind this device is crucial for optimal usage and maintenance. This article delves into the core functionalities, design choices, and operational principles that make YR06199 an indispensable asset in veterinary practices.
Understanding the Science Behind the Slit Lamp
The Handheld Veterinary Slit Lamp operates on the principles of optical microscopy combined with high-intensity illumination. At its core, it utilizes a converging microscope system that produces a clear and sharp slit of light, allowing veterinarians to examine ocular structures in detail.
The use of high-brightness LED illumination is fundamental to the YR06199's design. This light source emits up to 15,000 LUX, providing the necessary brightness to visualize even the most subtle details in the ocular anatomy. The choice of LED technology not only extends the lifespan of the device to over 50,000 hours but also ensures energy efficiency.
Operational Mechanics of YR06199
The operational mechanics of the Handheld Veterinary Slit Lamp YR06199 can be broken down into several key components:
- Adjustable Slit Width: The slit width can be continuously adjusted from 0 to 12 mm, allowing for flexibility in examinations.
- Magnification Options: With objective lenses of 1.0X and 1.6X, along with a 10X eyepiece, the total magnifications available are 10X and 16X, providing a comprehensive view of the examined area.
- Telescopic Forehead Rest: This feature enhances user comfort and stability, facilitating easier observations and diopter adjustments.
- Rotating Objective Lens: This allows for seamless adjustment of magnification during operations.
Key Design Choices and Their Impact
The design of the YR06199 was driven by the need for portability, ease of use, and functionality in a veterinary setting. Weighing only 700 grams with the battery, the device is lightweight, making it ideal for mobile diagnostics. Its battery-powered operation allows for 5-6 hours of continuous use, ensuring that veterinary professionals can conduct examinations without the hassle of plugging into a power source.
Additionally, the incorporation of various filters, including thermal, light-reducing, red-free, and cobalt blue filters, enhances the clinical versatility of the slit lamp. These filters allow for detailed examinations of different ocular conditions, making it applicable in a wide range of veterinary scenarios.
Technical Specifications of YR06199
| Specification | Details |
|---|---|
| Model | YR06199 |
| Microscope Type | Converging |
| Objective Lens | 1.0X, 1.6X |
| Eyepiece | 10X |
| Total Magnifications | 10X, 16X |
| Working Distance | 81 mm |
| Intraocular Distance | 45mm-78mm |
| Diopter Adjustment | -8D-+8D |
| Slit Width | 0-12mm Continuous |
| Brightness | ≥30000 Lux |
| Battery Life | 5-6 hours |
| Weight | ≤700g (including battery) |
| Dimensions | 169.5mm × 109.5mm × 228.5mm |
Common Applications in Veterinary Practice
The Handheld Veterinary Slit Lamp YR06199 is primarily used for ocular examinations, allowing veterinarians to diagnose conditions such as cataracts, glaucoma, and retinal diseases. Its versatility also extends to evaluating corneal ulcers, foreign bodies, and other ocular surface issues.
In educational settings, this device is utilized for teaching purposes, enabling veterinary students to gain hands-on experience with ocular diagnostics. Furthermore, it can be adapted for use in fieldwork, particularly in rural areas where portable diagnostic tools are essential.
Frequently Asked Questions
What is the maximum magnification capability of the YR06199?
The Handheld Veterinary Slit Lamp YR06199 offers a total magnification capability of up to 16X, allowing for detailed examination of ocular structures.
How long can the YR06199 operate on a full battery?
On a full battery, the YR06199 can operate continuously for approximately 5 to 6 hours, making it suitable for extended use in field conditions.
What types of filters are compatible with the YR06199?
The YR06199 is compatible with several types of filters including thermal filters, light-reducing filters, red-free filters, and cobalt blue filters, enhancing its diagnostic capabilities.
Can the slit width be adjusted during use?
Yes, the slit width on the YR06199 can be adjusted continuously from 0 to 12 mm to suit various examination needs.
What kind of maintenance does the YR06199 require?
Regular maintenance of the YR06199 includes ensuring the lenses are clean, checking the battery condition, and validating the calibration of the device periodically.
Is the YR06199 suitable for both small and large animal examinations?
Yes, while primarily designed for small animal use, the YR06199 can also be utilized for larger animals, depending on the examination needs and environment.
Where can I request a quote for the YR06199?
You can easily request a quote for the Handheld Veterinary Slit Lamp YR06199 on Kalstein Plus, where we provide competitive pricing and excellent service.
