Bedside Monitor YR02175: Installation and Commissioning Guide 2026
The Bedside Monitor YR02175 is an advanced patient monitoring solution, integrating modular parameters suitable for use in operating rooms and intensive care units (ICUs). This guide provides an in-depth exploration of the installation and commissioning process, ensuring that healthcare professionals can effectively set up the monitor for optimal functionality.
Overview of Bedside Monitor YR02175

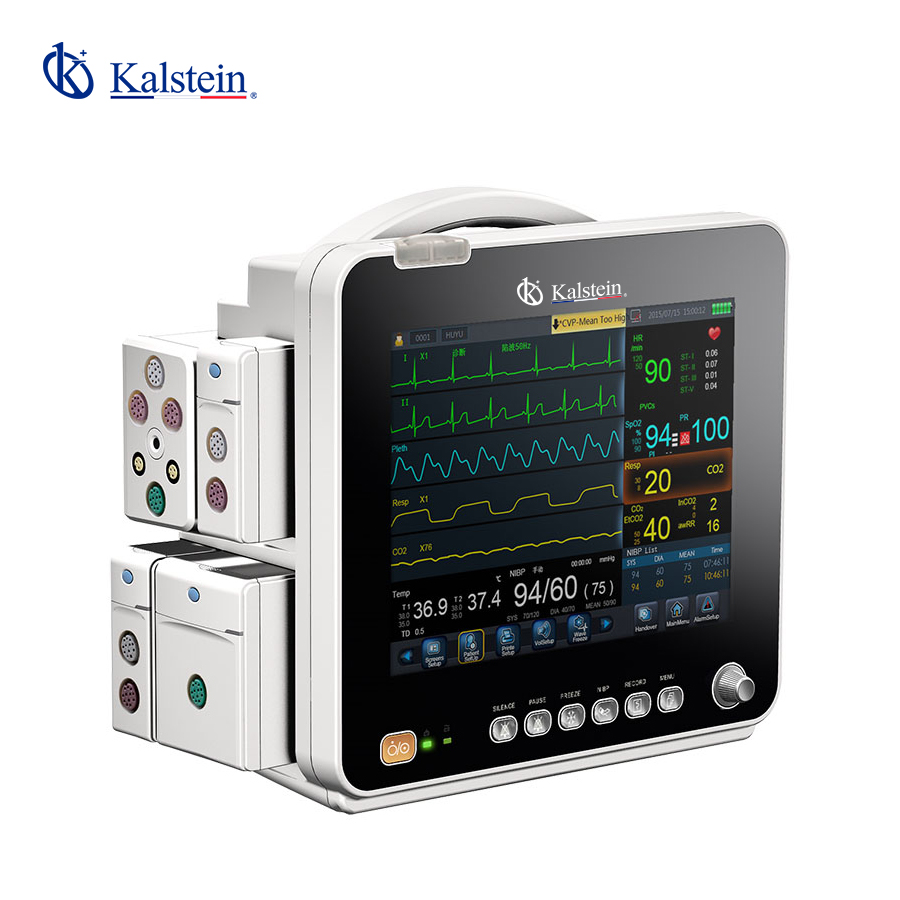

The YR02175 model features a 12.1-inch LCD screen, capable of displaying multiple parameters crucial for monitoring patients. The standard parameters include ECG, SpO2, temperature, non-invasive blood pressure (NIBP), respiration, and pulse/heart rate. These features make it ideal for both surgical and ICU environments.
Technical Specifications of YR02175
| Specification | Details |
|---|---|
| Model | YR02175 |
| Brand | Kalstein |
| Category | Patient Monitor |
| Price (USD) | 1748.00 |
| Gross Weight | 6 kg |
| Dimensions | 39 x 33.5 x 44.5 cm |
Unboxing and Initial Setup
Upon receiving the Bedside Monitor YR02175, ensure you have the following items available:
- Monitor Unit
- Power Supply
- User Manual
- Mounting Accessories
Start by removing all packaging materials. Inspect the unit for any visible damage. Following this, mount the monitor securely to avoid instability during operation.
Electrical Connections and Power-Up Sequence
Connect the power supply to a stable power source. Ensure that the outlet meets the voltage requirements specified in the manual. Press the power button located on the front panel. Wait for the device to complete its self-diagnostic tests. The screen should display the main menu upon successful boot-up.
Calibration and First Measurement Validation
Before using the monitor on patients, perform necessary calibrations:
- ECG Calibration: Connect the ECG leads and ensure the waveforms are stable.
- SpO2 Calibration: Apply the sensor to a healthy subject and confirm readings align with expected values.
- NIBP Calibration: Use a sphygmomanometer for cross-validation against the readings from the YR02175.
Once calibration is completed, conduct a first run on a test subject to validate the accuracy of all measurements.
Common Installation Mistakes and Troubleshooting
During installation, common errors include improper mounting, incorrect electrical connections, and failure to calibrate. Here are the potential mistakes and their solutions:
| Symptom | Cause | Solution |
|---|---|---|
| Monitor does not power on | Power supply unplugged | Ensure secure connection to power source |
| Inaccurate ECG readings | Improper lead placement | Verify lead locations and adjust accordingly |
| SpO2 readings are inconsistent | Poor sensor contact | Reapply sensor ensuring good contact with skin |
Environmental Conditions and Site Requirements
For optimal performance, the YR02175 requires specific environmental conditions:
- Operating Temperature: 10°C to 40°C
- Humidity: 30% to 75% (non-condensing)
- Power Supply: 100-240V AC, 50/60 Hz
Prepare the site by ensuring adequate ventilation and avoiding exposure to direct sunlight and moisture.
Frequently Asked Questions
What are the standard parameters monitored by the YR02175?
The standard parameters include ECG, SpO2, temperature, NIBP, respiration, and pulse/heart rate.
How do I ensure proper calibration of the YR02175 monitor?
Calibration involves connecting the relevant sensors to a test subject and comparing the readings against known standards before using on patients.
Can the YR02175 be used in both surgical and ICU settings?
Yes, the YR02175 is designed for versatility in both surgical and ICU environments, providing accurate monitoring across different patient conditions.
What steps should I take if the monitor displays an error code?
Refer to the user manual for a list of error codes and their meanings. Common steps include checking the connections or recalibrating the device.
Is the YR02175 compatible with any accessories?
Yes, the YR02175 is compatible with various accessories such as ECG leads, SpO2 sensors, and temperature probes, enhancing its functionality.
What is the warranty period for the YR02175?
The warranty period is generally one year, covering all manufacturing defects. Extended warranties may be available through Kalstein.
How can I request a quote for the YR02175?
You can easily request a quote through our online platform, where you can specify your needs and receive a tailored offer.
