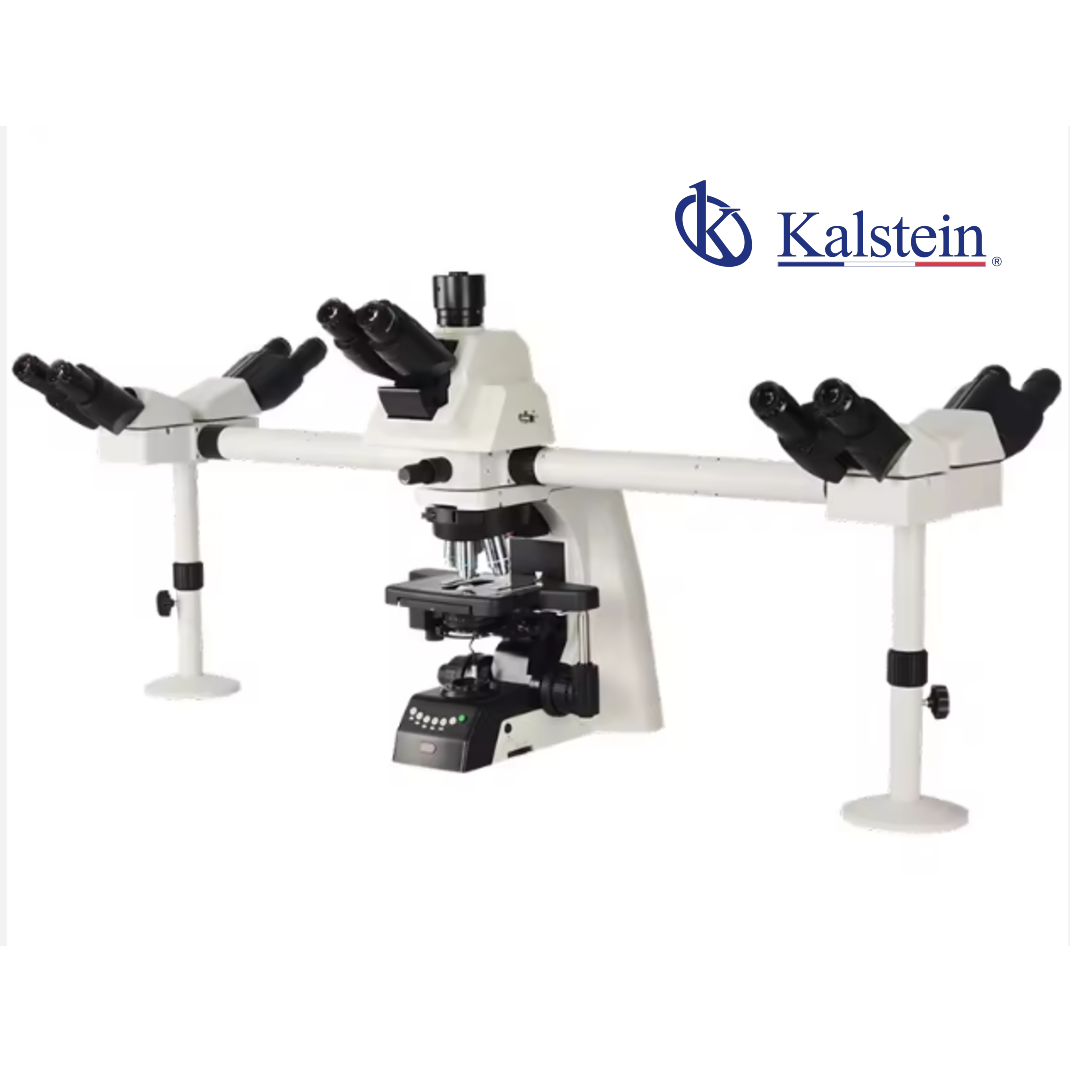

Multi Viewing Research Laboratory Microscope YR06688

The YR06688 Research Grade Microscope is an elite optical workstation designed for advanced medical education, collaborative clinical diagnosis, and high-level scientific research. Its hallmark feature is the 10-user multi-viewing system, allowing one instructor and nine observers to view the same specimen simultaneously with exceptional clarity. This equipment is specifically designed for pathology departments, university laboratories, and research centers that require real-time sample analysis by multiple specialists. Equipped with the NIS60 Infinity Color Corrected Optical System, it guarantees flat, sharp images from center to edge, facilitating academic discussion and accurate group diagnosis.

Design and Technology (or Functionality)

The YR06688 integrates cutting-edge innovations to enhance both user experience and technical precision:

• Extra Wide Field Optics: Features EW10x/25mm eyepieces with a 30mm diameter and adjustable diopters, offering one of the most extensive viewing areas available in the industry.
• Gorilla Glass Stage: A 190x152mm double-layer mechanical work surface equipped with high-resistance Gorilla Glass inserts to prevent scratches and facilitate easy cleaning.
• High-Power Kohler Illumination: A 24V/100W halogen light source ensures uniform and brilliant brightness, which is essential for distributing light across 10 simultaneous heads.
• ECO Function: An intelligent auto-off system that detects inactivity, significantly extending lamp life and reducing energy consumption.
• Customizable Focusing: Features a focus knob with adjustable tension and a safety limit screw. Uniquely, the handwheel can be interchanged between left and right sides based on user preference.
• Modular Technique Versatility: The 6-hole nosepiece includes slots for DIC and polarization, allowing for easy upgrades to Darkfield, Phase Contrast, and Fluorescence.

Frequently Asked Questions (FAQ)

• Do all observers see the same image quality? Yes, the system utilizes a high-precision beam splitter that distributes light evenly to all 10 heads, ensuring that every participant sees the same color fidelity and sharpness.
• Does it include a pointing system? Yes, the instructor's head is equipped with a built-in green LED laser pointer with adjustable brightness, allowing the primary user to highlight specific areas of interest for all observers.
• Is it possible to document the sessions? Absolutely. The main head is a Seidentopf Trinocular type, which allows for the installation of a digital camera or video adapter to record sessions or stream them to an external monitor.

Advantages and Disadvantages

Advantages:

• Superior Collaborative Capacity: Perfect for medical residency training and complex case reviews between multiple pathologists.
• Premium Optical Quality: NIS60 Infinity Plan objectives correct both chromatic and spherical aberrations.
• Ergonomic Design: 360° rotating heads with a 30° inclination to minimize neck strain during long observation hours.
• Built for Longevity: Research-grade construction materials designed for heavy daily use.

Disadvantages:

• Spatial Requirements: Due to the 10-head wing configuration, it requires a large and sturdy laboratory bench.
• Installation Complexity: Requires careful initial professional assembly to ensure all viewing bridges are perfectly aligned.

Field Use and Recommendations

This microscope is the ideal centerpiece for medical school amphitheaters, histopathology departments in general hospitals, and biotechnology research centers. It is particularly effective in forensic medicine and oncology for joint biopsy reviews. Pro Tip: Given the high output of the 100W halogen lamp, always utilize the ECO function to prevent unnecessary overheating. Ensure the swing-out condenser is properly centered to maintain maximum resolution across all objective magnifications.
