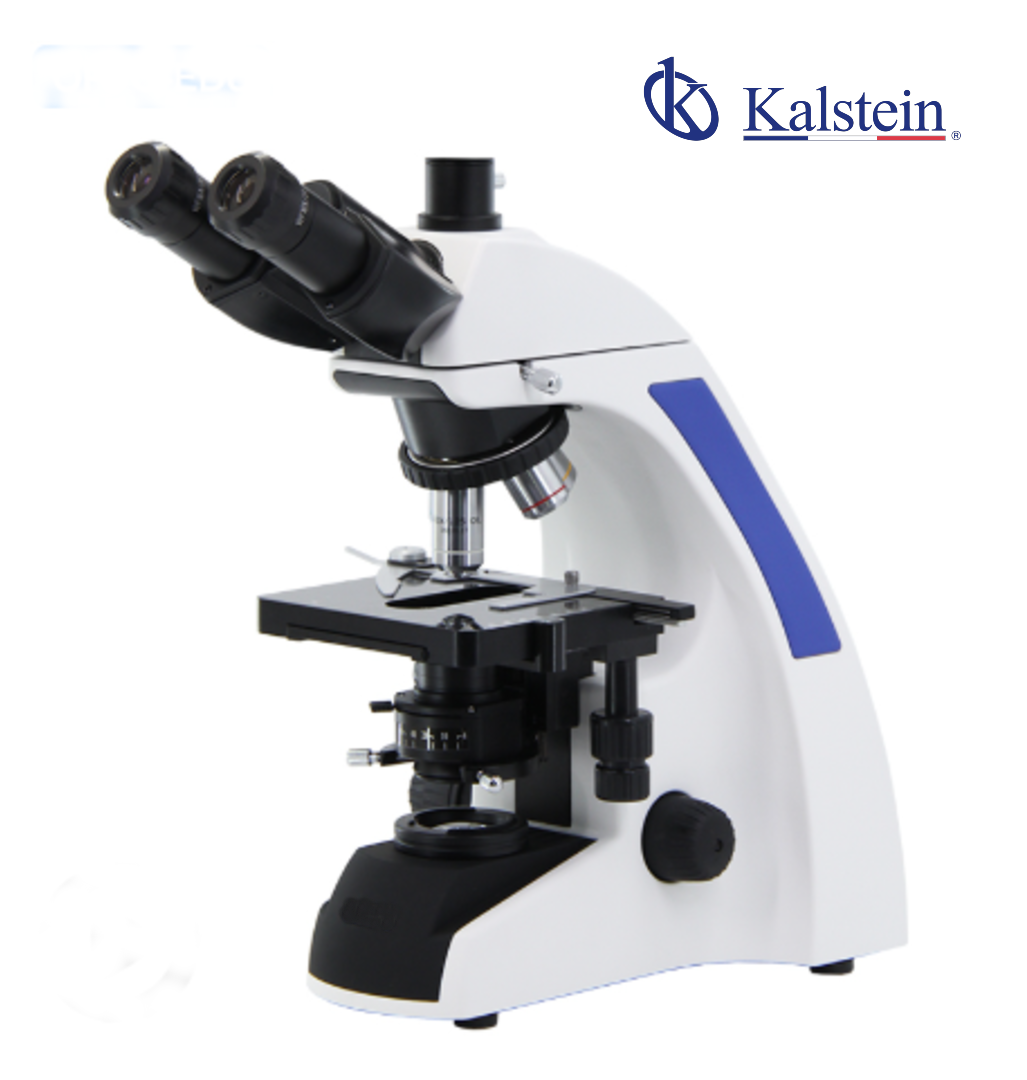

Laboratory Microscope YR06686

The YR06686 is a research-level biological microscope engineered to provide a superior visual experience through its Infinity high-contrast optical system. This equipment has been developed for professionals who demand diagnostic precision in high-intensity work environments. Thanks to its wide-field eyepieces and ergonomic design, it is the ideal choice for pathology laboratories, university research departments, and clinical diagnostic centers looking for reliability and exceptional image quality.

Design and Technology (or Functionality)

This microscope stands out for its large-scale mechanical stage (216x150 mm) with a graphite surface, ensuring durability and smooth slide movement. Its "Rackless" safety design with rounded edges eliminates protruding mechanical rails, prioritizing user safety. Regarding illumination, it features a 3W LED Kohler system, which includes a removable light housing that greatly facilitates maintenance and bulb replacement, ensuring a cool, white, and uniform light across the entire field of view.

Frequently Asked Questions (FAQ)

• What advantages does the Infinity optical system offer? It provides images free from chromatic aberrations with significantly higher contrast, while allowing the insertion of accessories into the optical path without losing image quality.
• Is the LED illumination maintenance difficult? No, this model features a removable light housing design that allows for quick and easy access to the LED without needing to disassemble the microscope base.
• Can a digital camera be connected? Yes, the trinocular versions include or support 0.5x or 1.0x C-Mount adapters for high-resolution image and video capture.

Advantages and Disadvantages

Advantages:

• Safety: Rounded edge stage with no protruding mechanical rack.
• Optical Quality: 22mm eyepieces provide a much wider field of view than standard models.
• Ergonomics: Coaxial coarse and fine adjustment with a safety limit screw to protect samples and objectives.

Disadvantages:

• Footprint: Requires sufficient desk space due to the large dimensions of the professional stage.
• Power: As a research-grade Kohler LED system, it requires a stable power connection to maintain light homogeneity.

Field Use and Recommendations

The YR06686 is optimized for use in hospitals, specialized clinics, and microbiology laboratories. It is highly recommended for prolonged observations where eye fatigue must be minimized. For optimal performance, it is advised to correctly center the Abbe NA 1.25 condenser using the integrated iris diaphragm, adjusting the aperture according to the objective in use (from 4X to 100X).
